78500 - Toro DFS Vac Collection System for 100 Series Z Master (SN: 230000001 - 230999999) (2003) HOPPER FRAME AND BAGGER MOUNT FRAME ASSEMBLY Parts Diagram

DFS Vac Collection System for 100 Series Z Master

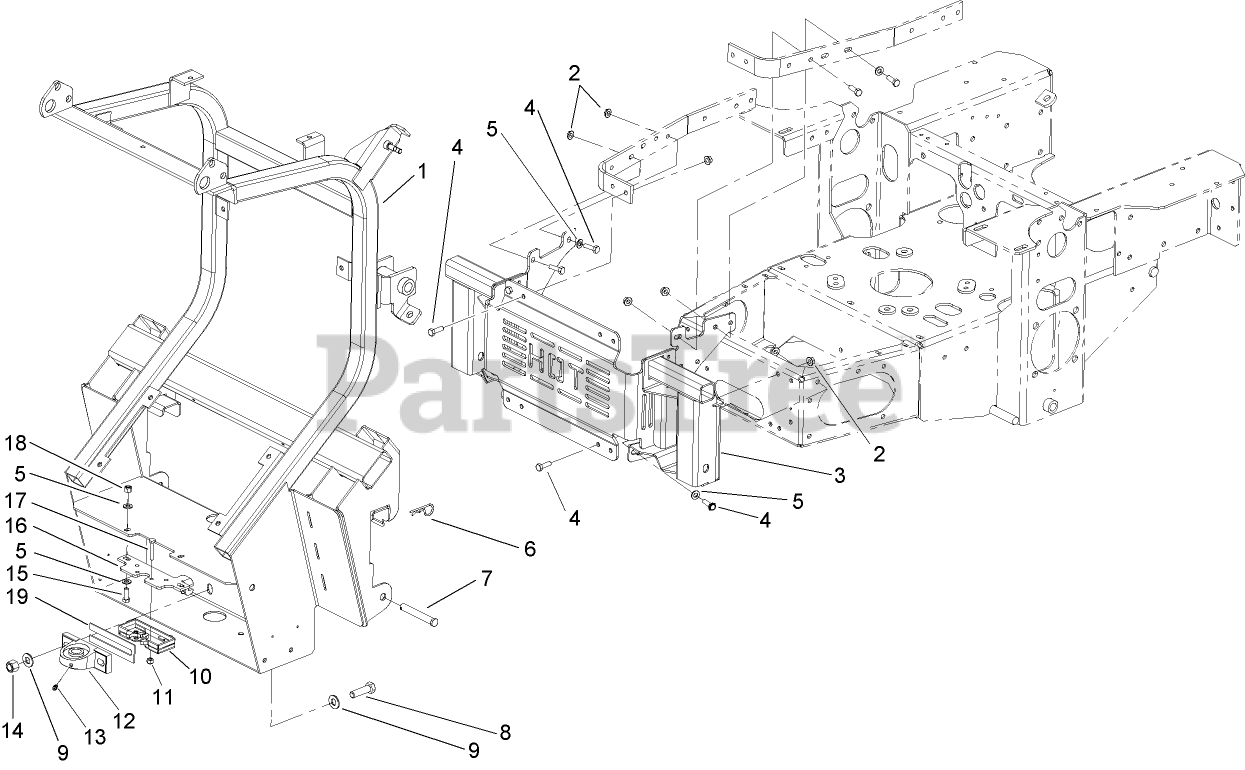

HOPPER FRAME AND BAGGER MOUNT FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 106-7135-03

Frame ASM

$

$

Not available

2

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

3

Toro 106-7103-03

Bagger Mount ASM

$790.99

$

Usually ships in 3-6 days

0

4

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

5

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

6

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

7

Toro 283-69

PIN-CLEVIS

$10.99

$

In Stock, only 3 left!

0

8

Toro 325-7

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

9

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 105-9663

LATCH-ROTOR

$278.99

$

Usually ships in 3-6 days

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 106-7119

BEARING

$118.99

$

Usually ships in 3-6 days

0

13

Toro 302-55

FITTING-GREASE

$3.49

$

Usually ships in 3-6 days

0

14

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

15

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Toro 105-8237

BRACKET-LATCH

$78.99

$

Usually ships in 3-6 days

0

17

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

18

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Toro 106-8964-03

SPACER-BEARING

$19.99

$

Usually ships in 3-6 days

0
