78499 - Toro 62" SFS Mower Finishing Kit for Z200 Triple Soft Bagger 62IN FINISHING KIT ASSEMBLY Parts Diagram

62" SFS Mower Finishing Kit for Z200 Triple Soft Bagger

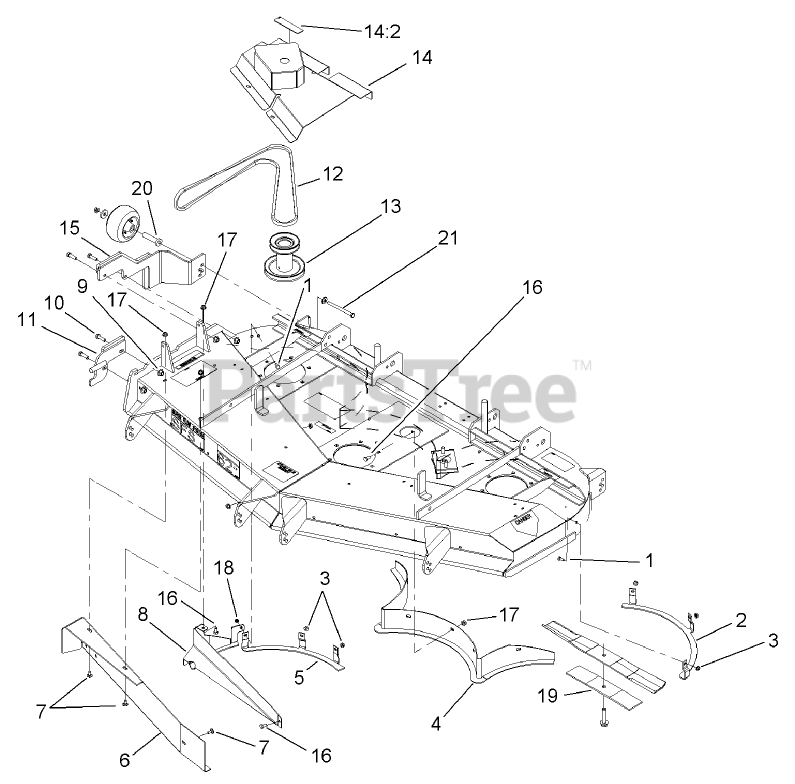

62IN FINISHING KIT ASSEMBLY Parts Diagram

  • Title
1

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

2

Toro 105-5883-01

PLATE-SHELF, LEFT REAR

$

$

Not available

3

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, only 2 left!

0

4

Toro 105-8230-01

BOTTOM BAFFLE ASM

$

$

Not available

5

Toro 105-5884-01

PLATE-SHELF, RIGHT REAR

$204.99

$

Usually ships in 3-6 days

0

6

Toro 105-5535-01

BAFFLE-FRONT

$

$

Not available

7

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 5

0

8

Toro 105-6162-01

Rear Baffle ASM

$

$

Not available

9

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

10

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Toro 106-3382-03

FRONT HINGE ASM

$

$

Not available

12

Toro 106-2086

Belt-V

$155.99

$

Usually ships in 3-6 days

0

13

Toro 106-3386

DOUBLE PULLEY ASM

$

$

Not available

14

Toro 106-2068

COVER ASM W/ DECAL

$301.99

$

Usually ships in 3-6 days

0

14:2

Toro 67-5360

DECAL-DANGER

$15.99

$

In Stock, only 1 left!

0

15

Toro 106-3440

Rear Hinge ASM W/ Fitting

$

$

Not available

15:2

Toro 302-5

FITTING-GREASE

Note: Not illustrated

$3.49

$

In Stock, Qty 20+

0

16

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

17

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 12

0

18

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Toro 105-6198-03

STIFFENER-BLADE

$

$

Not available

20

Toro 1-603602

BUSHING,ROLLER

$23.99

$

In Stock, only 3 left!

0

21

Toro 323-17

SCREW-HH

$5.99

$

In Stock, only 2 left!

0

22

Toro 106-9745-03

Plate-Template

Note: Not illustrated

$

$

Not available
