78498 - Toro 52" Twin Soft Bagger, 200 and 500 Series Z Master (SN: 250000152 - 250000213) (2005) BAG SUPPORT AND HOOD ASSEMBLY Parts Diagram

52" Twin Soft Bagger, 200 and 500 Series Z Master

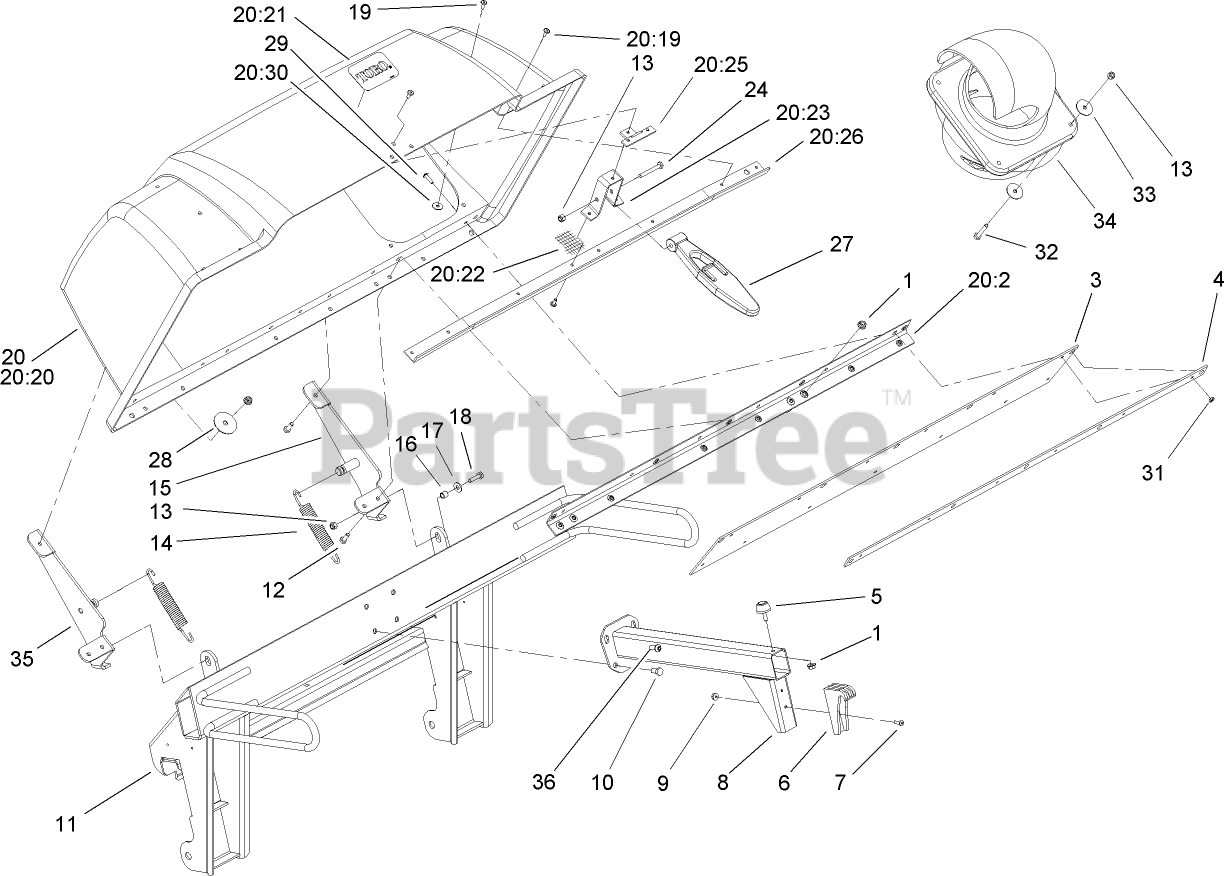

BAG SUPPORT AND HOOD ASSEMBLY Parts Diagram

  • Title

1

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

3

Toro 103-1346

SEAL-HOOD

$86.99

$

Usually ships in 3-6 days

0

4

Toro 1-653528-03

PLATE-BACKING

$72.99

$

Usually ships in 3-6 days

0

5

Toro 1-523420

BUMPER

$15.99

$

Usually ships in 3-6 days

0

6

Toro 1-653404

Catch

$39.99

$

In Stock, only 4 left!

0

7

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

8

Toro 103-5124-03

SUPPORT-BAG

$175.99

$

Usually ships in 3-6 days

0

9

Toro 3290-148

NUT-HF

$0.99

$

In Stock, Qty 8

0

10

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Toro 103-4741-03

UPRIGHT-BAGGER

$758.99

$

Usually ships in 3-6 days

0

12

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro 106-3424

Spring-Extension

$

$

Not available

15

Toro 103-0825-03

HINGE-RH

$112.99

$

Usually ships in 3-6 days

0

16

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

17

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

18

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 10

0

19

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

20

Toro 107-4089

HOOD ASM
(Superseded to 112-2316)

$781.99

$

Usually ships in 3-6 days

0

20:2

Toro 1-653397-03

STIFFENER-BAGGER, TOP

$87.99

$

Usually ships in 3-6 days

0

20:19

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

20:20

Toro 107-4088

TOP-BAGGER

$349.99

$

Usually ships in 3-6 days

0

20:21

Toro 107-4084

DECAL

$112.99

$

Usually ships in 3-6 days

0

20:22

Toro 114967

SCREEN-BAGGER

$41.99

$

Usually ships in 3-6 days

0

20:23

Toro 1-653519

ANCHOR-LATCH

$94.99

$

Usually ships in 3-6 days

0

20:25

Toro 1-653535

REINFORCEMENT-LATCH

$52.99

$

Usually ships in 3-6 days

0

20:26

Toro 1-653400-03

SUPPORT-SCREEN

$93.99

$

Usually ships in 3-6 days

0

20:30

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

0

24

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 1-653403

LATCH

$85.99

$

In Stock, only 2 left!

0

28

Toro 1-653036

WASHER

$5.49

$

In Stock, only 1 left!

0

29

Toro 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

31

Toro 32153-1

NUT-LOCK, SIDE

$3.99

$

In Stock, only 1 left!

0

32

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

33

Toro 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, Qty 11

0

34

Toro 106-3443

ADAPTER-TUBE, UPPER

$

$

Not available

35

Toro 103-0826-03

HINGE-LH

$112.99

$

Usually ships in 3-6 days

0

36

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 12

0
