78492 - Toro Boot and Tube Kit for 100 Series Z Master 44" Mowers BOOT AND TUBE ASSEMBLY Parts Diagram

Boot and Tube Kit for 100 Series Z Master 44" Mowers

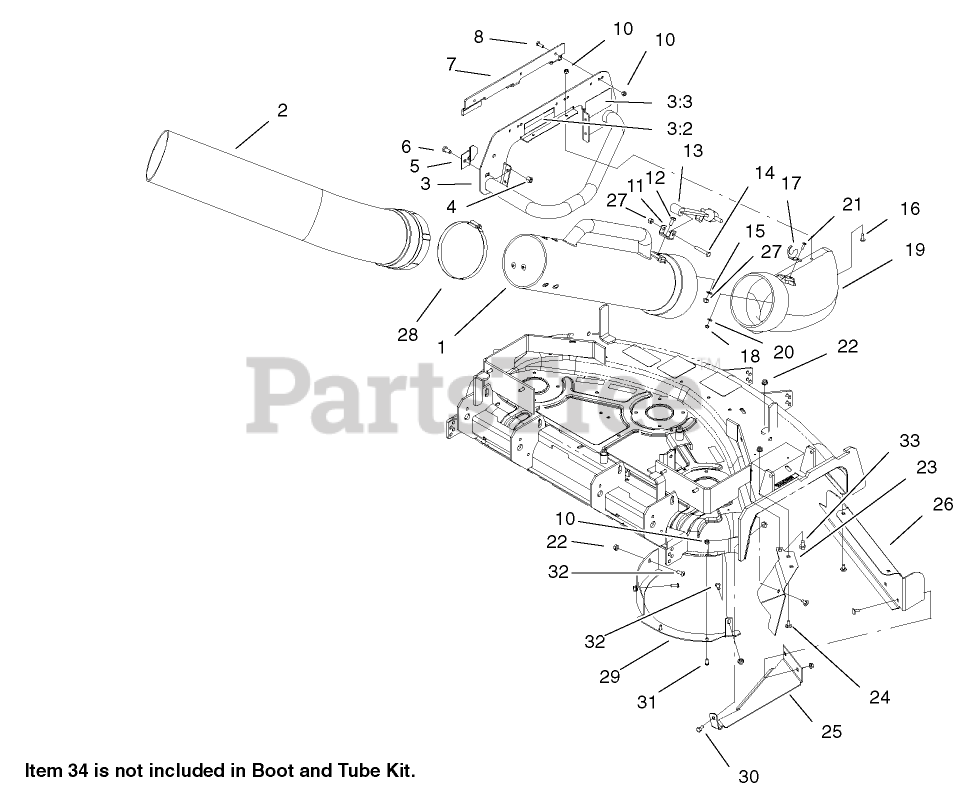

BOOT AND TUBE ASSEMBLY Parts Diagram

  • Title

1

Toro 105-5553

TUBE-STRAIGHT

$

$

Not available

2

Toro 105-5554

TUBE-ELBOW

$461.99

$

Usually ships in 3-6 days

0

3

Toro 106-5859

Mounting Plate ASM

$479.99

$

Usually ships in 3-6 days

0

3:2

Toro 106-5856

Decal-Caution

$

$

Not available

3:3

Toro 106-5855

DECAL-HAZARD

$

$

Not available

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 104-8575

Bracket-Clamp

$33.99

$

Usually ships in 3-6 days

0

6

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 14

0

7

Toro 104-8573-03

BRACKET-MOUNTING

$100.99

$

Usually ships in 3-6 days

0

8

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 105-9707

BRACKET-ANCHOR

$

$

Not available

12

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 105-8155

HOLDDOWN-HOOD

$86.99

$

Usually ships in 3-6 days

0

14

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 9114604

SCREW-HEAD, TRUSS

$1.49

$

Usually ships in 3-6 days

0

17

Toro 105-9709

BRACKET-HOOD

$34.99

$

Usually ships in 3-6 days

0

18

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

19

Toro 105-5531

BOOT

$337.99

$

Usually ships in 3-6 days

0

20

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

0

21

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

22

Toro 32128-25

NUT-HF

$3.99

$

In Stock, Qty 7

0

23

Toro 105-5550-01

BAFFLE-REAR

$

$

Not available

24

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

25

Toro 106-3303-01

BAFFLE-CROSS

$

$

Not available

26

Toro 105-5533-01

BAFFLE-FRONT

$178.99

$

Usually ships in 3-6 days

0

27

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

28

Toro 106-3318

CLAMP-HOSE

$68.99

$

Usually ships in 3-6 days

0

29

Toro 106-3347-01

RH BOTTOM BAFFLE ASM

$

$

Not available

30

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

31

Toro 3274-69

SCREW-HSBH

$1.49

$

In Stock, Qty 6

0

32

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 12

0

33

Toro 32144-69

SCREW-HWHTF

$2.49

$

Usually ships in 3-6 days

0

34

Toro 55-4940-03

BLADE-LIFT, HIGH

Note: Not illustrated

$36.99

$

In Stock, only 1 left!

0
