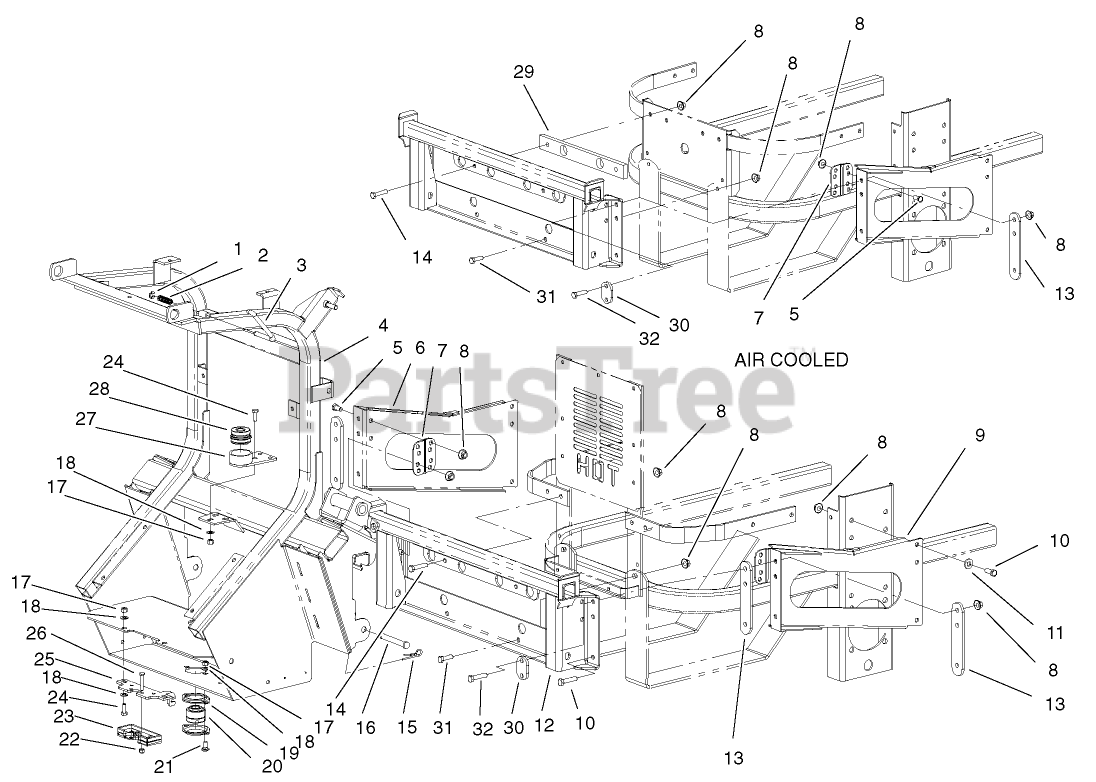

78491 - Toro Bagger for 200 Series Z Master (SN: 220000001 - 220999999) (2002) FRAME ASSEMBLY Parts Diagram

Bagger for 200 Series Z Master

FRAME ASSEMBLY Parts Diagram

  • Title
1

$0.99

$

Usually ships in 3-6 days

0

2

Toro 105-9715

SPRING

$

$

Not available

3

$

$

Not available

4

Toro 105-8200-03

FRAME ASM

$

$

Not available

5

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

6

Toro 106-3302-03

LH FRAME BRACKET ASM

$

$

Not available

7

Toro 105-9748-03

BRACKET-STIFFENER

$

$

Not available

8

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

9

Toro 106-3301-03

RH FRAME BRACKET ASM

$

$

Not available

10

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

12

Toro 105-9719-03

BAGGER MOUNT ASM

$662.99

$

Usually ships in 3-6 days

0

13

Toro 105-9744-03

SPACER-FRAME

$31.99

$

Usually ships in 3-6 days

0

14

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

16

Toro 283-69

PIN-CLEVIS

$10.99

$

In Stock, only 3 left!

0

17

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 105-9714

FLANGE-BEARING

$10.99

$

In Stock, only 3 left!

0

20

Toro 105-9669

BEARING-SPHERICAL

$

$

Not available

21

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

22

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

23

Toro 105-9663

LATCH-ROTOR

$278.99

$

Usually ships in 3-6 days

0

24

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 105-8237

BRACKET-LATCH

$78.99

$

Usually ships in 3-6 days

0

26

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

27

Toro 105-9697-03

Bearing Flange ASM

$227.99

$

Usually ships in 3-6 days

0

28

Toro 105-9670

BEARING-CYLINDRICAL

$262.99

$

Usually ships in 3-6 days

0

29

Toro 105-9730-03

SPACER-FRAME, BAGGER

$

$

Not available

30

Toro 106-3320-03

SPACER-FRAME, SHORT

$20.99

$

Usually ships in 3-6 days

0

31

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

32

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
