78490 - Toro Bagger for 100 Series Z Master (SN: 220000501 - 220999999) (2002) HOPPER FRAME ASSEMBLY Parts Diagram

Bagger for 100 Series Z Master

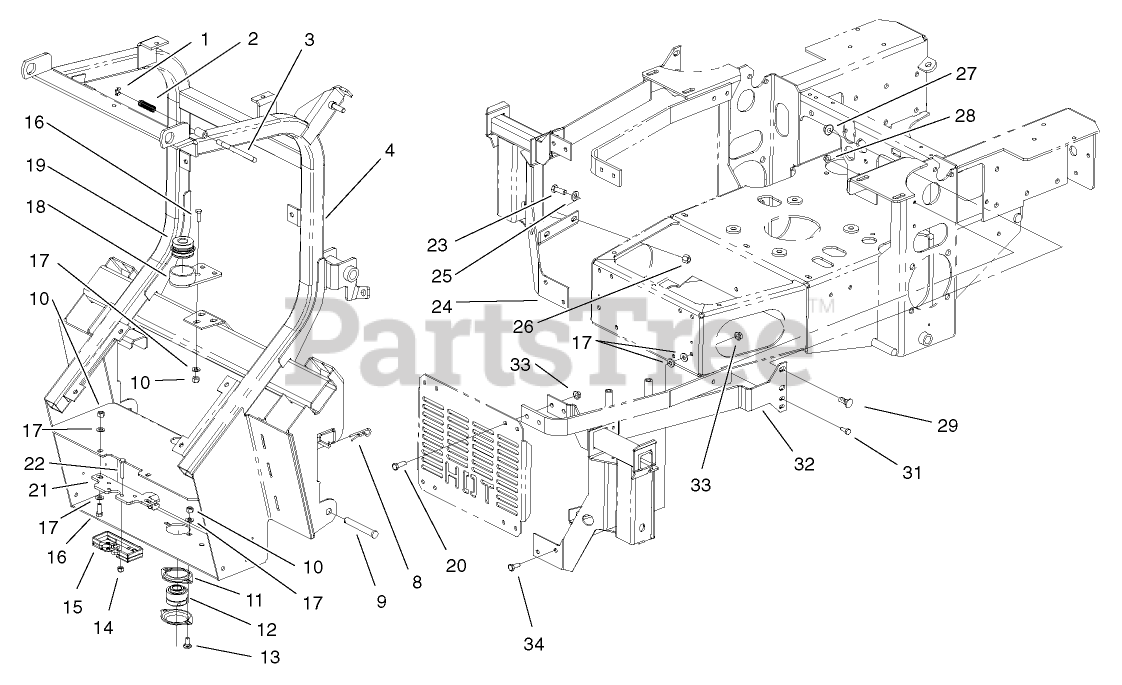

HOPPER FRAME ASSEMBLY Parts Diagram

  • Title
1

$0.99

$

Usually ships in 3-6 days

0

2

Toro 105-9715

SPRING

$

$

Not available

3

$

$

Not available

4

Toro 105-9650-03

FRAME ASM

$

$

Not available

8

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

9

Toro 283-69

PIN-CLEVIS

$10.99

$

In Stock, only 3 left!

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, only 2 left!

0

11

Toro 105-9714

FLANGE-BEARING

$10.99

$

In Stock, only 3 left!

0

12

Toro 105-9669

BEARING-SPHERICAL

$

$

Not available

13

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

14

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

15

Toro 105-9663

LATCH-ROTOR

$278.99

$

Usually ships in 3-6 days

0

16

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

18

Toro 105-9697-03

Bearing Flange ASM

$227.99

$

Usually ships in 3-6 days

0

19

Toro 105-9670

BEARING-CYLINDRICAL

$262.99

$

Usually ships in 3-6 days

0

20

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 105-8237

BRACKET-LATCH

$78.99

$

Usually ships in 3-6 days

0

22

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

23

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

24

Toro 106-3332-03

LH BAGGER MOUNT ASM

$

$

Not available

25

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

26

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 17

0

27

Toro 32128-19

NUT-HF

$1.49

$

In Stock, Qty 20+

0

28

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

29

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

31

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 106-3331-03

RH BAGGER MOUNT ASM

$

$

Not available

33

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

34

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0
