78490 - Toro Bagger for 100 Series Z Master (SN: 220000501 - 220999999) (2002) DUMP LEVER ASSEMBLY Parts Diagram

Bagger for 100 Series Z Master

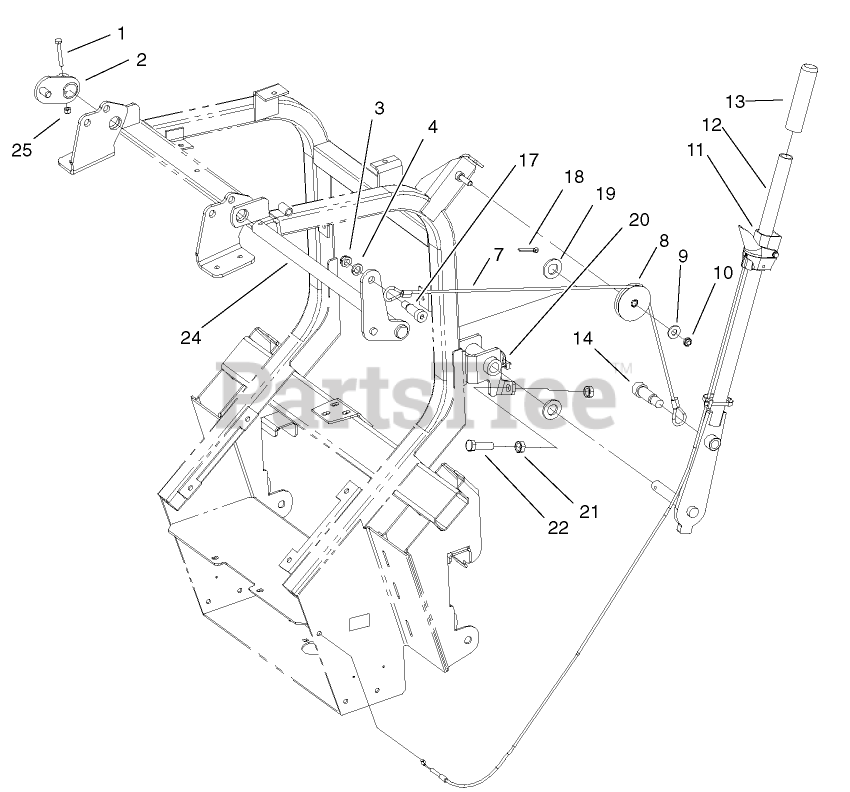

DUMP LEVER ASSEMBLY Parts Diagram

  • Title
1

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

2

Toro 105-8218-03

SHORT LINKAGE ASM

$

$

Not available

3

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

4

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

7

Toro 105-9704

CABLE-DOOR

$

$

Not available

8

Toro 5-2653

PULLEY ASM

$42.99

$

Usually ships in 3-6 days

0

9

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

10

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

11

Toro 105-8186

LATCH-CABLE, DUMP

$143.99

$

Usually ships in 3-6 days

0

12

Toro 105-9662-03

DUMP ARM ASM

$

$

Not available

13

Toro 104-9838

GRIP-FOAM

$5.99

$

In Stock, Qty 16

0

14

Toro 105-9668

SCREW-SHOULDER

$

$

Not available

17

Toro 105-9667

SCREW-SHOULDER

$

$

Not available

18

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

19

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

20

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

21

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

22

Toro 325-7

SCREW-HH

$1.99

$

In Stock, Qty 5

0

24

Toro 105-8219-03

LONG LINKAGE ASM

$

$

Not available

25

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0
