78490 - Toro Bagger for 100 Series Z Master (SN: 220000001 - 220000500) (2002) DOOR ASSEMBLY Parts Diagram

Bagger for 100 Series Z Master

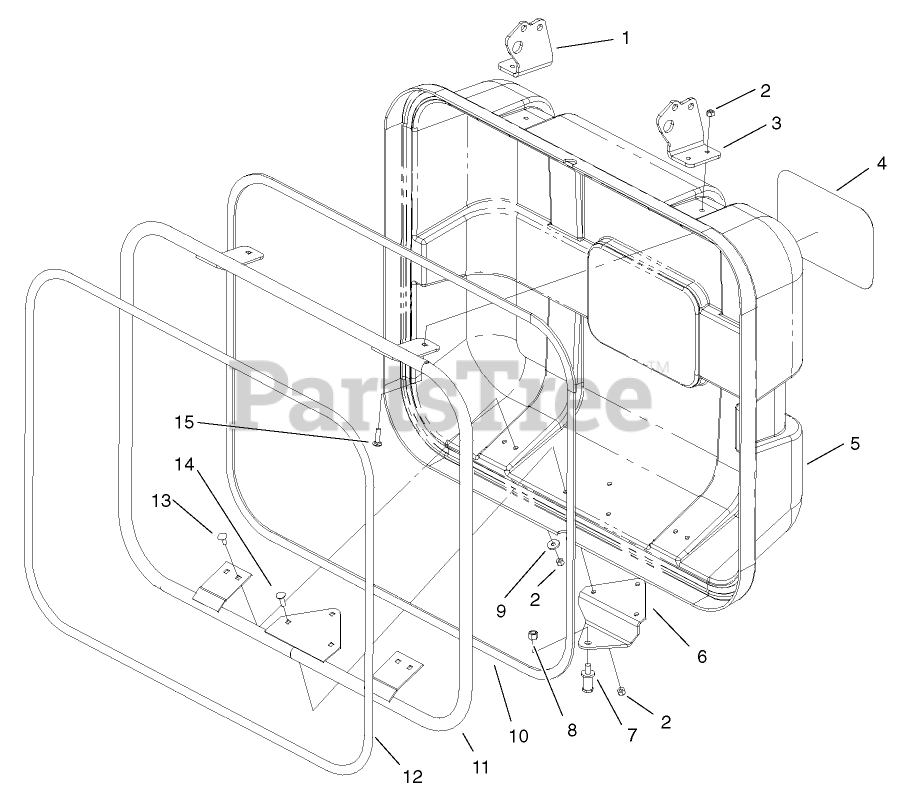

DOOR ASSEMBLY Parts Diagram

  • Title
1

Toro 105-8248-03

Bracket-Hinge, RH

$

$

Not available

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 105-8249-03

Bracket-Hinge, LH

$

$

Not available

4

Toro 67-7310

DECAL

$64.99

$

Usually ships in 3-6 days

0

5

Toro 105-5503

DOOR-100 SERIES

$

$

Not available

6

Toro 105-8238-03

BRACKET-LATCH, DOOR

$90.99

$

Usually ships in 3-6 days

0

7

Toro 105-9664

BOLT-STRIKER

$54.99

$

Usually ships in 3-6 days

0

8

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

9

Toro 3256-82

WASHER-FLAT

$0.99

$

In Stock, Qty 7

0

10

Toro 105-8198

SEAL-HOPPER

$74.99

$

Usually ships in 3-6 days

0

11

Toro 105-5565-03

SMALL DOOR FRAME ASM

$

$

Not available

12

Toro 105-8199

SEAL-HOPPER, ROUND

$157.99

$

Usually ships in 3-6 days

0

13

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

14

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

15

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0
