78487 - Toro 52" Blower and Drive Kit for E-Z Vac Standard Bagger (SN: 400000000 - 999999999) BLOWER AND DRIVE ASSEMBLY Parts Diagram

52" Blower and Drive Kit for E-Z Vac Standard Bagger

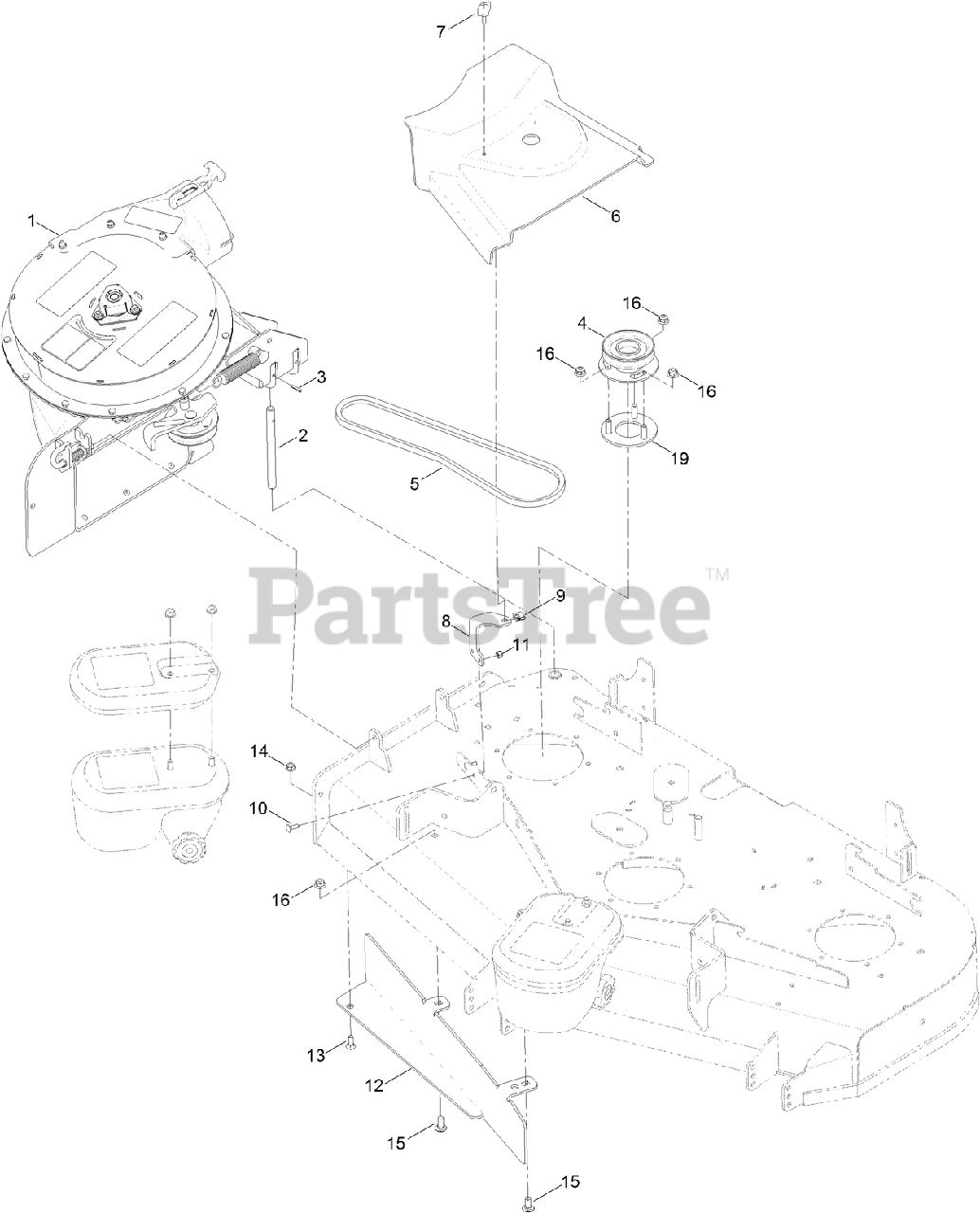

BLOWER AND DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 126-9788

BLOWER ASM

$2865.99

$

Usually ships in 3-6 days

0

2

Toro 1-353050

SHAFT-CATCHER, GRASS

$17.99

$

In Stock, only 2 left!

0

3

Toro 1-806323

PIN-ROLL

$1.49

$

In Stock, only 3 left!

0

4

Toro 112-8669-03

PULLEY-BLOWER

$156.99

$

Usually ships in 3-6 days

0

5

Toro 112-2344

BELT-V

$28.99

$

Usually ships in 3-6 days

0

6

Toro 117-8643

COVER-BELT

$225.99

$

Usually ships in 3-6 days

0

7

Toro 98-8332

KNOB

$5.49

$

In Stock, Qty 16

0

8

Toro 115-3637-01

BRACKET-COVER, BELT

$26.99

$

Usually ships in 3-6 days

0

9

Toro 609900

NUT-SPEED

$9.49

$

Usually ships in 3-6 days

0

10

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

12

Toro 135-0153-01

BAFFLE-BAGGER

$88.99

$

Usually ships in 3-6 days

0

13

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

15

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

16

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

19

Toro 121-3207

MOUNT-PULLEY

$62.99

$

Usually ships in 3-6 days

0
