78481 - Toro E-Z Vac Standard Bagger for Titan HD Mower (SN: 400000000 - 407089999) Bagger and Hood Assembly Parts Diagram

E-Z Vac Standard Bagger for Titan HD Mower

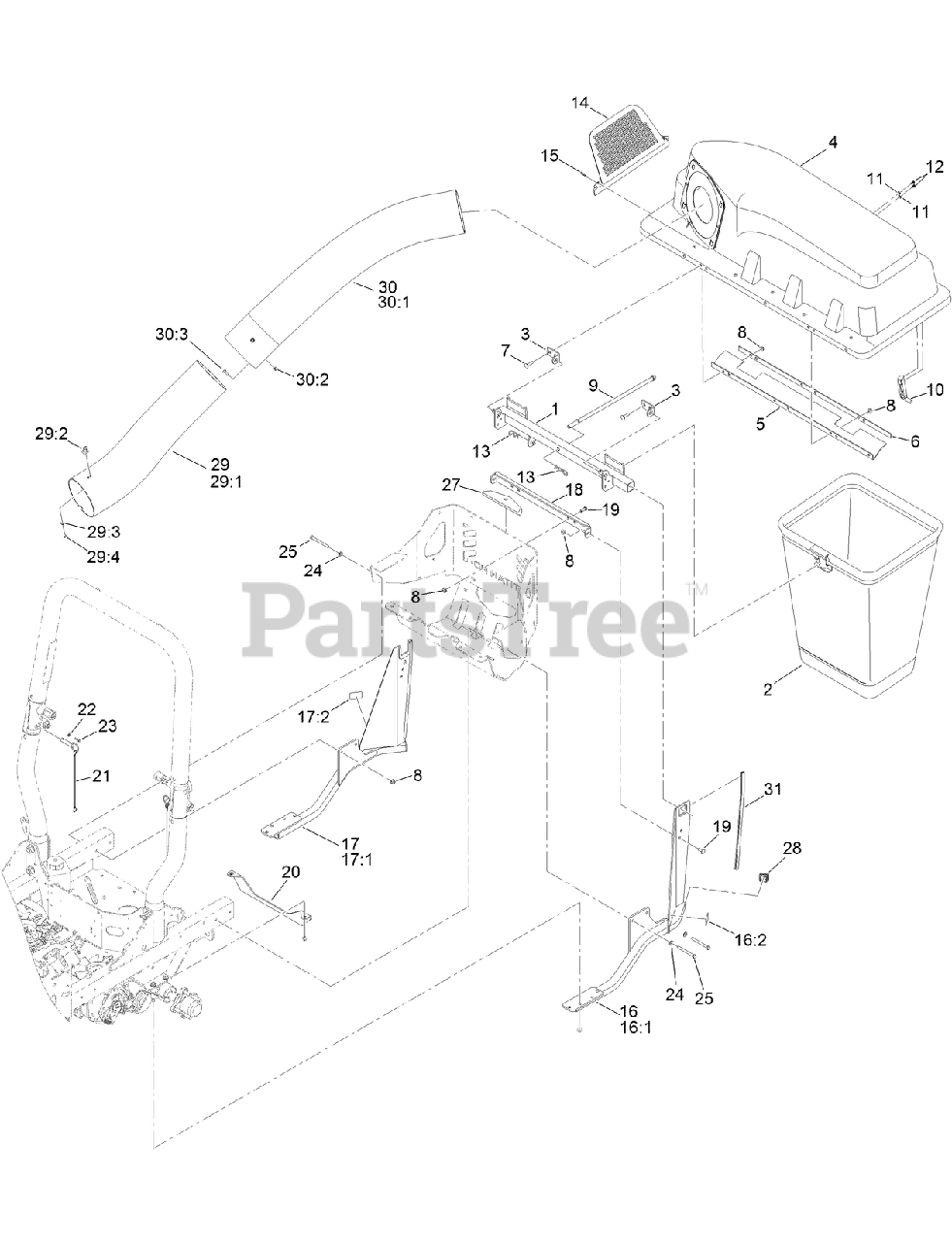

Bagger and Hood Assembly Parts Diagram

  • Title

1

Toro 116-4783-03

FRAME PIVOT ASM

$176.99

$

Usually ships in 3-6 days

0

2

Toro 116-0754

BAG AND FRAME ASM

$191.99

$

Usually ships in 3-6 days

0

3

Toro 112-3987

BRACKET-PIVOT, HOPPER

$8.49

$

Usually ships in 3-6 days

0

4

Toro 121-3215

BAGGER HOOD ASM

$543.99

$

Usually ships in 3-6 days

0

5

Toro 116-4126

SEAL

$33.99

$

Usually ships in 3-6 days

0

6

Toro 116-4127-03

PLATE-BACKING

$22.99

$

Usually ships in 3-6 days

0

7

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

8

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

9

Toro 116-6491

ROD-HOLD DOWN, HOOD

$58.99

$

Usually ships in 3-6 days

0

10

Toro 116-4992

LATCH-RUBBER

$50.99

$

In Stock, only 1 left!

0

11

Toro 3256-77

WASHER-FLAT

$2.49

$

In Stock, only 2 left!

0

12

Toro 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, Qty 8

0

13

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

14

Toro 112-3993

SCREEN-BAGGER

$30.99

$

In Stock, only 1 left!

0

15

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

16

Toro 126-9662

RH BAGGER SUPPORT ASM

$248.99

$

Usually ships in 3-6 days

0

16:1

Toro 126-9200-03

SUPPORT-BAGGER, RH

$

$

Not available

16:2

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

17

Toro 126-9663

LH BAGGER SUPPORT ASM

$248.99

$

Usually ships in 3-6 days

0

17:1

Toro 126-9201-03

SUPPORT-BAGGER, LH

$

$

Not available

17:2

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 3 left!

0

18

Toro 140-9504-03

ANGLE - SUPPORT, BAGGER

$47.99

$

Usually ships in 3-6 days

0

19

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 126-5672-03

SUPPORT-TRANSMISSION

$72.99

$

Usually ships in 3-6 days

0

21

Toro 106-9951

HITCH PIN ASM

$51.99

$

In Stock, only 2 left!

0

22

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 32104-4

SCREW

$1.49

$

Usually ships in 3-6 days

0

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 126-8742

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

27

Toro 126-8299

COVER-HITCH

$7.99

$

Usually ships in 3-6 days

0

28

Toro 126-9159

PLUG

$5.49

$

Usually ships in 3-6 days

0

29

Toro 116-4128

LOWER TUBE ASM

$267.99

$

Usually ships in 3-6 days

0

29:1

Toro 116-4495

TUBE-LOWER

$131.99

$

Usually ships in 3-6 days

0

29:2

Toro 103-4081

LATCH-KEEPER

Note: Kit No. 103-4188 - Contains catch, rubber latch, and mounting hardware

$14.99

$

Usually ships in 3-6 days

0

29:3

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29:4

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

30

Toro 116-4825

UPPER TUBE ASM

$277.99

$

Usually ships in 3-6 days

0

30:1

Toro 116-4496

TUBE-UPPER

$273.99

$

Usually ships in 3-6 days

0

30:2

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30:3

Toro 1-803076

SCREW

$1.49

$

Usually ships in 3-6 days

0

31

Toro 126-9923

STRIP-TRIM

$7.99

$

Usually ships in 0 days

0
