78478 - Toro 60" Side-Discharge Mower Deck (SN: 240000001 - 240999999) (2004) FOOTREST ASSEMBLY Parts Diagram

60" Side-Discharge Mower Deck

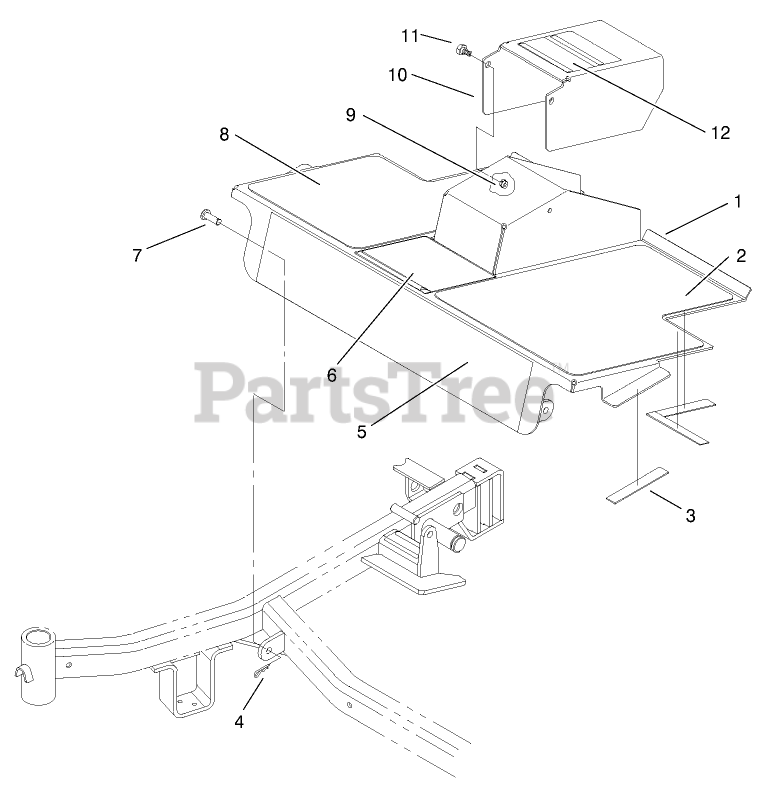

FOOTREST ASSEMBLY Parts Diagram

  • Title
1

Toro 94-9576

FOOTREST ASM

$

$

Not available

2

Toro 98-1303

PAD-FOOTREST, LH

$

$

Not available

3

Toro 94-9566

PAD-FOOTREST

$6.49

$

Usually ships in 3-6 days

0

4

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

5

Toro 95-6400

DECAL-TORO ZMASTER

$

$

Not available

6

Toro 98-1304

DECAL-DANGER

$

$

Not available

7

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

8

Toro 98-1302

PAD-FOOTREST, RH

$

$

Not available

9

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

10

Toro 95-1975

COVER ASM-DRIVESHAFT

$

$

Not available

11

Toro 63-3410

SCREW-SHOULDER

$3.99

$

Usually ships in 3-6 days

0

12

Toro 98-1305

DECAL-FLOOR PLATE

$

$

Not available
