78478 - Toro 60" Side-Discharge Mower Deck (SN: 240000001 - 240999999) (2004) DECK PLATE, SPINDLE AND BLADE ASSEMBLY Parts Diagram

60" Side-Discharge Mower Deck

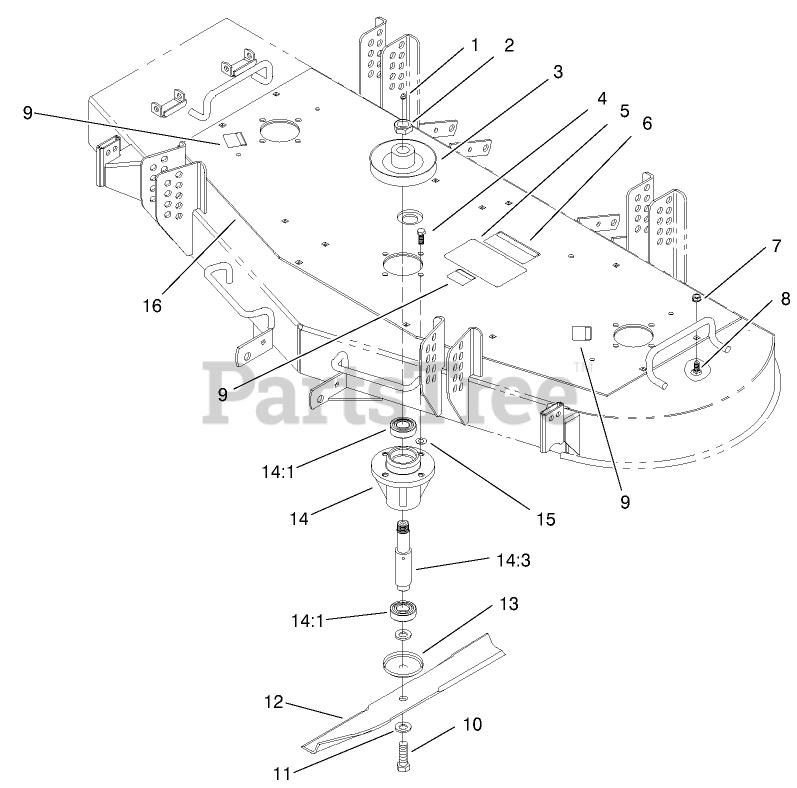

DECK PLATE, SPINDLE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

2

Toro 3296-60

NUT-LOCK, NI

$5.49

$

In Stock, Qty 9

0

3

Toro 94-9534

Pulley-Spindle

$

$

Currently unavailable

4

Toro 3235-22

SCREW-HH, LOCK

$2.99

$

In Stock, only 2 left!

0

5

Toro 94-9547

DECAL - BELT INSTALLATION

$

$

Not available

6

Toro 68-8340

DECAL-TORQUE

$21.99

$

In Stock, only 1 left!

0

7

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

8

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

9

Toro 88-8950

DECAL-WARNING

$

$

Not available

10

Toro 327-6

SCREW-HH

$13.99

$

In Stock, only 1 left!

0

11

Toro 920260

WASHER-SPECIAL

$2.49

$

In Stock, only 4 left!

0

12

Toro 112947

BLADE

$35.99

$

In Stock, only 1 left!

0

13

Toro 113512

CUP-SPINDLE

$

$

Not available

14

Toro 17-8359

Spindle Housing ASM

$

$

Currently unavailable

14:1

Toro 113514

BEARING-BALL

$21.99

$

In Stock, only 3 left!

0

14:3

Toro 94-2315

SHAFT - SPINDLE

$363.99

$

Usually ships in 3-6 days

0

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

16

Toro 98-4359-01

Plate-Top

$

$

Currently unavailable
