78478 - Toro 60" Side-Discharge Mower Deck (SN: 240000001 - 240999999) (2004) CARRIER FRAME ASSEMBLY Parts Diagram

60" Side-Discharge Mower Deck

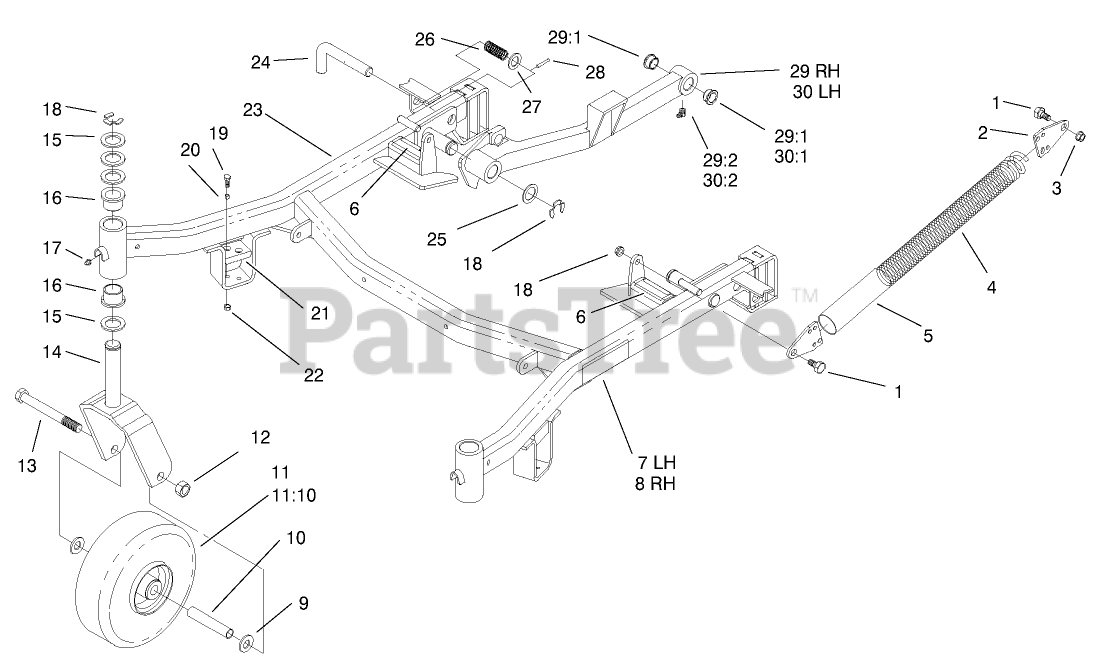

CARRIER FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 46-3380

BOLT-SHOULDER

$11.99

$

Usually ships in 3-6 days

0

2

Toro 94-4750

PLATE-END, SPRING

$

$

Not available

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 94-4664

SPRING-EXTENSION

$

$

Not available

5

Toro 94-9550

COVER-SPRING

$

$

Not available

6

Toro 55-4300

DECAL-WARNING

$13.99

$

Usually ships in 3-6 days

0

7

Toro 94-9586

DECAL-HOC, LEFT

$

$

Not available

8

Toro 94-9585

DECAL-HOC, RIGHT

$

$

Not available

9

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

10

Toro 98-1310

SPANNER

$

$

Not available

11

Toro 98-1312

WHEEL/TIRE ASM

$409.99

$

Usually ships in 3-6 days

0

11:10

$75.99

$

Usually ships in 3-6 days

0

12

Toro 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 15

0

13

Toro 327-24

SCREW-HH

$9.49

$

In Stock, only 3 left!

0

14

Toro 94-4633-01

FORK-CASTOR

$

$

Not available

15

Toro 3-6781

WASHER-THRUST

$3.49

$

In Stock, Qty 7

0

16

Toro 94-1291

BUSHING

$10.99

$

In Stock, Qty 11

0

17

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

18

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

19

Toro 32122-44

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

20

Toro 40-9520

SPACER

$0.99

$

Usually ships in 3-6 days

0

21

Toro 92-5417

CUSHION-RUBBER

$

$

Not available

22

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 94-9472-01

FRAME-CARRIER

$

$

Not available

24

Toro 98-1337

PIN - PIVOT

$

$

Not available

25

Toro 9202514

Washer
(Superseded to 920251)

$2.99

$

In Stock, only 2 left!

0

26

Toro 98-1339

SPRING-COMPRESSION

$6.49

$

Usually ships in 3-6 days

0

27

Toro 9202254

WASHER

$3.49

$

In Stock, only 2 left!

0

28

Toro 32121-79

PIN-ROLL

$13.99

$

Usually ships in 3-6 days

0

29

Toro 105-1646

RH PUSHARM ASM

$

$

Not available

29:1

Toro 27-9080

BEARING-FLANGE

$3.99

$

In Stock, Qty 6

0

29:2

Toro 302-60

FITTING-GREASE

$2.99

$

Usually ships in 3-6 days

0

30

Toro 105-1645

LH PUSHARM ASM

$

$

Not available

30:1

Toro 27-9080

BEARING-FLANGE

$3.99

$

In Stock, Qty 6

0

30:2

Toro 302-60

FITTING-GREASE

$2.99

$

Usually ships in 3-6 days

0
