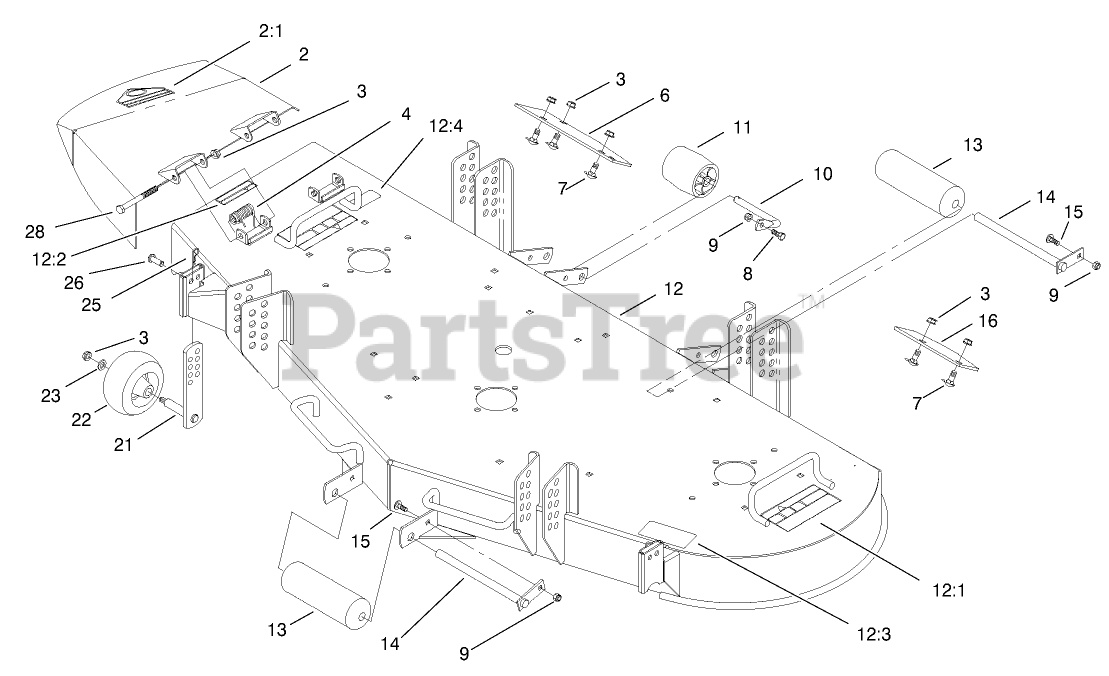

78478 - Toro 60" Side-Discharge Mower Deck (SN: 210000001 - 210999999) (2001) DECK ASSEMBLY Parts Diagram

60" Side-Discharge Mower Deck

DECK ASSEMBLY Parts Diagram

  • Title

2

Toro 94-9589

CHUTE ASM

$

$

Not available

2:1

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

6

Toro 94-9510-01

PLATE-WEAR, RH

$

$

Not available

7

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

8

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 110847

ROLLER-SHAFT

$28.99

$

In Stock, Qty 5

0

11

Toro 108798

Roller
(Superseded to 94-1599)

$13.99

$

In Stock, Qty 16

0

12

Toro 98-4364

DECK ASM

$6036.99

$

Usually ships in 3-6 days

0

12:1

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 3 left!

0

12:2

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

12:3

Toro 68-3380

DECAL - WHEEL ADJUSTMENT

$

$

Not available

12:4

Toro 105-2625

DECAL-STD, SAFETY

$

$

Not available

13

Toro 113349

ROLLER-ANTI SCALP

$78.99

$

In Stock, only 2 left!

0

14

Toro 113603

ROLLER-SHAFT

$46.99

$

Usually ships in 3-6 days

0

15

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

16

Toro 79-1290-01

PLATE-WEAR, LH

$

$

Not available

21

Toro 68-2350

GAGE-WHEEL

$135.99

$

Usually ships in 3-6 days

0

22

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 20+

0

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, Qty 5

0

26

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

28

Toro 323-42

SCREW-HH
(Superseded to 325-14)

$4.99

$

Usually ships in 3-6 days

0
