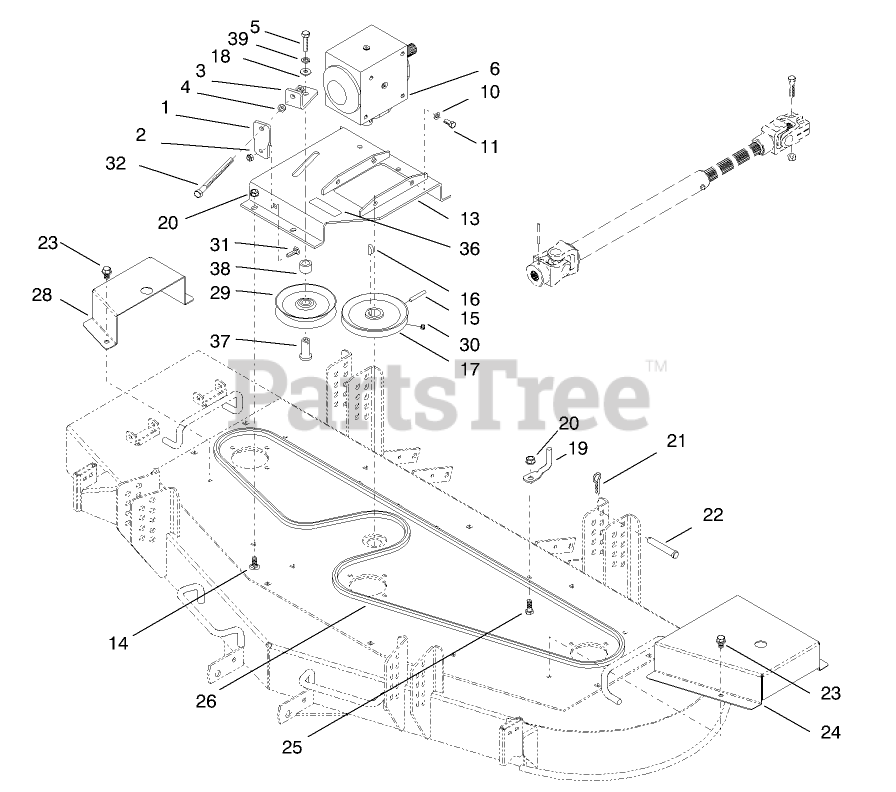

78478 - Toro 60" Side-Discharge Mower Deck (SN: 089000001 - 089000119) (1998) DRIVE & IDLER ASM Parts Diagram

60" Side-Discharge Mower Deck

DRIVE & IDLER ASM Parts Diagram

  • Title
1

Toro 94-9570

Plate-Tensioner
(Superseded to 94-9570-01)

$

$

Not available

2

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Toro 94-9351

Bracket-Tensioner
(Superseded to 94-9351-01)

$

$

Not available

4

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

5

Toro 323-43

SCREW-HH
(Superseded to 3251-12)

$0.99

$

Usually ships in 3-6 days

0

6

Toro 94-4686

Gearbox ASM
(Superseded to 100-5846)

$2945.99

$

Usually ships in 3-6 days

0

10

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 17

0

11

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

13

Toro 98-4354

Gearbox Plate ASM
(Superseded to 98-4354-01)

$

$

Not available

14

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

15

Toro 32121-32

PIN-ROLL

$1.49

$

In Stock, Qty 16

0

16

$6.99

$

Usually ships in 3-6 days

0

17

Toro 94-9535

PULLEY-OUTPUT

$142.99

$

Usually ships in 3-6 days

0

18

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 63-1690

BRACKET-GUIDE, IDLER

$

$

Not available

20

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

21

Toro 3290-355

PIN-HAIR

$2.49

$

In Stock, Qty 20+

0

22

Toro 283-55

PIN-CLEVIS

$11.99

$

In Stock, Qty 5

0

23

Toro 32144-69

SCREW-HWHTF

$2.49

$

Usually ships in 3-6 days

0

24

Toro 94-9512

Cover-Deck LH
(Superseded to 94-9512-01)

$

$

Not available

25

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

26

Toro 94-9530

V-BELT, HEX

$205.99

$

Usually ships in 3-6 days

0

28

Toro 94-9513

Cover-Deck RH
(Superseded to 94-9513-01)

$

$

Not available

29

Toro 63-1540

Pulley-Idler
(Superseded to 63-1540-03)

$67.99

$

In Stock, only 3 left!

0

30

Toro 3247-2

SCREW-SET, HSH

$4.49

$

Usually ships in 3-6 days

0

31

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, only 4 left!

0

32

Toro 94-9549

SCREW-HH

$

$

Not available

36

Toro 70-2560

DECAL-OIL
(Superseded to 93-6697)

$15.99

$

Usually ships in 3-6 days

0

37

Toro 94-9492

STUD - IDLER PULLEY

$

$

Not available

38

Toro 94-9569

SPACER

$

$

Not available

39

Toro 3253-5

WASHER-LOCK

$0.99

$

In Stock, Qty 17

0
