78478 - Toro 60" Side-Discharge Mower Deck (SN: 079000400 - 079999999) (1997) GEAR BOX ASSEMBLY NO.94-4686 Parts Diagram

60" Side-Discharge Mower Deck

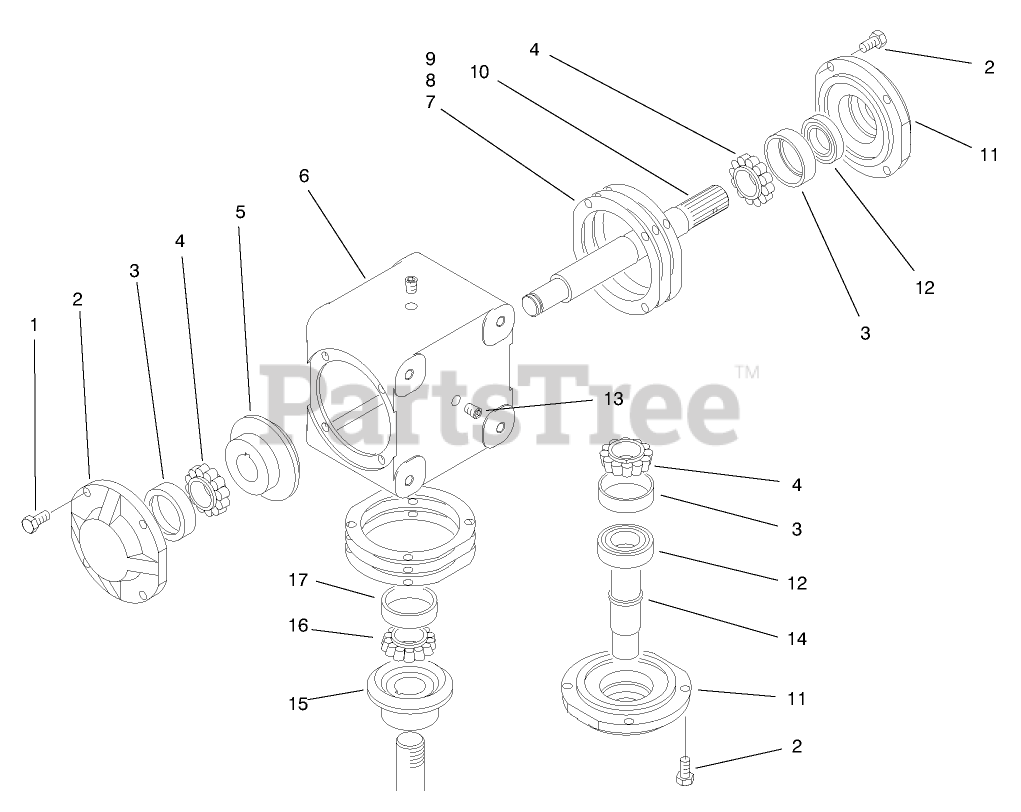

GEAR BOX ASSEMBLY NO.94-4686 Parts Diagram

  • Title
1

Toro 98-1341

SCREW

$

$

Not available

2

$

$

Not available

3

Toro 62-3340

Cup
(Superseded to 254-72)

$10.99

$

In Stock, Qty 20+

0

4

Toro 98-1343

BEARING - CONE

$

$

Not available

5

Toro 98-1348

GEAR LH

$

$

Not available

6

Toro 98-1340

HOUSING

$

$

Not available

7

Toro 62-3420

GASKET

$13.99

$

In Stock, only 2 left!

0

8

Toro 62-3430

GASKET

$7.49

$

Usually ships in 3-6 days

0

9

Toro 62-3440

GASKET

$

$

Not available

10

Toro 98-1347

SHAFT

$

$

Not available

11

Toro 98-1346

Cap
(Superseded to 62-3410)

$

$

Not available

12

Toro 62-3400

Seal
(Superseded to 253-118)

$19.99

$

In Stock, Qty 20+

0

13

Toro 62-3490

PLUG (OBS, C/R TO 281-10)
(Superseded to 281-10)

$18.99

$

Usually ships in 3-6 days

0

14

Toro 98-1345

SHAFT

$

$

Not available

15

Toro 98-1344

GEAR RH
(Superseded to 98-1961)

$866.99

$

Usually ships in 3-6 days

0

16

Toro 63-3370

Bearing Cone

$

$

Currently unavailable

17

Toro 62-3360

Bearing Cup
(Superseded to 254-67)

$16.99

$

In Stock, only 2 left!

0
