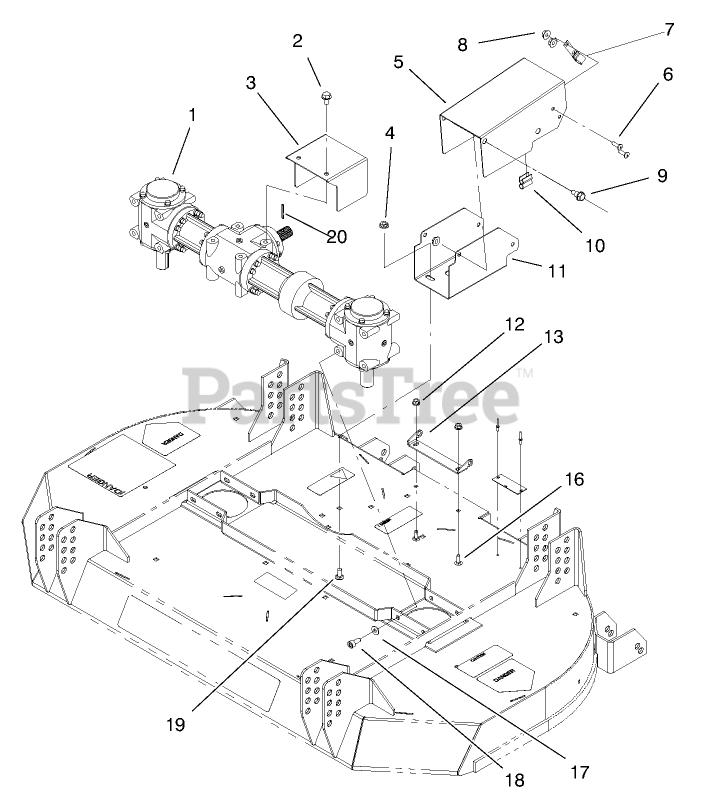

78477 - Toro 48" Recycler Mower Deck (SN: 099005001 - 099999999) (1999) COVERS AND GEAR BOX ASSEMBLY Parts Diagram

48" Recycler Mower Deck

COVERS AND GEAR BOX ASSEMBLY Parts Diagram

  • Title

1

Toro 99-0282

Gearbox
(Superseded to 105-6172)

$3748.99

$

Usually ships in 3-6 days

0

2

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

3

Toro 100-5810-01

COVER - GEARBOX

$

$

Not available

4

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

5

Toro 99-0253-01

COVER - DRIVSHAFT

$72.99

$

Usually ships in 3-6 days

0

6

Toro 3250-32

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

7

Toro 99-0270

CLIP - CABLE

$

$

Not available

8

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

9

Toro 92-6986

BOLT-SHOULDER

$11.99

$

Usually ships in 3-6 days

0

10

Toro 98-0815

STRIP - SEAL

$

$

Not available

11

Toro 99-0254-01

SUPPORT - COVER

$

$

Not available

12

Toro 32128-32

NUT-HHF

$2.99

$

Usually ships in 3-6 days

0

13

Toro 99-0252

BRACKET - HINGE

$

$

Not available

16

Toro 3229-25

SCREW-CARR
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

17

Toro 100-2400

WASHER

$3.99

$

Usually ships in 3-6 days

0

18

Toro 100-2401

SCREW-HSH

$3.49

$

Usually ships in 3-6 days

0

19

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

20

Toro 32121-48

PIN-SPRING

$0.99

$

Usually ships in 3-6 days

0
