78474 - Toro 72" E-Z Vac DFS Collection System (SN: 400000000 - 999999999) Weight Assembly Parts Diagram

72" E-Z Vac DFS Collection System

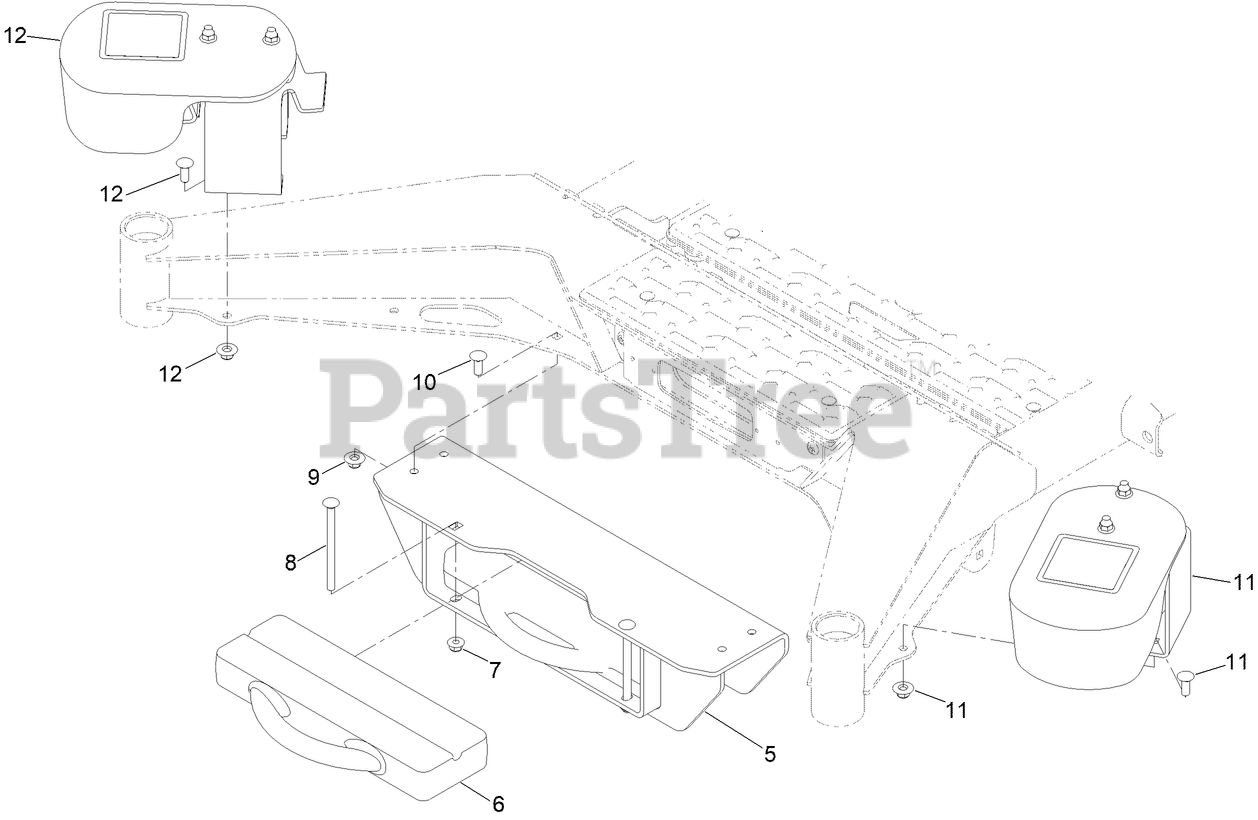

Weight Assembly Parts Diagram

  • Title
5

Toro 144-6640-01

WEIGHT BRACKET ASM

$338.99

$

Usually ships in 3-6 days

0

6

Toro 109-9742-03

See Supercession: 109-9742-05
(Superseded to 109-9742-05)

$450.99

$

Usually ships in 3-6 days

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 109-6795

BOLT-CARR

$5.49

$

Usually ships in 3-6 days

0

9

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, only 3 left!

0

10

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

11

ASM-LH CASTER WEIGHT

Note: Not serviced separately

$

$

Not available

12

ASM-RH CASTER WEIGHT

Note: Not serviced separately

$

$

Not available
