78469 - Toro 60" Side-Discharge Mower Deck for 5xi Tractor (SN: 089000001 - 089999999) (1998) REINFORCEMENT PLATE ASSEMBLY Parts Diagram

60" Side-Discharge Mower Deck for 5xi Tractor

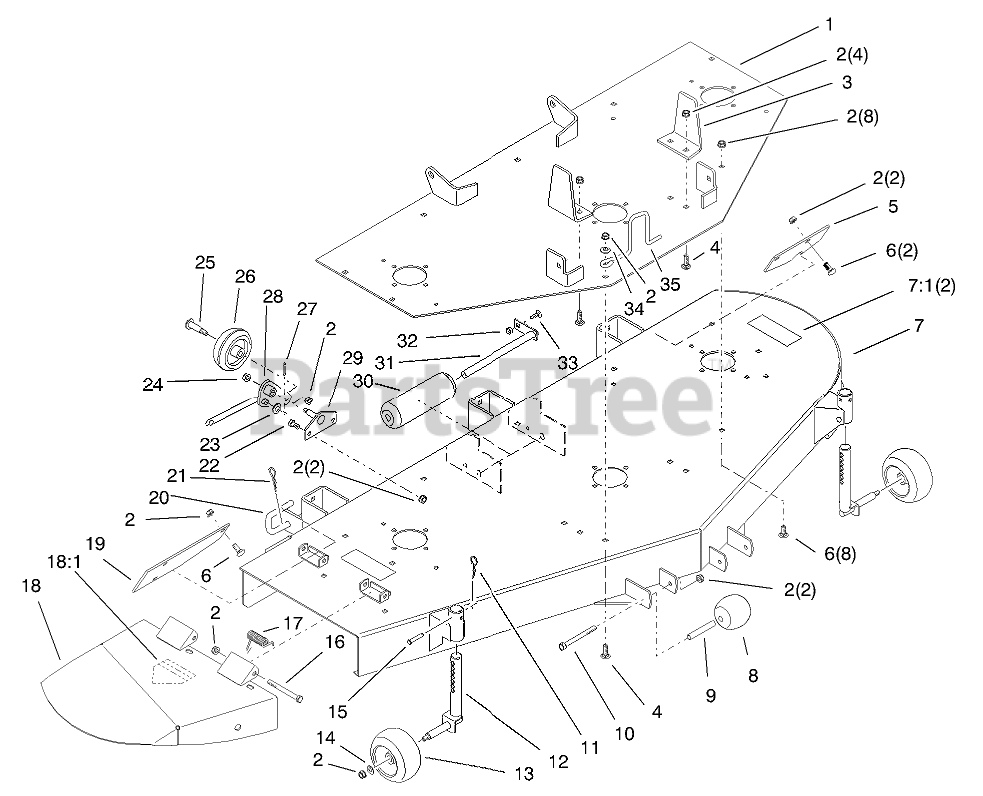

REINFORCEMENT PLATE ASSEMBLY Parts Diagram

  • Title

1

Toro 94-2369-01

PLATE

$1035.99

$

Usually ships in 3-6 days

0

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

3

Toro 94-7642-01

BRACKET-GUIDE

$

$

Not available

4

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

5

Toro 79-1230-03

PLATE-WEAR LH

$

$

Not available

6

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 14

0

7

Toro 98-5045

Deck ASM (Only On: 78395)

$

$

Not available

7

Toro 98-5047

Deck ASM (Only On: 78469)

$

$

Not available

7:1

Toro 92-7108

Decal-Danger (Only On: 78395)

$7.49

$

Usually ships in 3-6 days

0

7:1

Toro 93-7317

Decal-Danger (Only On: 78469)

$

$

Not available

8

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

9

Toro 94-2500

TUBE-SPACER, WHEEL

$4.49

$

Usually ships in 3-6 days

0

10

Toro 323-16

SCREW-HH

$3.49

$

In Stock, Qty 7

0

11

Toro 3290-467

PIN-HAIR

$0.99

$

In Stock, Qty 6

0

12

Toro 94-2364

GAGE WHEEL SUPPORT

$

$

Not available

13

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 16

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 94-3829

PIN-CLEVIS

$2.99

$

In Stock, only 3 left!

0

16

Toro 323-42

SCREW-HH
(Superseded to 325-14)

$4.49

$

Usually ships in 3-6 days

0

17

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

18

Toro 92-6508-01

Chute ASM (Only On: 78395)

$

$

Currently unavailable

18

Toro 98-5046

Chute ASM (Only On: 78469)

$

$

Not available

18:1

Toro 93-1122

Decal-Danger (Only On: 78395)

$9.99

$

In Stock, Qty 12

0

18:1

Toro 93-7316

Decal-Danger (Only On: 78469)

$10.99

$

In Stock, Qty 20+

0

19

Toro 79-1240-03

PLATE-WEAR RH

$

$

Not available

20

Toro 94-7806

ROD - WHEEL PIVOT

$

$

Not available

21

Toro 9335064

PIN-COTTER, HAIR

$2.49

$

In Stock, Qty 11

0

22

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

23

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

25

Toro 56-6591

SCREW-SHOULDER, HWH

$9.49

$

In Stock, only 3 left!

0

26

Toro 701756

WHEEL-GAGE

$8.49

$

In Stock, Qty 14

0

27

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

28

Toro 94-7594

PIVOT ARM

$

$

Not available

29

Toro 94-7597

Pivot Plate
(Superseded to 94-7597-03)

$

$

Not available

30

Toro 113349

ROLLER-ANTI SCALP

$78.99

$

In Stock, only 2 left!

0

31

Toro 113603

ROLLER-SHAFT

$46.99

$

Usually ships in 3-6 days

0

32

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

33

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

34

Toro 3256-41

WASHER

$1.99

$

In Stock, Qty 6

0

35

Toro 94-2484

GUIDE - BELT

$

$

Not available
