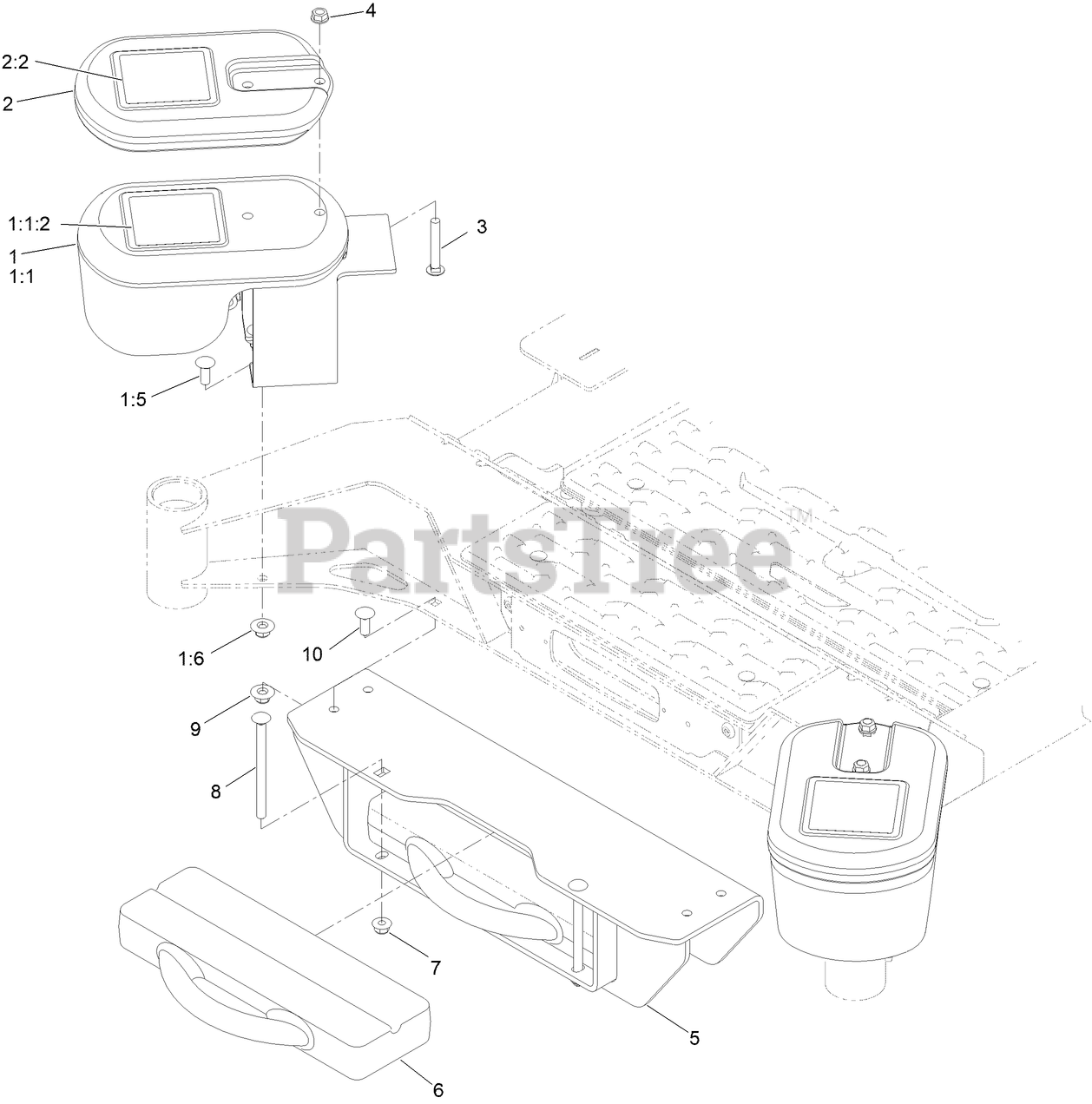

78468 - Toro 60" E-Z Vac DFS Collection System (SN: 400000000 - 999999999) Weight Assembly Parts Diagram

60" E-Z Vac DFS Collection System

Weight Assembly Parts Diagram

  • Title

1

Toro 144-2660

ASM-CASTER WEIGHT

$371.99

$

Usually ships in 3-6 days

0

1:1

Toro 126-7639

WEIGHT WITH DECAL ASM

$302.99

$

Usually ships in 3-6 days

0

1:1:2

Toro 126-4662

DECAL-WARNING, TRACTION

$5.99

$

In Stock, only 4 left!

0

1:5

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

1:6

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

2

Toro 126-9684

WEIGHT

$120.99

$

Usually ships in 3-6 days

0

2:2

Toro 126-4662

DECAL-WARNING, TRACTION

$5.99

$

In Stock, only 4 left!

0

3

Toro 3231-31

SCREW-CARR

$7.49

$

In Stock, Qty 20+

0

4

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

5

Toro 144-6640-01

WEIGHT BRACKET ASM

$349.99

$

Usually ships in 3-6 days

0

6

Toro 109-9742-03

See Supercession: 109-9742-05
(Superseded to 109-9742-05)

$463.99

$

Usually ships in 3-6 days

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 109-6795

BOLT-CARR

$5.49

$

In Stock, only 2 left!

0

9

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0
