78468 - Toro 60" E-Z Vac DFS Collection System (SN: 400000000 - 999999999) DFS Mount Assembly Parts Diagram

60" E-Z Vac DFS Collection System

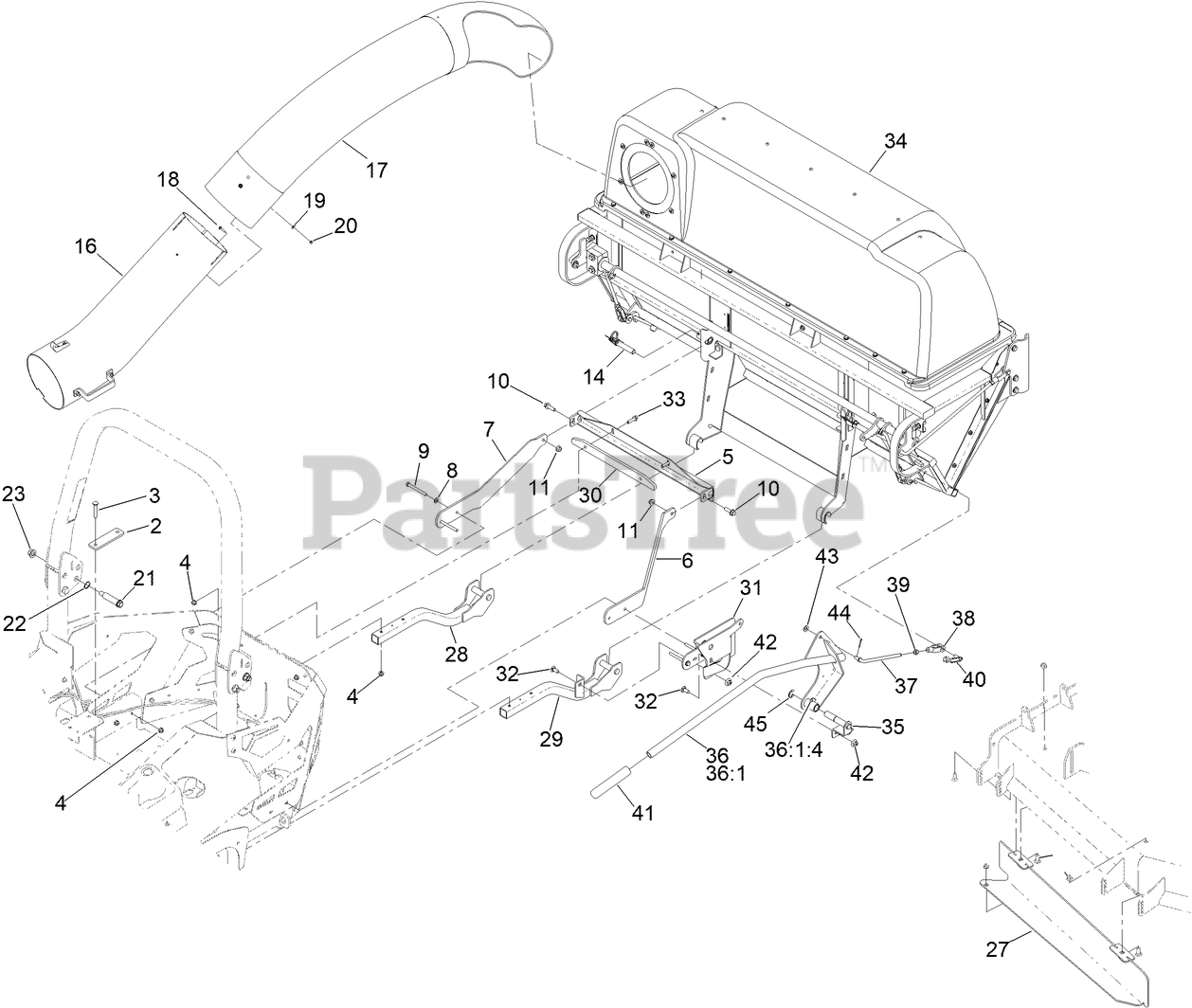

DFS Mount Assembly Parts Diagram

  • Title

2

Toro 144-0426-01

PLATE-BACKER

$11.99

$

In Stock, only 2 left!

0

3

Toro 3230-7

BOLT-CARR

$0.99

$

In Stock, Qty 10

0

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

5

Toro 126-9262-03

SUPPORT-BAGGER, UPPER

$138.99

$

Usually ships in 3-6 days

0

6

Toro 145-6968-01

BRACKET-UPPER, LH

$90.99

$

Usually ships in 3-6 days

0

7

Toro 145-6969-01

BRACKET-UPPER, RH

$90.99

$

Usually ships in 3-6 days

0

8

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

9

Toro 126-8742

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

10

Toro 119-4061

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

11

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 116-0458

PIN-MOUNT, BAGGER

$15.99

$

In Stock, only 2 left!

0

16

Toro 109-1973

LOWER TUBE ASM

$322.99

$

Usually ships in 3-6 days

0

17

Toro 109-3525

TUBE-UPPER

$466.99

$

Usually ships in 3-6 days

0

18

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

19

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 126-9209

BOLT-SHOULDER

$7.99

$

Usually ships in 3-6 days

0

22

Toro 119-4164

WASHER-WAVE

$3.49

$

In Stock, only 3 left!

0

23

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

27

Toro 145-1257-01

BAFFLE-BAGGER, 60

$227.99

$

Usually ships in 3-6 days

0

28

Toro 145-6970-03

SUPPORT-LOWER, RH [BLACK]

$265.99

$

Usually ships in 0 days

0

29

Toro 145-6971-03

SUPPORT-LOWER, LH [BLACK]

$281.99

$

Usually ships in 0 days

0

30

Toro 145-6973-03

PLATE-SUPPORT

$28.99

$

Usually ships in 0 days

0

31

Toro 145-6987-03

PIVOT MOUNT

$226.99

$

Usually ships in 3-6 days

0

32

Toro 3231-27

SCREW-CARR

$4.49

$

In Stock, only 2 left!

0

33

Toro 119-4036

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

34

DFS ASM

Note: Not serviced separately

$

$

Not available

35

Toro 109-6869

PIN-HANDLE

$77.99

$

Usually ships in 3-6 days

0

36

Toro 145-6992-03

HANDLE ASM

$349.99

$

Usually ships in 3-6 days

0

36:1

HANDLE ASM

Note: Not serviced separately

$

$

Not available

36:1:4

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

37

Toro 103-2413

LINK-HANDLE

$13.99

$

In Stock, only 2 left!

0

38

Toro 1-633131

YOKE-LINKAGE, BRAKE

$15.99

$

In Stock, Qty 8

0

39

Toro 3219-3

NUT-HEX

$1.99

$

In Stock, Qty 20+

0

40

Toro 103-2399

PIN-SPRING, CLEVIS

$6.49

$

In Stock, Qty 14

0

41

Toro 103-7115

HANDLE-GRIP

$7.99

$

Usually ships in 3-6 days

0

42

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+

0

43

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

44

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

45

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0
