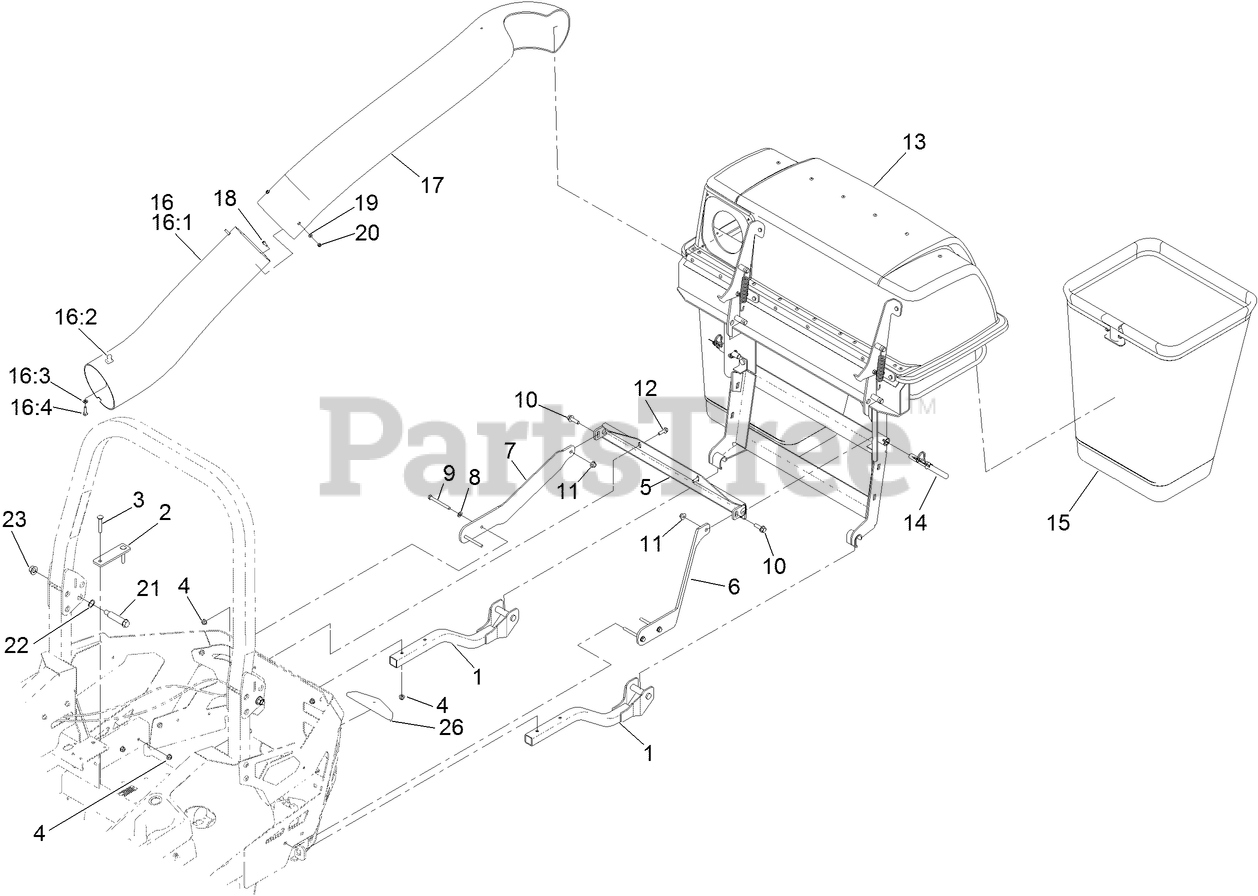

78463 - Toro Bagger Kit for Z Master 2000 or 4000 Series Mower (SN: 400000000 - 999999999) Bagger, Mount and Tube Assembly Parts Diagram

Bagger Kit for Z Master 2000 or 4000 Series Mower

Bagger, Mount and Tube Assembly Parts Diagram

  • Title
1

Toro 144-0427-03

SUPPORT, LOWER [BLACK]

$143.99

$

Usually ships in 3-6 days

0

2

Toro 144-0426-01

PLATE-BACKER

$11.99

$

In Stock, only 2 left!

0

3

Toro 3230-7

BOLT-CARR

$0.99

$

In Stock, Qty 10

0

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

5

Toro 126-9262-03

SUPPORT-BAGGER, UPPER

$138.99

$

Usually ships in 3-6 days

0

6

Toro 144-0425-01

BRACKET-UPPER, LH

$67.99

$

Usually ships in 3-6 days

0

7

Toro 144-0423-01

BRACKET-UPPER, RH

$1187.99

$

In Stock, only 1 left!

0

8

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

9

Toro 126-8742

SCREW-HH

$1.49

$

In Stock, only 4 left!

0

10

Toro 119-4061

SCREW-HHF

$2.49

$

In Stock, only 2 left!

0

11

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

12

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

13

Toro 126-8579

TWIN BAG HOOD ASM

$

$

Not available

14

Toro 116-0458

PIN-MOUNT, BAGGER

$15.99

$

In Stock, only 2 left!

0

15

Toro 116-0754

BAG AND FRAME ASM

$191.99

$

Usually ships in 3-6 days

0

16

Toro 116-4128

LOWER TUBE ASM

$267.99

$

Usually ships in 3-6 days

0

16:1

Toro 116-4495

TUBE-LOWER

$131.99

$

Usually ships in 3-6 days

0

16:2

Toro 103-4081

LATCH-KEEPER

Note: Kit No. 103-4188 - Contains catch, rubber latch, and mounting hardware

$14.99

$

Usually ships in 3-6 days

0

16:3

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16:4

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

17

Toro 109-2036

TUBE-UPPER

$287.99

$

Usually ships in 3-6 days

0

18

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

19

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 126-9209

BOLT-SHOULDER

$7.99

$

Usually ships in 3-6 days

0

22

Toro 119-4164

WASHER-WAVE

$3.49

$

In Stock, only 3 left!

0

23

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

26

Toro 126-8299

COVER-HITCH

$7.99

$

Usually ships in 3-6 days

0
