78461 - Toro 52" Side-Discharge Mower Deck (SN: 079000001 - 079999999) (1997) IDLER AND PULLEY ASM Parts Diagram

52" Side-Discharge Mower Deck

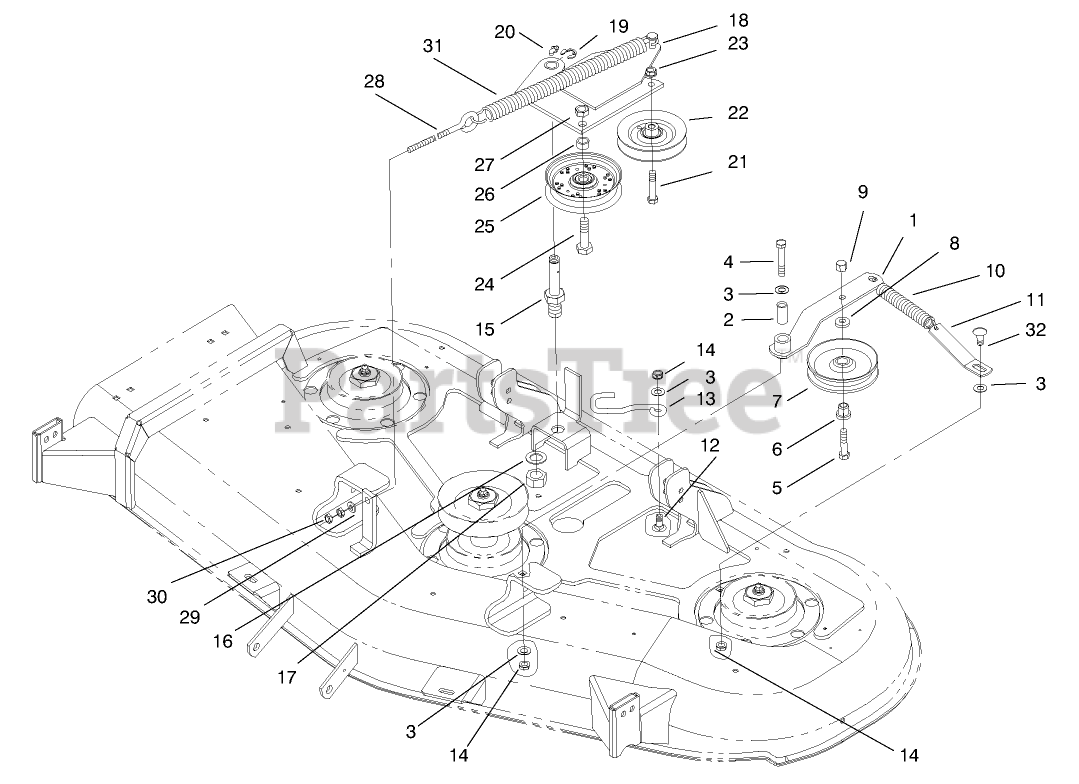

IDLER AND PULLEY ASM Parts Diagram

  • Title

1

Toro 55-7640

Arm-Idler
(Superseded to 55-7640-03)

$134.99

$

In Stock, only 2 left!

0

2

Toro 51-3640

SLEEVE

$17.99

$

In Stock, only 1 left!

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

5

Toro 3211-8

SCREW-HH

$4.49

$

In Stock, Qty 8

0

6

Toro 65-5950

BUSHING-PULLEY

$5.99

$

In Stock, Qty 20+

0

7

Toro 65-5940

PULLEY-IDLER

$38.99

$

In Stock, only 4 left!

0

8

Toro 7-0081

WASHER-FLAT

$1.49

$

In Stock, Qty 10

0

9

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

10

Toro 51-3650

SPRING-EXTENSION

$23.99

$

In Stock, Qty 5

0

11

Toro 55-7650

PLATE-SPRING

$25.99

$

In Stock, Qty 9

0

12

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

13

Toro 55-7620

GUIDE-BELT

$

$

Not available

14

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

15

Toro 94-6193

SHAFT - PIVOT

$

$

Not available

16

Toro 67-9410

WASHER

$4.49

$

Usually ships in 3-6 days

0

17

Toro 3296-50

NUT-LOCK, NI

$3.49

$

Usually ships in 3-6 days

0

18

Toro 94-6217

Idler Plate ASM
(Superseded to 94-6217-01)

$263.99

$

Usually ships in 3-6 days

0

19

Toro 105005

RETAINING RING

$

$

Not available

20

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 13

0

21

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

22

Toro 94-6218

Pulley-Idler
(Superseded to 94-2447)

$130.99

$

Usually ships in 3-6 days

0

23

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

24

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 16

0

25

Toro 113633

PULLEY FLAT B
(Superseded to 113633-03)

$141.99

$

Usually ships in 3-6 days

0

26

Toro 9118

SPACER

$

$

Not available

27

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

28

Toro 79-3120

EYE-BOLT

$63.99

$

Usually ships in 3-6 days

0

29

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

30

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

31

Toro 114868

Spring-Idler
(Superseded to 114868-01)

$

$

Not available

32

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0
