78460 - Toro 52" Side-Discharge Mower Deck (SN: 069000001 - 069999999) (1996) DECK & LIFT ASSEMBLY Parts Diagram

52" Side-Discharge Mower Deck

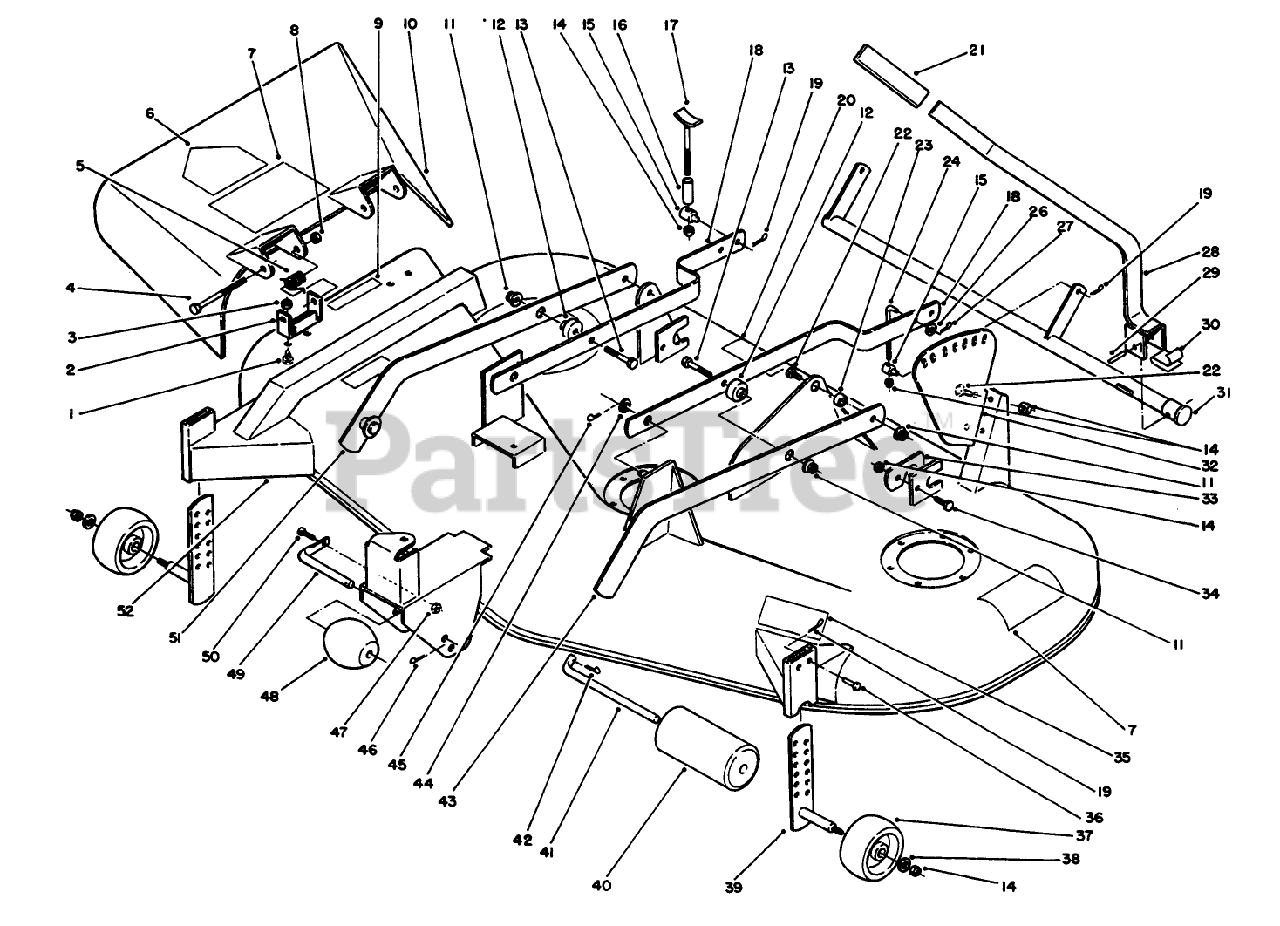

DECK & LIFT ASSEMBLY Parts Diagram

  • Title

1

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 8

0

2

Toro 29-5590

Bracket-Pivot
(Superseded to 29-5590-03)

$

$

Not available

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

4

Toro 3211-15

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

5

Toro 40-6230

SPRING

$38.99

$

Usually ships in 3-6 days

0

6

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 12

0

7

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

8

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

9

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

10

Toro 79-6120

Deflector Assembly (Incl. Ref. #6 & 7)

$

$

Not available

11

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

12

Toro 115706

SPACER

$26.99

$

Usually ships in 3-6 days

0

13

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

15

Toro 79-2790

TRUNNION

$37.99

$

Usually ships in 3-6 days

0

16

Toro 979180

SPACER .375 ID X 1.6

$

$

Not available

17

Toro 116816

WLDMT-HANGER ROD

$

$

Not available

18

Toro 120070

Bar-Leveler
(Superseded to 120070-01)

$

$

Not available

19

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

20

Toro 79-2460

DECAL-BELT ROUTING

$

$

Not available

21

Toro 103712

GRIP

$9.49

$

In Stock, only 1 left!

0

22

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 17

0

23

Toro 115705

SPACER

$

$

Not available

24

Toro 121010

ROD-LIFT

$22.99

$

Usually ships in 3-6 days

0

26

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

27

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

28

Toro 79-1010

Lever
(Superseded to 79-1010-01)

$149.99

$

Usually ships in 3-6 days

0

29

Toro 933245

SPIROL PIN

$

$

Not available

30

Toro 112730

CLIP-SPRING

$47.99

$

Usually ships in 3-6 days

0

31

Toro 79-0810

Lit Arm Assembly
(Superseded to 79-0810-01)

$

$

Not available

32

Toro 78-2470

Quadrant
(Superseded to 78-2470-01)

$89.99

$

Usually ships in 3-6 days

0

33

Toro 79-0590

LOCK-SHAFT

$

$

Not available

34

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

35

Toro 68-3380

DECAL - WHEEL ADJUSTMENT

$11.99

$

Usually ships in 3-6 days

0

36

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

37

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$22.99

$

In Stock, Qty 20+

0

38

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Toro 68-2350

GAGE-WHEEL

$115.99

$

Usually ships in 3-6 days

0

40

Toro 36-1740

ROLLER-DECK

$39.99

$

In Stock, only 3 left!

0

41

Toro 40-0340

SHAFT-ROLLER, REAR

$30.99

$

In Stock, only 1 left!

0

42

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

43

Toro 117071

Draft Bar LH
(Superseded to 117071-01)

$

$

Not available

44

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 5

0

45

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, Qty 5

0

46

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

47

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

48

Toro 29-4820

ROLLER

$16.99

$

In Stock, only 2 left!

0

49

Toro 118960

SHAFT-ROLLER
(Superseded to 118960-03)

$37.99

$

In Stock, only 3 left!

0

50

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

51

Toro 117072

Draft Bar RH
(Superseded to 117072-01)

$

$

Not available

52

Toro 79-0830

Deck Assembly
(Superseded to 79-0830-01)

$

$

Not available
