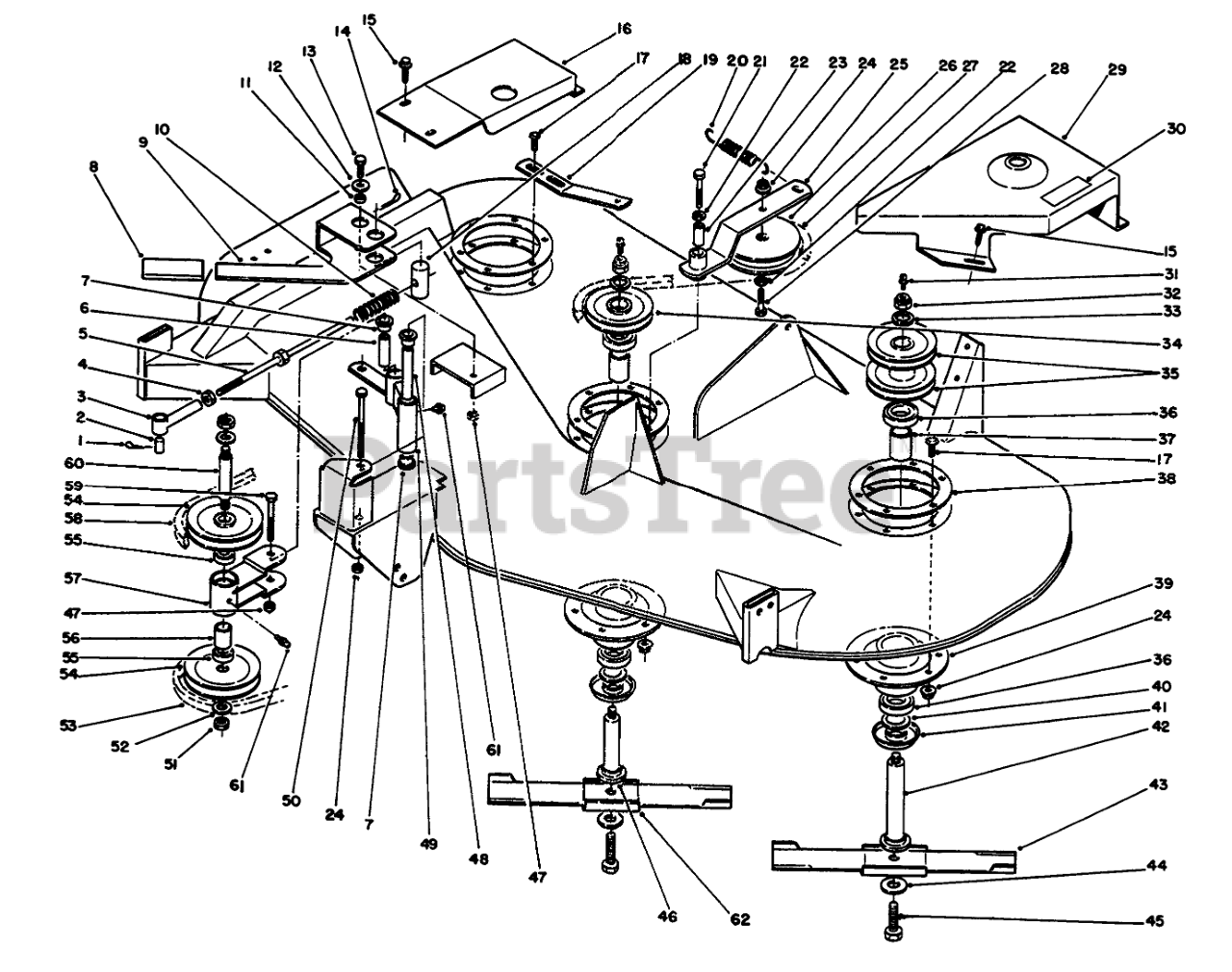

78460 - Toro 52" Side-Discharge Mower Deck (SN: 049000001 - 049999999) (1994) DECK BELT COVERS & SPINDLES Parts Diagram

52" Side-Discharge Mower Deck

DECK BELT COVERS & SPINDLES Parts Diagram

  • Title
1

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

2

Toro 283-8

PIN-CLEVIS
(Superseded to HY4486)

$1.49

$

In Stock, Qty 5

0

3

$

$

Not available

4

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 20+

0

5

Toro 79-0180

ROD-W.A. R

$

$

Not available

6

Toro 79-2760

SPACER

$

$

Not available

7

Toro 109859

BUSHING

$18.99

$

Usually ships in 3-6 days

0

8

$2.49

$

Usually ships in 3-6 days

0

9

Toro 79-0150

Lever
(Superseded to 79-0150-01)

$

$

Not available

10

Toro 79-0140

SPRING-COMPRESSION

$

$

Not available

11

Toro 104525

SPACER
(Superseded to 93-3658)

$9.99

$

Usually ships in 3-6 days

0

12

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

13

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

14

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

15

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

16

Toro 79-2610

Cover-Belt, R.H.
(Superseded to 79-2610-01)

$420.99

$

Usually ships in 3-6 days

0

17

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

18

Toro 79-0200

TRUNNION

$46.99

$

Usually ships in 3-6 days

0

19

Toro 79-0160

Strap-Spring
(Superseded to 79-0160-01)

$

$

Not available

20

Toro 51-3650

SPRING-EXTENSION

$23.99

$

In Stock, Qty 5

0

21

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

22

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

23

Toro 51-3640

SLEEVE

$16.99

$

In Stock, only 1 left!

0

24

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

25

Toro 55-7640

Arm-Idler
(Superseded to 55-7640-03)

$128.99

$

In Stock, only 1 left!

0

26

Toro 93-1622

PULLEY-IDLER

$42.99

$

In Stock, only 3 left!

0

27

Toro 102742

V-BELT
(Superseded to 94-2501)

$37.99

$

In Stock, Qty 6

0

28

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 79-0540

Cover-Belt L.H.
(Superseded to 79-0540-01)

$

$

Not available

30

Toro 111655

DECAL-HOC

$4.49

$

Usually ships in 3-6 days

0

31

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, only 2 left!

0

32

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 5

0

33

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

34

Toro 79-0620

PULLEY

$148.99

$

Usually ships in 3-6 days

0

35

Toro 79-0530

PULLEY-L.H. R

$

$

Not available

36

Toro 113514

BEARING-BALL

$21.99

$

In Stock, only 3 left!

0

37

Toro 79-1890

SPACER-BEARING

$34.99

$

Usually ships in 3-6 days

0

38

Toro 27-7680

SUPPORT-DECK, RING
(Superseded to 27-7680-03)

$86.99

$

Usually ships in 3-6 days

0

39

Toro 79-2480

Housing-Spindle

$222.99

$

Usually ships in 3-6 days

0

40

Toro 120860

WASHER-WHEEL

$6.99

$

In Stock, Qty 7

0

41

Toro 79-1920

SHIELD-BEARING

$14.99

$

In Stock, only 4 left!

0

42

Toro 79-1910

SHAFT-SPINDLE

$

$

Not available

43

Toro 27-0990

Blade
(Superseded to 27-0990-03)

$23.99

$

In Stock, only 3 left!

0

44

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

45

Toro 44-2200

SCREW-BLADE

$4.99

$

In Stock, Qty 6

0

46

Toro 79-1900

SHAFT-SPINDLE

$252.99

$

Usually ships in 3-6 days

0

47

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

48

Toro 79-0280

SPACER

$

$

Not available

49

Toro 79-0240

Arm Assembly
(Superseded to 79-0240-01)

$

$

Not available

50

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

51

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

52

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

53

Toro 116160

V-BELT

$69.99

$

Usually ships in 3-6 days

0

54

Toro 79-0320

PULLEY R

$

$

Not available

55

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 12

0

56

Toro 79-0340

SPACER

$

$

Not available

57

Toro 79-0290

Arm Assembly
(Superseded to 79-0290-01)

$

$

Not available

58

Toro 79-0550

V-BELT

$142.99

$

Usually ships in 3-6 days

0

59

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

60

Toro 79-0330

COUNTER-SHAFT

$

$

Not available

61

Toro 302-26

FITTING-GREASE

$7.49

$

In Stock, only 1 left!

0

62

Toro 92-9820

STIFFENER-BLADE

$62.99

$

Usually ships in 3-6 days

0
