78456 - Toro 62" Triple Soft Bagger, 200 Series Z Master (SN: 240000001 - 240999999) (2004) BAGGER HOOD ASSEMBLY Parts Diagram

62" Triple Soft Bagger, 200 Series Z Master

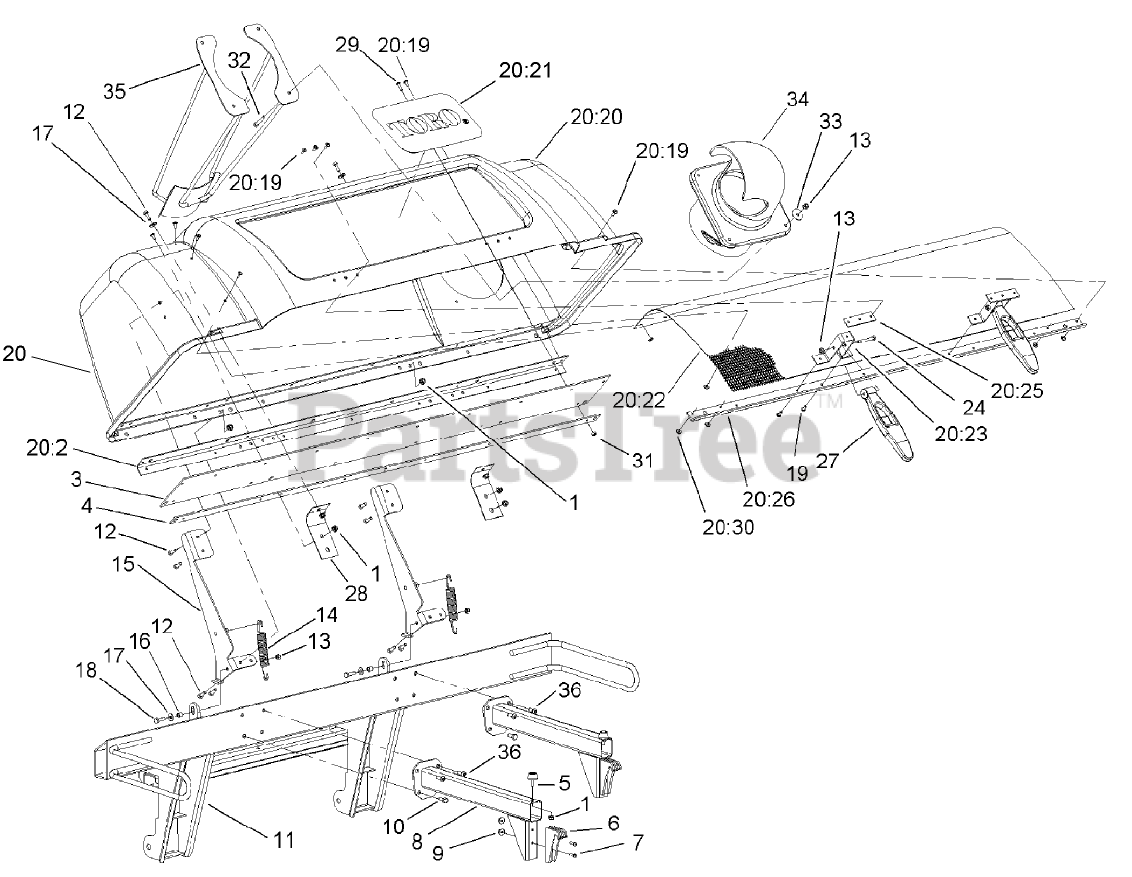

BAGGER HOOD ASSEMBLY Parts Diagram

  • Title

1

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

3

Toro 103-0451

Seal-Hinge

$281.99

$

Usually ships in 3-6 days

0

4

Toro 103-0452-03

Plate-Backing

$41.99

$

Usually ships in 3-6 days

0

5

Toro 1-523420

BUMPER

$14.99

$

Usually ships in 3-6 days

0

6

Toro 1-653404

Catch

$37.99

$

In Stock, only 4 left!

0

7

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

8

Toro 103-5124-03

SUPPORT-BAG

$165.99

$

Usually ships in 3-6 days

0

9

Toro 3290-148

NUT-HF

$0.99

$

In Stock, Qty 10

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Toro 103-4735-03

UPRIGHT BAGGER ASM

$799.99

$

Usually ships in 3-6 days

0

12

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

14

Toro 106-3424

Spring-Extension

$

$

Not available

15

Toro 103-0430-03

HINGE ASM

$134.99

$

Usually ships in 3-6 days

0

16

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 20+

0

17

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 12

0

19

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

20

Toro 106-9742

Hood ASM

$

$

Not available

20:2

Toro 103-0382-03

Stiffener-Bagger, Top

$66.99

$

Usually ships in 3-6 days

0

20:19

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

20:20

Toro 106-8024

Hood-Bagger, Triple

$

$

Not available

20:21

Toro 67-7310

DECAL

$64.99

$

Usually ships in 3-6 days

0

20:22

Toro 103-0440

Screen-Bagger

$30.99

$

Usually ships in 3-6 days

0

20:23

Toro 103-0379

Bracket-Mount

$42.99

$

Usually ships in 3-6 days

0

20:25

Toro 103-0376

Plate-Latch, Reinforcement

$9.49

$

Usually ships in 3-6 days

0

20:26

Toro 103-0380-03

Support-Screen

$58.99

$

Usually ships in 3-6 days

0

20:30

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

24

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 1-653403

LATCH

$80.99

$

In Stock, only 2 left!

0

28

Toro 103-0391

Reinforcement-Hood, Bagger

$12.99

$

Usually ships in 3-6 days

0

29

Toro 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

31

Toro 32153-1

NUT-LOCK, SIDE

$3.99

$

In Stock, only 1 left!

0

32

Toro 321-9

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

33

Toro 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, Qty 11

0

34

Toro 105-5873

Tube-Bagger, Upper

$465.99

$

Usually ships in 3-6 days

0

35

Toro 106-0793-03

FLEX HOSE SUPPORT ASM

$

$

Not available

36

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 12

0
