78455 - Toro 44" and 52" Twin Soft Bagger, 100 Series Z Master (SN: 220000001 - 220999999) (2002) BAG SUPPORT AND HOOD ASSEMBLY Parts Diagram

44" and 52" Twin Soft Bagger, 100 Series Z Master

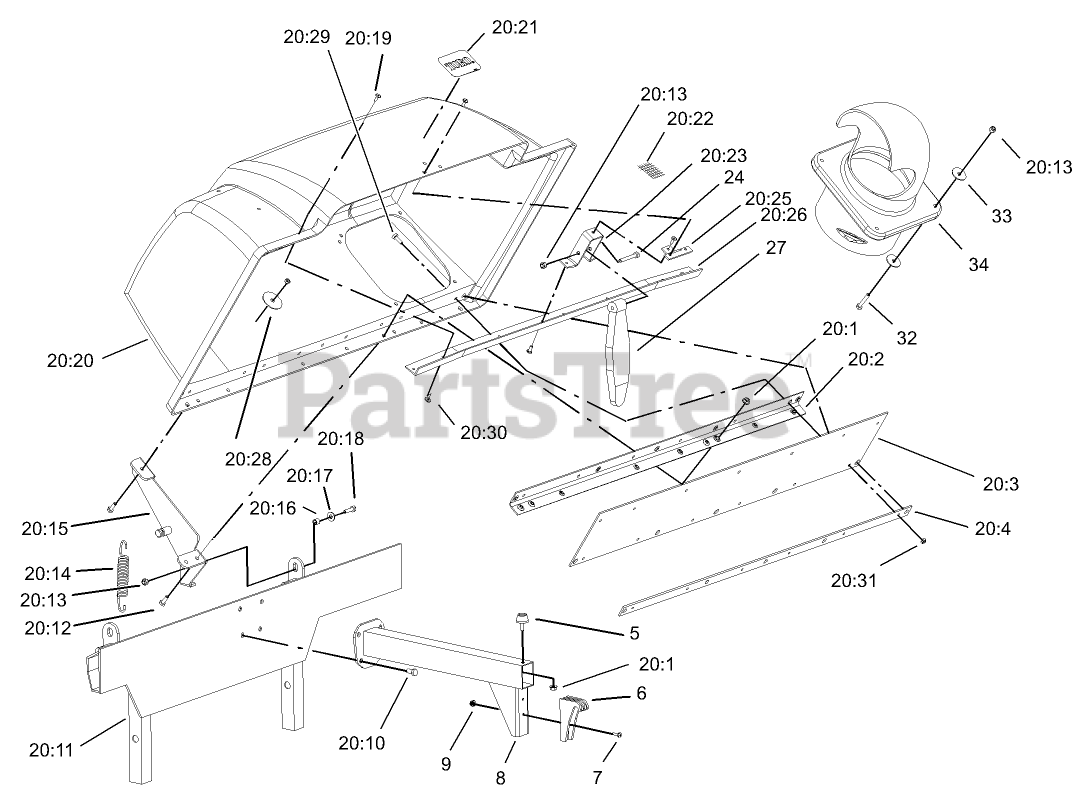

BAG SUPPORT AND HOOD ASSEMBLY Parts Diagram

  • Title

5

Toro 1-523420

BUMPER

$14.99

$

Usually ships in 3-6 days

0

6

Toro 1-653404

Catch

$36.99

$

In Stock, Qty 7

0

7

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

8

Toro 1-652414-03

BAG SUPPORT ASM
(Superseded to 103-5124-03)

$161.99

$

Usually ships in 3-6 days

0

9

Toro 1-809112

Nut
(Superseded to 3290-148)

$0.99

$

In Stock, Qty 11

0

20:1

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

20:2

Toro 1-653397-03

STIFFENER-BAGGER, TOP

$80.99

$

Usually ships in 3-6 days

0

20:3

Toro 1-653425

SEAL

$84.99

$

Usually ships in 3-6 days

0

20:4

Toro 1-653528-03

PLATE-BACKING

$66.99

$

Usually ships in 3-6 days

0

20:10

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

20:11

Toro 1-652305-03

BAGGER UPRIGHT ASM
(Superseded to 103-5129)

$

$

Not available

20:12

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20:13

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

20:14

Toro 1-653544

SPRING-EXTENSION

$7.99

$

In Stock, only 2 left!

0

20:15

Toro 1-652395-03

HINGE ASM

$94.99

$

Usually ships in 3-6 days

0

20:16

Toro 1-633545

SPACER

$2.99

$

In Stock, Qty 15

0

20:17

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20:18

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20:19

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

20:20

Toro 105-9100

Top-Bagger

$275.99

$

Usually ships in 3-6 days

0

20:21

Toro 99-2385

DECAL

$4.49

$

In Stock, only 2 left!

0

20:22

Toro 114967

SCREEN-BAGGER

$37.99

$

In Stock, only 3 left!

0

20:23

Toro 1-653519

ANCHOR-LATCH

$86.99

$

Usually ships in 3-6 days

0

20:25

Toro 1-653535

REINFORCEMENT-LATCH

$47.99

$

Usually ships in 3-6 days

0

20:26

Toro 1-653400-03

SUPPORT-SCREEN

$85.99

$

Usually ships in 3-6 days

0

20:28

Toro 1-653036

WASHER

$5.49

$

In Stock, only 2 left!

0

20:29

Toro 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

20:30

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20:31

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 105-6188

Hood ASM
(Superseded to 112-2316)

$715.99

$

Usually ships in 3-6 days

0

24

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 1-653403

LATCH

$78.99

$

In Stock, Qty 6

0

32

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

33

Toro 3256-58

WASHER-FLAT
(Superseded to 3256-55)

$5.49

$

In Stock, only 1 left!

0

34

Toro 105-5873

Tube-Bagger, Upper

$398.99

$

Usually ships in 3-6 days

0
