78452 - Toro 52" Side-Discharge Mower Deck for 5xi Tractors (SN: 200000001 - 200999999) (2000) PULLEY AND BELT ASSEMBLY Parts Diagram

52" Side-Discharge Mower Deck for 5xi Tractors

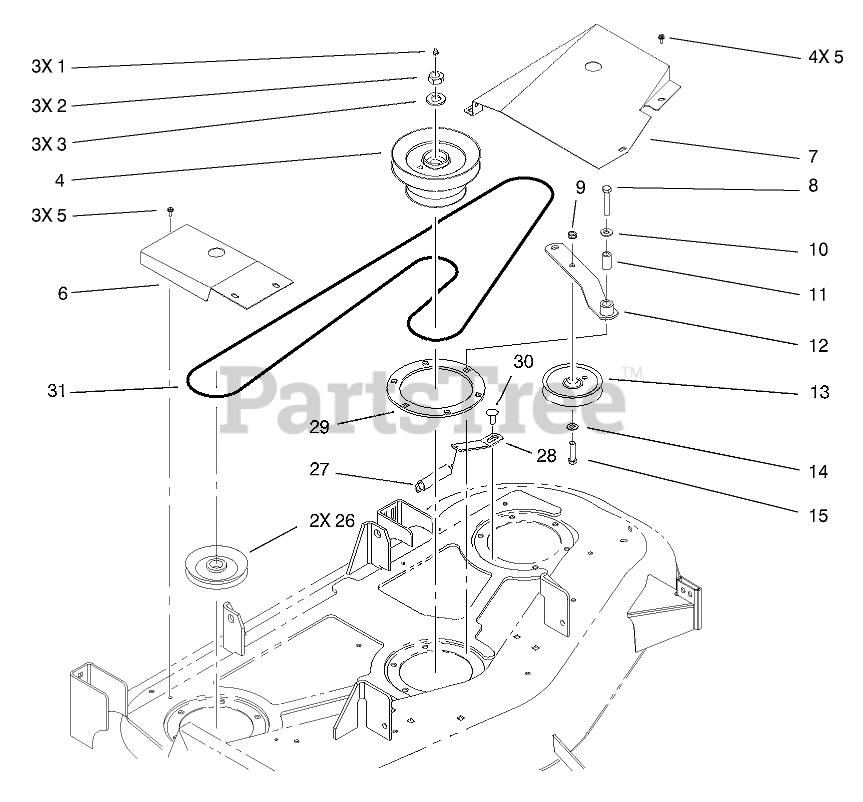

PULLEY AND BELT ASSEMBLY Parts Diagram

  • Title

1

Toro 302-2

FITTING-GREASE

$2.49

$

Usually ships in 3-6 days

0

2

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 5

0

3

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

4

Toro 94-2035

PULLEY-DOUBLE

$252.99

$

Usually ships in 3-6 days

0

5

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

6

Toro 98-1618-01

COVER ASM-RH

$

$

Not available

7

Toro 98-1619-01

COVER ASM-LH

$

$

Not available

8

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

9

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

10

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 51-3640

SLEEVE

$16.99

$

In Stock, only 1 left!

0

12

Toro 55-7640-03

IDLER ARM ASM

$128.99

$

In Stock, only 1 left!

0

13

Toro 93-1622

PULLEY-IDLER

$42.99

$

In Stock, only 3 left!

0

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 79-0620

PULLEY

$148.99

$

Usually ships in 3-6 days

0

27

Toro 51-3650

SPRING-EXTENSION

$23.99

$

In Stock, Qty 5

0

28

Toro 55-7650

PLATE-SPRING

$24.99

$

In Stock, Qty 9

0

29

Toro 27-7680-03

RING-DECK SUPPORT

$86.99

$

Usually ships in 3-6 days

0

30

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

31

Toro 94-2501

V-BELT

$37.99

$

In Stock, Qty 6

0
