78449 - Toro 48" Side-Discharge Mower Deck for 5xi Tractors (SN: 240000001 - 240999999) (2004) DECK SUSPENSION ASSEMBLY Parts Diagram

48" Side-Discharge Mower Deck for 5xi Tractors

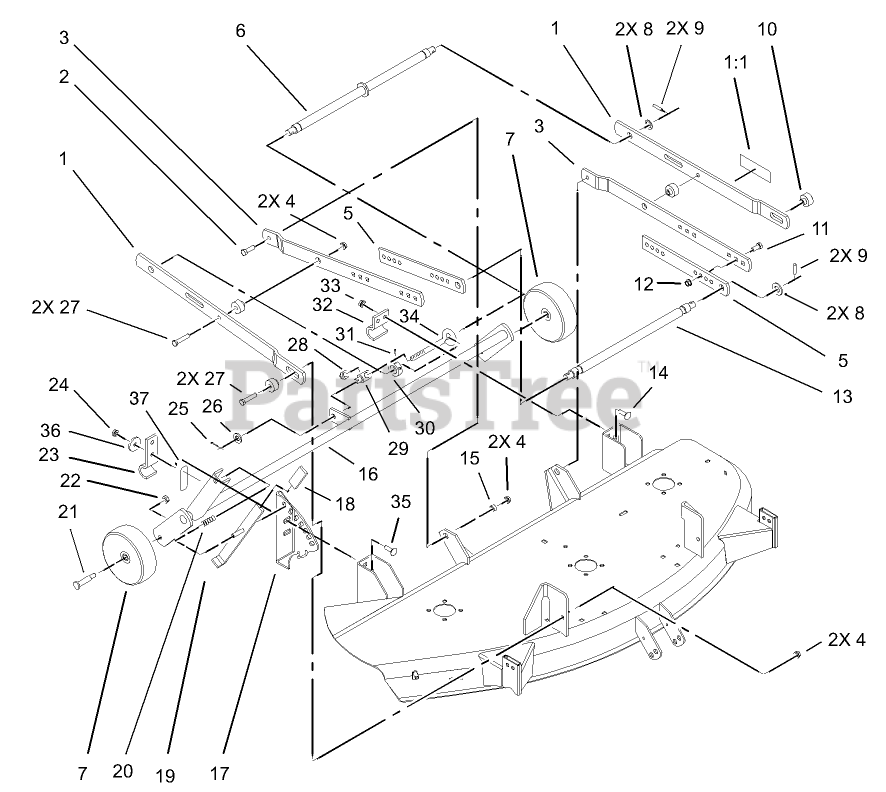

DECK SUSPENSION ASSEMBLY Parts Diagram

  • Title

1

Toro 98-5042

LH LEVELER ASM

$

$

Not available

1

Toro 98-5044

RH LEVELER ASM

$

$

Not available

1:1

Toro 93-9367

DECAL-WARNING

$9.99

$

In Stock, only 1 left!

0

2

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

3

Toro 94-7801-03

DRAFTBAR

$

$

Not available

4

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

5

Toro 94-7804-03

DRAFTBAR-ADJUSTMENT

$

$

Not available

6

Toro 94-7943-03

SHAFT-LEVELER

$

$

Not available

7

Toro 95-4102

WHEEL

$89.99

$

In Stock, Qty 5

0

8

Toro 3256-69

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

9

Toro 933216

PIN-ROLL, SPIROL

$3.99

$

In Stock, only 1 left!

0

10

Toro 115706

SPACER

$31.99

$

Usually ships in 3-6 days

0

11

Toro 3231-38

SCREW-CARR

$7.99

$

In Stock, Qty 11

0

12

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 12

0

13

Toro 94-2130-03

SHAFT-DRAFTBAR

$154.99

$

Usually ships in 3-6 days

0

14

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

15

Toro 114127

SPACER

$8.99

$

Usually ships in 3-6 days

0

16

Toro 95-3875-01

SUPPORT-WHEEL

$

$

Not available

17

Toro 94-7544-01

QUAD-DECK

$

$

Not available

18

Toro 102597

GRIP

$2.49

$

Usually ships in 3-6 days

0

19

Toro 94-7965-01

LEVER-HOC

$36.99

$

Usually ships in 3-6 days

0

20

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 2 left!

0

21

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 20+

0

22

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, only 3 left!

0

23

Toro 110837-03

BRACKET-PIVOT

$36.99

$

In Stock, Qty 5

0

24

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

25

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 16

0

26

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

27

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

29

Toro 94-7802

TRUNNION

$39.99

$

Usually ships in 3-6 days

0

30

Toro 94-7953

COLLAR

$32.99

$

Usually ships in 3-6 days

0

31

Toro 3245-2

SCREW-SET, HSH

$3.99

$

Usually ships in 3-6 days

0

32

Toro 94-7543-03

CLAMP

$

$

Not available

33

Toro 32128-40

NUT-FLANGE

$7.49

$

Usually ships in 3-6 days

0

34

Toro 94-7954

ROD-ADJUSTMENT, LEVEL

$82.99

$

Usually ships in 3-6 days

0

35

Toro 3231-4

SCREW-CARR

$3.99

$

Usually ships in 3-6 days

0

36

Toro 98-3479

WASHER-SUPPORT

$

$

Not available

37

Toro 93-7282

DECAL-ADJUSTMENT, WHEEL

$8.49

$

In Stock, only 1 left!

0
