78445 - Toro 50" Side-Discharge Mower Deck (SN: 069000001 - 069999999) (1996) PLATE & IDLER ASSEMBLY Parts Diagram

50" Side-Discharge Mower Deck

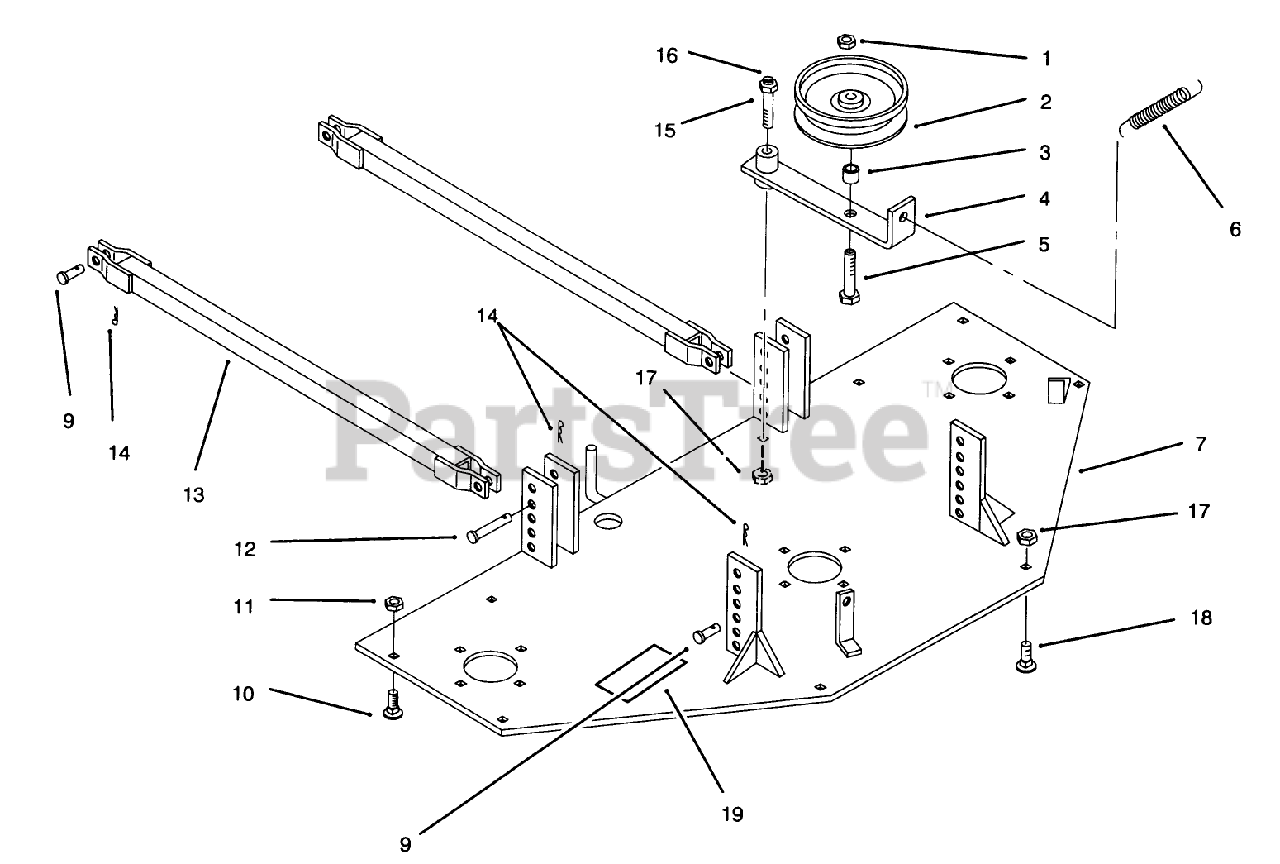

PLATE & IDLER ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

2

Toro 113633

PULLEY FLAT B
(Superseded to 113633-03)

$134.99

$

Usually ships in 3-6 days

0

3

Toro 9118

SPACER

$

$

Not available

4

Toro 113626

ASS'Y-IDLER ARM R

$

$

Not available

Toro 115351

ASSY-IDLER ARM/BU R

Note: Not illustrated

$

$

Not available

5

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 17

0

6

Toro 100071

SPRING-EXTENSION

$11.99

$

In Stock, only 3 left!

0

7

Toro 78-1960

ASS'Y-MWR DECK PL R

$

$

Not available

Toro 78-1970

Plate-60" Deck
(Superseded to 78-1970-01)

Note: Not illustrated

$

$

Not available

9

Toro 9329644

CLEVIS PIN3/8X1 1/4

$

$

Not available

10

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

10

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

Toro 3296-39

NUT-LOCK, NI

Note: Not illustrated

$2.99

$

In Stock, Qty 20+

0

12

Toro 9329674

CLEVIS PIN

$5.99

$

Usually ships in 3-6 days

0

13

Toro 113635

Bar-Stabilizer
(Superseded to 113635-03)

$

$

Not available

14

Toro 112444

HAIRPIN

$1.99

$

Usually ships in 3-6 days

0

15

Toro 120060

Bolt-Shoulder (Incl. Ref. #16)

$

$

Not available

16

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

19

Toro 115222

DECAL-BELT INSTAL

$

$

Not available
