78445 - Toro 50" Side-Discharge Mower Deck (SN: 069000001 - 069999999) (1996) 60" DECK ASSEMBLY Parts Diagram

50" Side-Discharge Mower Deck

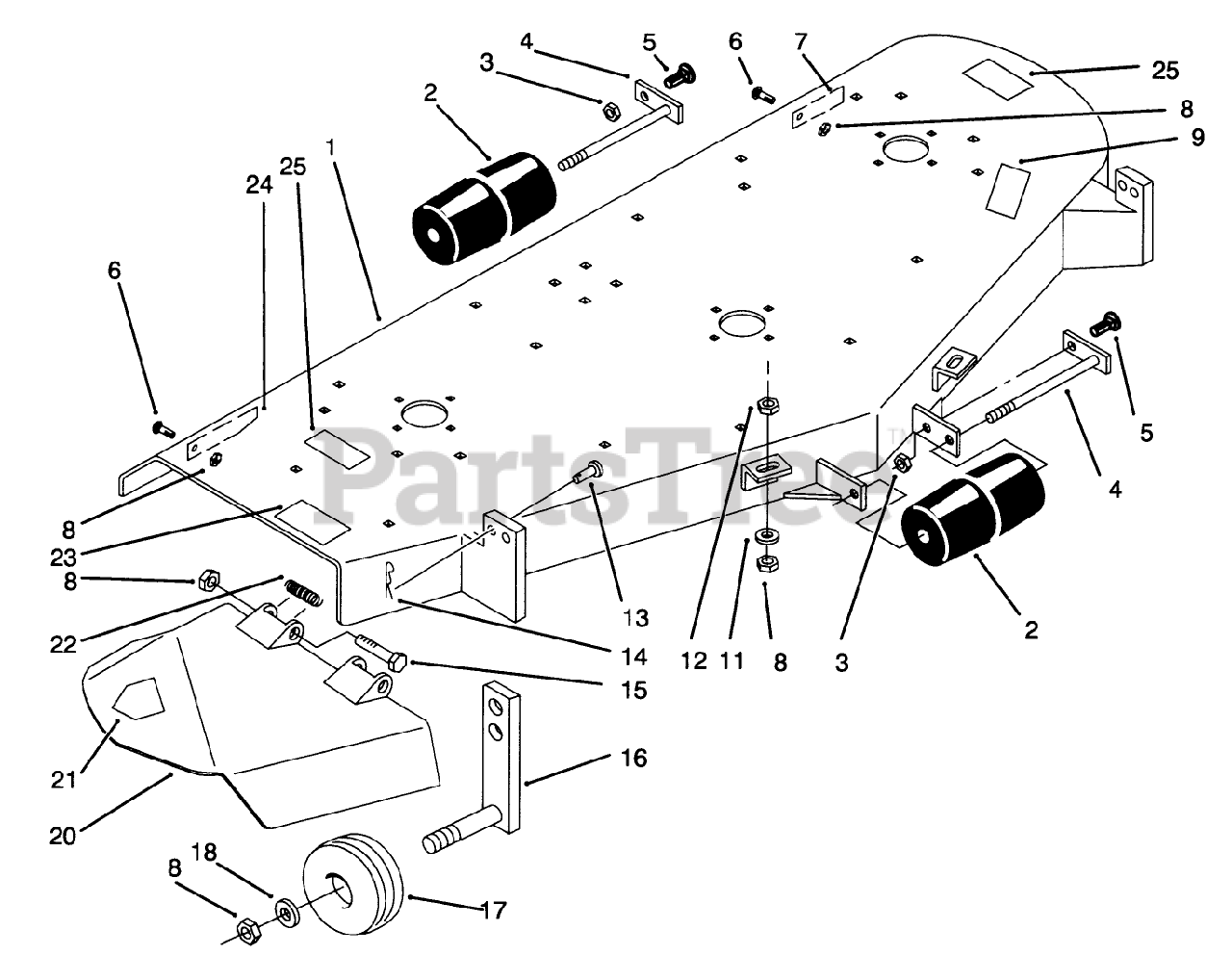

60" DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 92-7697

60" Deck & Safety Decal Assy. (Incl. Ref. #23 & 25)

$2960.99

$

Usually ships in 3-6 days

0

2

Toro 113349

ROLLER-ANTI SCALP

$67.99

$

In Stock, only 2 left!

0

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

4

Toro 113603

ROLLER-SHAFT

$40.99

$

Usually ships in 3-6 days

0

5

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

6

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 18

0

7

Toro 79-1290

Plate-Wear, L.H.
(Superseded to 79-1290-01)

$

$

Not available

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

9

Toro 68-3380

DECAL - WHEEL ADJUSTMENT

$11.99

$

Usually ships in 3-6 days

0

11

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 32128-43

NUT-FLANGE

$1.49

$

In Stock, only 4 left!

0

13

Toro 9329634

PIN-CLEVIS 3/8 X 1

$3.99

$

Usually ships in 3-6 days

0

14

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 13

0

15

Toro 323-42

SCREW-HH
(Superseded to 325-14)

$4.49

$

Usually ships in 3-6 days

0

16

Toro 68-2350

GAGE-WHEEL

$115.99

$

Usually ships in 3-6 days

0

17

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$22.99

$

In Stock, Qty 20+

0

18

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 92-6508

Chute & Safety Decal Assy. (Incl. Ref. #21)

$

$

Not available

21

Toro 93-1122

DECAL-DANGER

$8.99

$

In Stock, Qty 12

0

22

Toro 40-6230

SPRING

$38.99

$

Usually ships in 3-6 days

0

23

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

24

Toro 79-1240

Wear Plate RH
(Superseded to 79-1240-01)

$

$

Not available

25

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0
