78444 - Toro 44" Side-Discharge Mower Deck for 5xi Tractor (SN: 099000001 - 099999999) (1999) SPINDLE AND BLADE ASSEMBLY Parts Diagram

44" Side-Discharge Mower Deck for 5xi Tractor

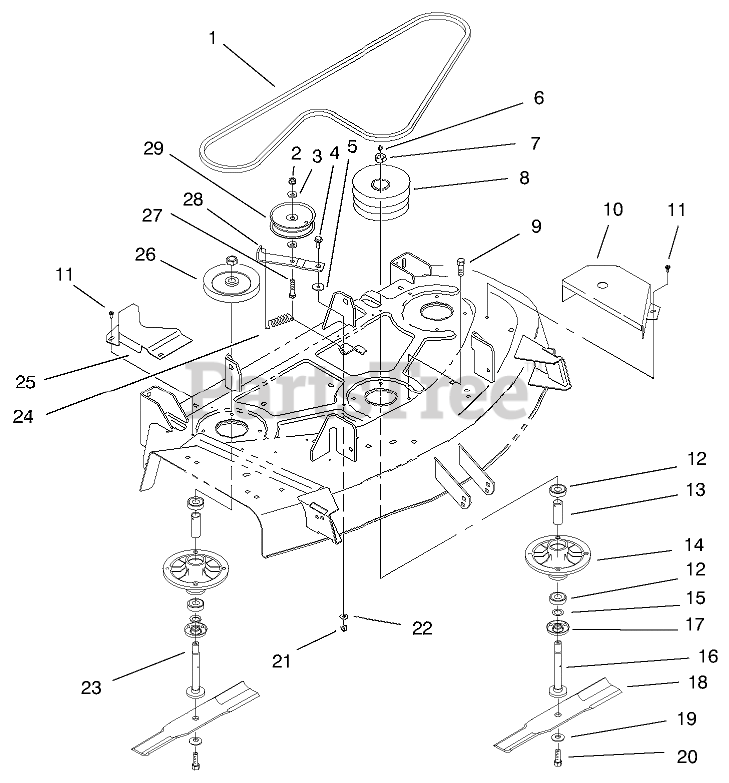

SPINDLE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 95-4228

V-BELT

$133.99

$

In Stock, only 1 left!

0

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

3

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 27-0410

SCREW-SHOULDER

$2.99

$

In Stock, Qty 5

0

5

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

6

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

7

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

8

Toro 94-7552

PULLEY-DOUBLE

$

$

Not available

9

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

10

Toro 95-4251-01

COVER-COVER

$

$

Not available

11

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

12

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 12

0

13

Toro 94-7959

SPACER - BEARING

$42.99

$

Usually ships in 3-6 days

0

14

Toro 88-4510

HOUSING-SPINDLE

$106.99

$

In Stock, Qty 7

0

15

Toro 80-4380

SPACER

$6.99

$

In Stock, Qty 12

0

16

Toro 94-7547

SHAFT-CENTER, SPINDLE

$107.99

$

Usually ships in 3-6 days

0

17

Toro 80-4360

SHIELD-BEARING

$18.99

$

In Stock, Qty 13

0

18

Toro 54-0010

Blade
(Superseded to 54-0010-03)

$33.99

$

In Stock, only 3 left!

0

19

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

20

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

21

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 94-7546

SHAFT-SPINDLE

$

$

Not available

24

Toro 57-6540

SPRING-EXTENSION

$

$

Not available

25

Toro 95-4252-01

Belt Cover
(Superseded to 95-4252-03)

$

$

Not available

26

Toro 94-7550

PULLEY

$

$

Not available

27

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 57-6520-03

Arm-Idler
(Superseded to 57-6520)

$

$

Not available

29

Toro 36-3220

PULLEY-IDLER

$33.99

$

In Stock, only 2 left!

0
