78444 - Toro 44" Side-Discharge Mower Deck for 5xi Tractor (SN: 099000001 - 099999999) (1999) DECK SUSPENSION ASSEMBLY Parts Diagram

44" Side-Discharge Mower Deck for 5xi Tractor

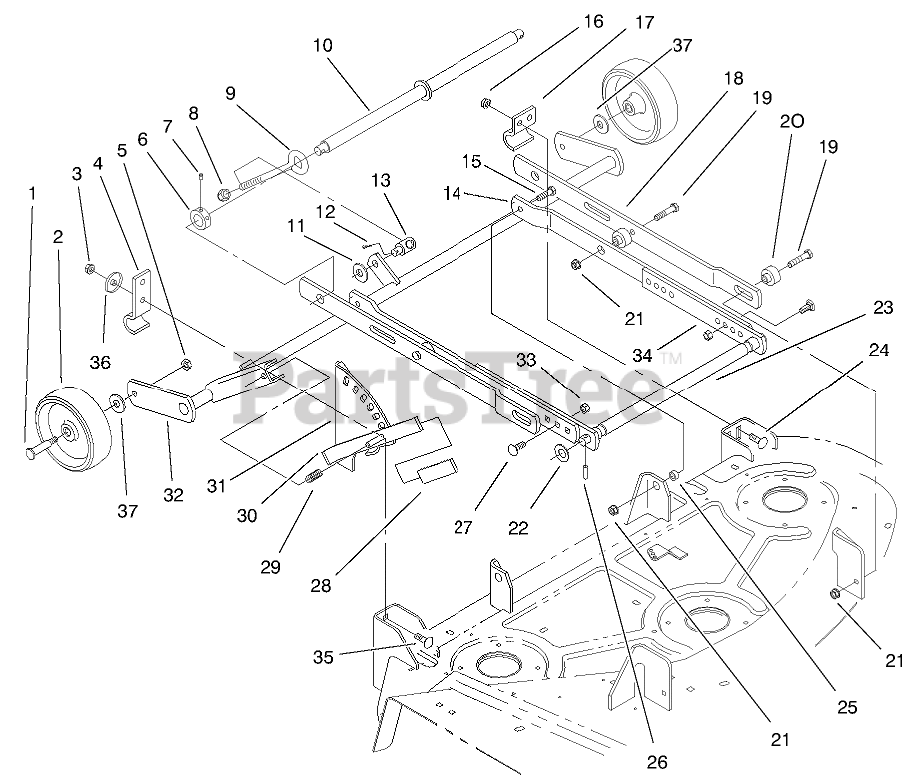

DECK SUSPENSION ASSEMBLY Parts Diagram

  • Title
1

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 20+

0

2

Toro 109375

WHEEL ASM

$

$

Not available

3

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

4

Toro 110837-03

BRACKET-PIVOT

$34.99

$

In Stock, Qty 5

0

5

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

6

Toro 94-7953

COLLAR

$31.99

$

Usually ships in 3-6 days

0

7

Toro 3245-2

SCREW-SET, HSH

$3.49

$

Usually ships in 3-6 days

0

8

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 94-7954

ROD-ADJUSTMENT, LEVEL

$78.99

$

Usually ships in 3-6 days

0

10

Toro 94-7943-01

SHAFT-LEVELER

$138.99

$

In Stock, only 1 left!

0

11

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

13

Toro 94-7802

TRUNNION

$39.99

$

Usually ships in 3-6 days

0

14

Toro 94-7801-01

DRAFTBAR

$

$

Not available

15

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

16

Toro 32128-40

NUT-FLANGE

$7.49

$

Usually ships in 3-6 days

0

17

$

$

Not available

18

Toro 98-5042

LH LEVELER ASM

$

$

Not available

18

Toro 98-5044

RH LEVELER ASM

$

$

Not available

19

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 115706

SPACER

$29.99

$

Usually ships in 3-6 days

0

21

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

22

Toro 3256-69

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

23

Toro 94-2130-01

Shaft-Draftbar
(Superseded to 94-2130-03)

$147.99

$

Usually ships in 3-6 days

0

24

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

25

Toro 114127

SPACER

$8.99

$

In Stock, only 2 left!

0

26

Toro 933216

PIN-ROLL, SPIROL

$3.49

$

In Stock, only 1 left!

0

27

Toro 3231-38

SCREW-CARR

$7.99

$

In Stock, Qty 11

0

28

$2.49

$

Usually ships in 3-6 days

0

29

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

30

Toro 94-7965-01

LEVER-HOC

$34.99

$

Usually ships in 3-6 days

0

31

Toro 94-7544-01

QUAD-DECK

$

$

Not available

32

Toro 94-7554-01

SUPPORT-WHEEL

$151.99

$

In Stock, only 1 left!

0

33

Toro 32152-2

NUT-LOCK, CONE

$1.99

$

In Stock, Qty 17

0

34

Toro 94-7804-01

DRAFTBAR-ADJUSTMENT

$

$

Not available

35

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

36

Toro 98-3479

WASHER-SUPPORT

$

$

Not available

37

Toro 9202424

Spacer
(Superseded to 920242)

$6.49

$

Usually ships in 3-6 days

0
