78442 - Toro 42" Rear-Discharge Mower Deck for 5xi Tractors (SN: 089000001 - 089999999) (1998) DECK ASSEMBLY Parts Diagram

42" Rear-Discharge Mower Deck for 5xi Tractors

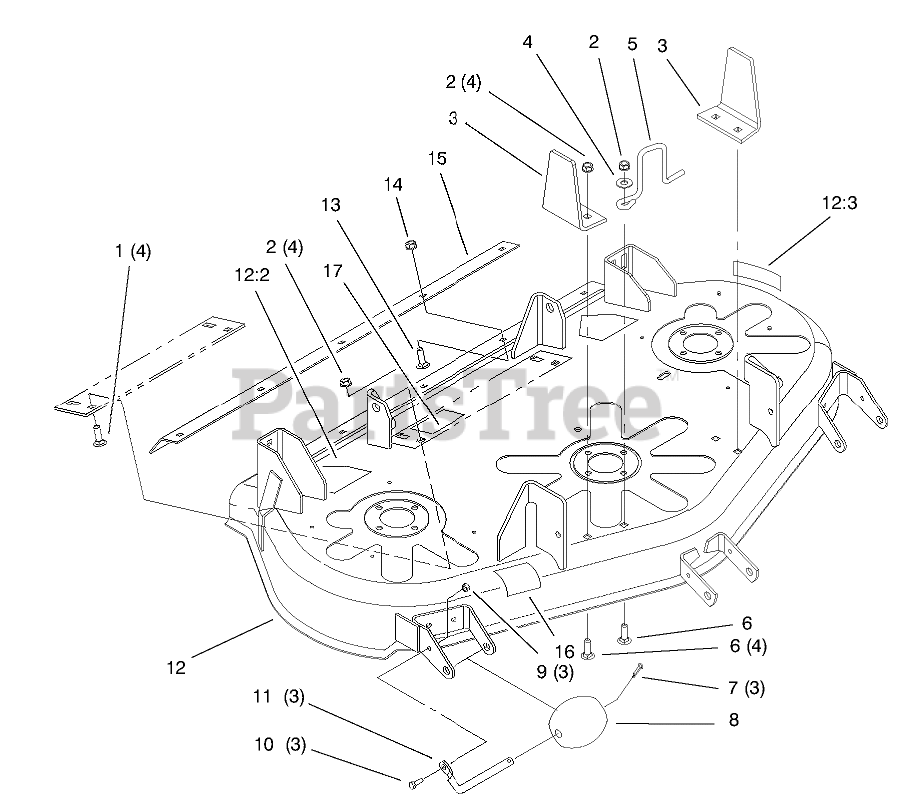

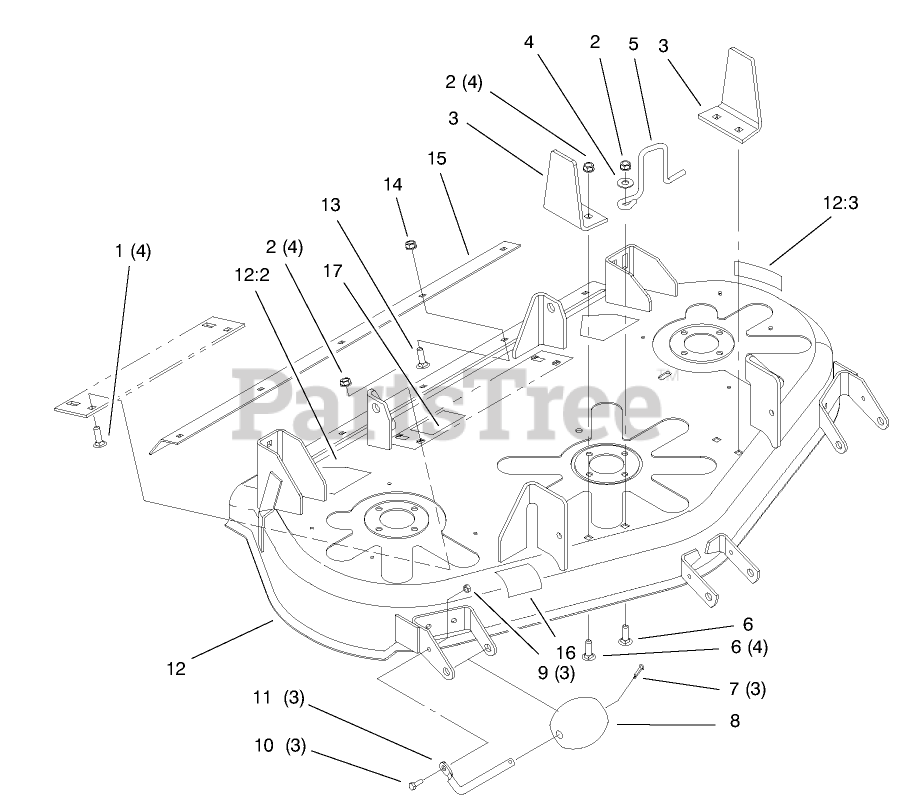

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 14

0

2

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 16

0

3

Toro 94-7642-01

BRACKET-GUIDE

$

$

Not available

4

Toro 3256-41

WASHER

$1.99

$

In Stock, Qty 6

0

5

Toro 95-3953

GUIDE-BELT

$

$

Not available

6

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

7

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

8

Toro 94-1599

Roller (Only On: 78353)

$13.99

$

In Stock, Qty 16

0

8

Toro 95-4057

Roller-Low Cut (Only On: 78442)

$

$

Not available

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 110847

ROLLER-SHAFT

$28.99

$

In Stock, only 3 left!

0

12

Toro 98-5088

Deck ASM (Only On: 78353)

$

$

Not available

12

Toro 98-5089

Deck ASM (Only On: 78442)

$

$

Not available

12:2

Toro 93-1122

Decal-Danger (Only On: 78353)

$9.99

$

In Stock, Qty 12

0

12:3

Toro 92-7108

Decal-Danger (Only On: 78353)

$7.49

$

Usually ships in 3-6 days

0

13

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 98-3494-01

DEFLECTOR

$

$

Not available

16

Toro 98-3481

DECAL-BELT ROUTING

$

$

Not available

17

Toro 98-3480

DECAL-BELT ROUTING

$

$

Not available
