78425 - Toro 42" Recycler Mower Deck (SN: 069000001 - 069999999) (1996) LIFT ASSEMBLY Parts Diagram

42" Recycler Mower Deck

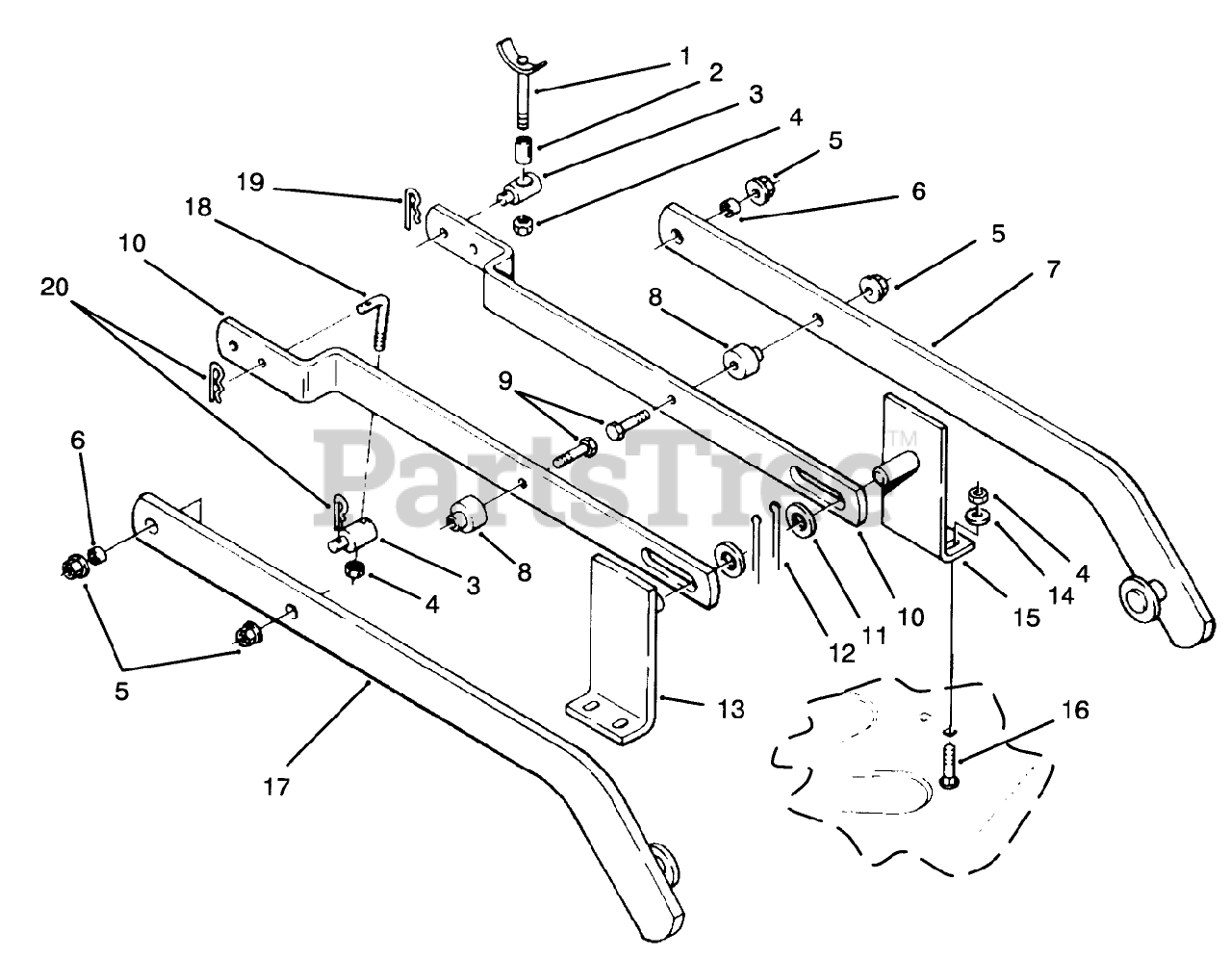

LIFT ASSEMBLY Parts Diagram

  • Title

1

Toro 116816

WLDMT-HANGER ROD

$

$

Not available

2

Toro 979180

SPACER .375 ID X 1.6

$

$

Not available

3

Toro 79-2790

TRUNNION

$43.99

$

Usually ships in 3-6 days

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

6

Toro 115705

SPACER

$

$

Not available

7

Toro 117071

Draft Bar LH
(Superseded to 117071-01)

$

$

Not available

8

Toro 115706

SPACER

$29.99

$

Usually ships in 3-6 days

0

9

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 120070

Bar-Leveler
(Superseded to 120070-01)

$

$

Not available

11

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

12

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

13

Toro 117110

Bracket RH
(Superseded to 117110-01)

$

$

Not available

14

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 117109

Bracket
(Superseded to 117109-01)

$

$

Not available

16

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

17

Toro 117072

Draft Bar RH
(Superseded to 117072-01)

$

$

Not available

18

Toro 121010

ROD-LIFT

$25.99

$

Usually ships in 3-6 days

0

19

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 13

0

20

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0
