78425 - Toro 42" Recycler Mower Deck (SN: 039000001 - 039999999) (1993) SUSPENSION ASSEMBLY Parts Diagram

42" Recycler Mower Deck

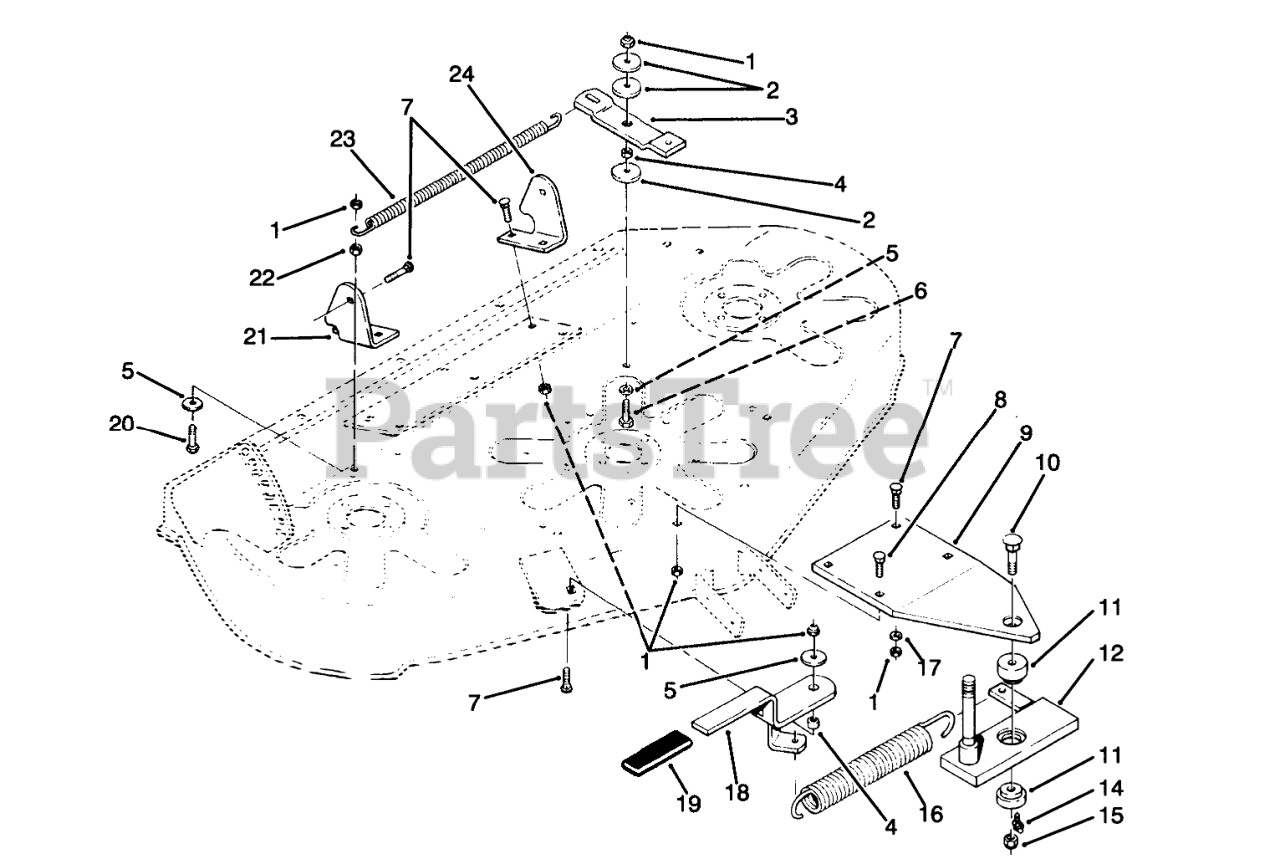

SUSPENSION ASSEMBLY Parts Diagram

  • Title

1

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

2

Toro 920249

Washer
(Superseded to 9202494)

$5.99

$

In Stock, only 2 left!

0

3

Toro 116171

Arm-Idler
(Superseded to 116171-01)

$30.99

$

Usually ships in 3-6 days

0

4

Toro 4627

SPACER

$15.99

$

Usually ships in 3-6 days

0

5

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

6

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

8

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 17

0

9

Toro 116411

Plate
(Superseded to 116411-01)

$

$

Not available

10

Toro 9002719

SCREW-CARR

$6.49

$

In Stock, only 1 left!

0

11

Toro 116621

BUSHING

$22.99

$

Usually ships in 3-6 days

0

12

Toro 116368

Countershaft
(Superseded to 116368-01)

$

$

Not available

14

Toro 111420

Fitting-Grease
(Superseded to 302-11)

$1.49

$

In Stock, only 2 left!

0

15

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 116167

Spring
(Superseded to 116167-01)

$

$

Not available

17

Toro 920246

Washer
(Superseded to 9202464)

$

$

Not available

18

Toro 117041

Lever
(Superseded to 117041-01)

$

$

Not available

19

Toro 103712

GRIP

$9.49

$

In Stock, only 1 left!

0

20

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

21

Toro 117104

Bracket RH
(Superseded to 117104-01)

$

$

Not available

22

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

23

Toro 116172

SPRING - EXTENSION

$43.99

$

Usually ships in 3-6 days

0

24

Toro 117103

Bracket LH
(Superseded to 117103-01)

$

$

Not available
