78425 - Toro 42" Recycler Mower Deck (SN: 039000001 - 039999999) (1993) DECK & COVER ASSEMBLY Parts Diagram

42" Recycler Mower Deck

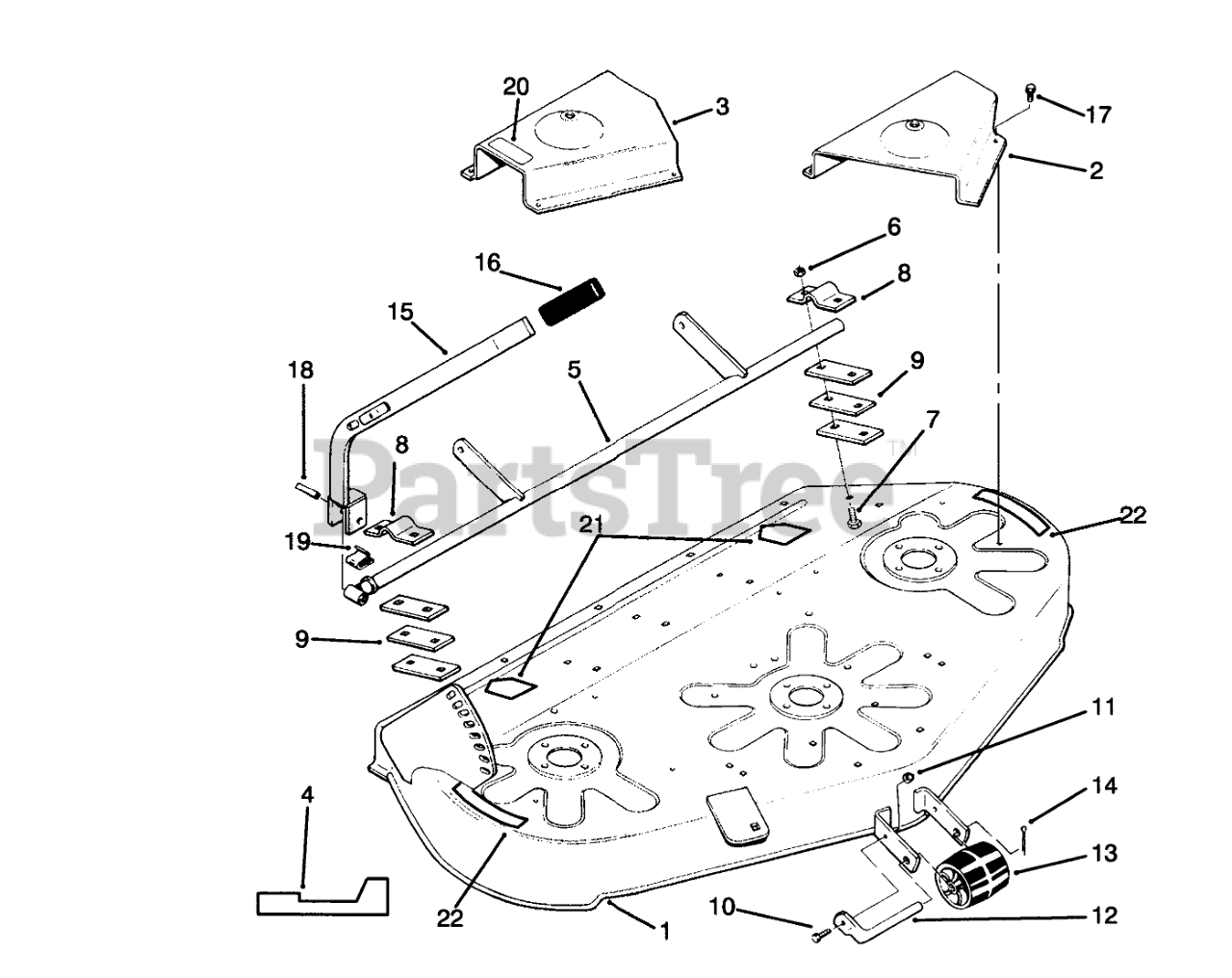

DECK & COVER ASSEMBLY Parts Diagram

  • Title

1

Toro 92-8018

Deck Assembly (Incl. Safety Decals)

$

$

Not available

2

Toro 116427

Belt Cover LH
(Superseded to 116427-01)

$

$

Not available

3

Toro 116426

Belt Cover RH
(Superseded to 116426-01)

$78.99

$

Usually ships in 3-6 days

0

4

Toro 79-1301

DECAL-42" RECYCLER
(Superseded to 92-9523)

$

$

Not available

5

Toro 118830

Lift Support
(Superseded to 118830-01)

$

$

Not available

6

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

7

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

8

Toro 110841

Camp

$8.99

$

Usually ships in 3-6 days

0

9

Toro 110840

Bar
(Superseded to 110840-03)

$22.99

$

In Stock, only 1 left!

0

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

12

Toro 110847

ROLLER-SHAFT

$28.99

$

In Stock, only 3 left!

0

13

Toro 108798

Roller
(Superseded to 94-1599)

$13.99

$

In Stock, Qty 16

0

14

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

15

Toro 79-0990

Lever
(Superseded to 79-0990-01)

$

$

Not available

16

Toro 103712

GRIP

$9.49

$

In Stock, only 1 left!

0

17

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

18

Toro 933244

SPIROL PIN 3/8X1 1/2

$

$

Not available

19

Toro 112730

CLIP-SPRING

$

$

Not available

20

Toro 111655

DECAL-HOC

$4.49

$

Usually ships in 3-6 days

0

21

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

22

Toro 76-4070

DECAL - DANGER

$23.99

$

Usually ships in 3-6 days

0
