78420 - Toro 42" Rear-Discharge Mower Deck (SN: 049000001 - 049999999) (1994) SPINDLES, PULLEYS AND BELTS Parts Diagram

42" Rear-Discharge Mower Deck

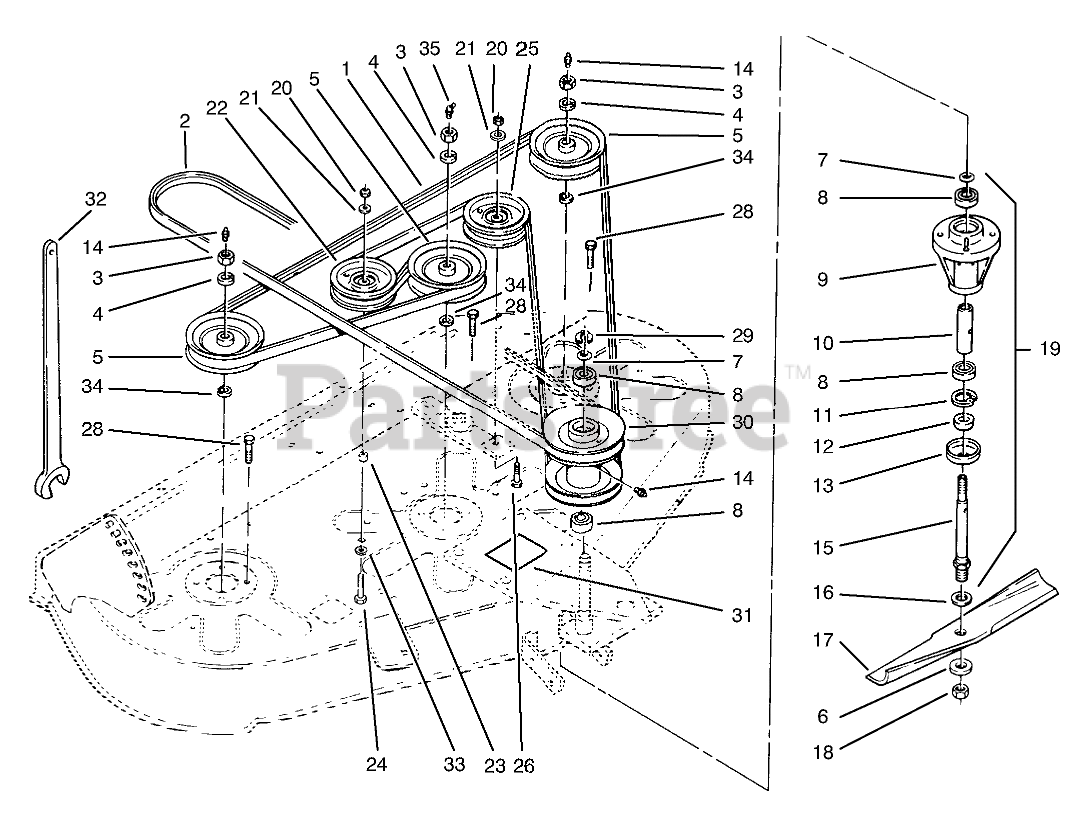

SPINDLES, PULLEYS AND BELTS Parts Diagram

  • Title

1

Toro 116409

V-BELT

$192.99

$

Usually ships in 3-6 days

0

2

Toro 116408

V-BELT

$130.99

$

Usually ships in 3-6 days

0

3

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

4

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

5

Toro 79-7510

PULLEY-SPINDLE

$92.99

$

In Stock, only 1 left!

0

6

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

7

Toro 971015

O RING

$1.99

$

In Stock, Qty 6

0

8

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 15

0

9

Toro 114568

HOUSING-SPINDLE

$99.99

$

In Stock, only 1 left!

0

10

Toro 116085

TUBE

$31.99

$

In Stock, only 1 left!

0

11

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 12

0

12

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

13

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$14.99

$

Usually ships in 3-6 days

0

14

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

15

Toro 112674

SHAFT-SPINDLE

$84.99

$

In Stock, Qty 5

0

16

Toro 920257

Washer
(Superseded to 9202574)

$1.99

$

In Stock, Qty 20+

0

17

Toro 121020

SERV ASS'Y-BLADE PKG

$222.99

$

Usually ships in 3-6 days

0

18

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 5

0

19

Toro 111726

ASSY SPINDLE 42-48MW

$264.99

$

In Stock, Qty 6

0

20

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 92-7084

PULLEY-IDLER, FLAT

$38.99

$

In Stock, only 1 left!

0

23

Toro 110856

SPACER

$

$

Not available

24

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

25

Toro 116859

PULLEY-FLAT IDLER

$79.99

$

In Stock, only 1 left!

0

26

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 9080326

SCREW-HH

$2.49

$

In Stock, Qty 11

0

29

Toro 105005

RETAINING RING

$

$

Not available

30

Toro 116425

PULLEY-COUNTER SHAFT

$651.99

$

Usually ships in 3-6 days

0

31

Toro 116286

DECAL-BELT INSTALL

$8.99

$

Usually ships in 3-6 days

0

32

Toro 114647

Spindle Wrench

$

$

Not available

33

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

34

Toro 9202154

WASHER-FLAT

$1.99

$

In Stock, Qty 5

0

35

Toro 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0
