78420 - Toro 42" Rear-Discharge Mower Deck (SN: 039000001 - 039999999) (1993) SPINDLES, PULLEYS AND BELTS Parts Diagram

42" Rear-Discharge Mower Deck

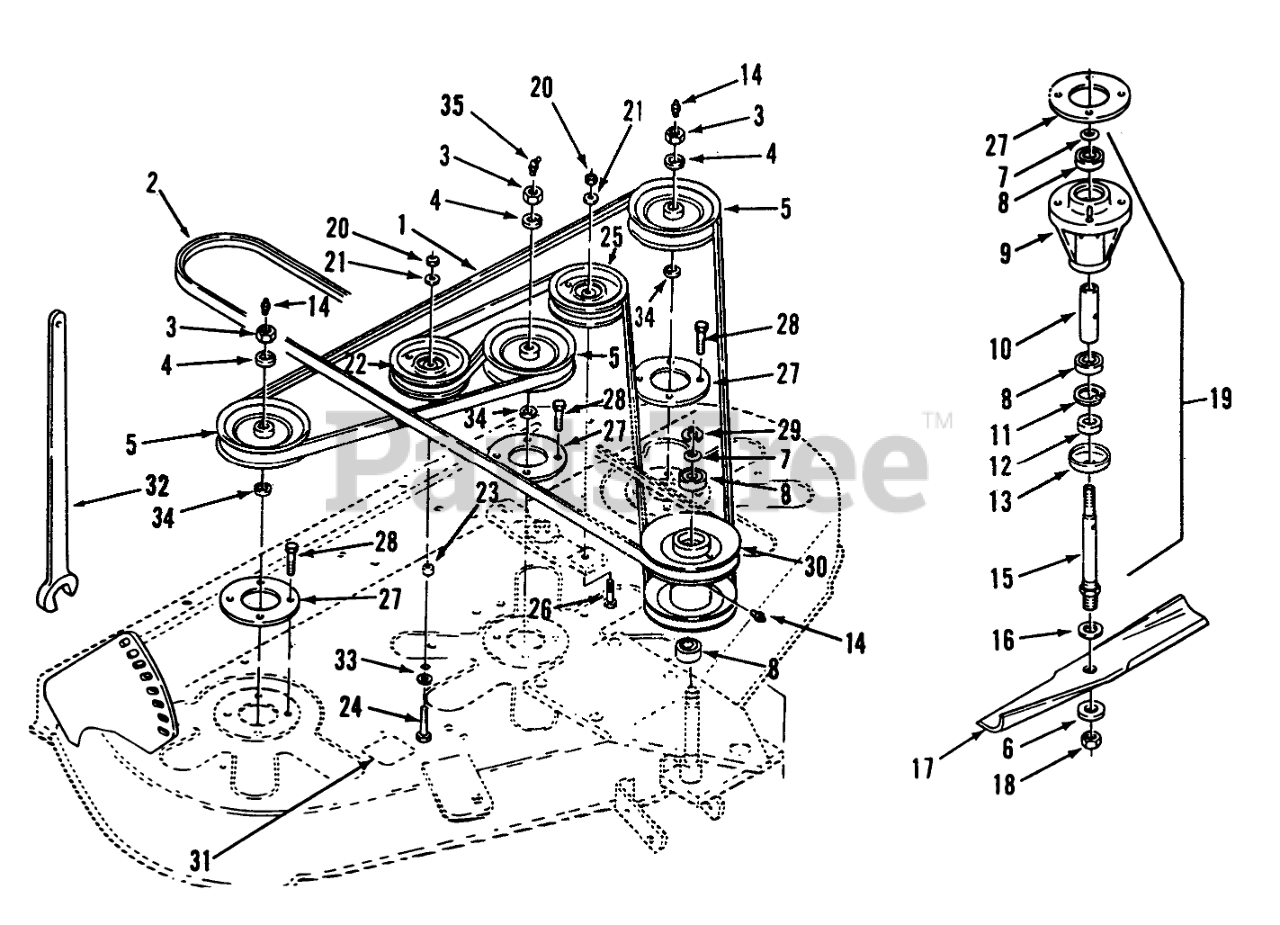

SPINDLES, PULLEYS AND BELTS Parts Diagram

  • Title
1

Toro 116409

V-BELT

$218.99

$

Usually ships in 3-6 days

0

2

Toro 116408

V-BELT

$147.99

$

Usually ships in 3-6 days

0

3

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

4

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

5

Toro 79-7510

PULLEY-SPINDLE

$104.99

$

In Stock, only 1 left!

0

6

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

7

Toro 971015

O RING

$2.49

$

In Stock, Qty 6

0

8

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 12

0

9

Toro 114568

HOUSING-SPINDLE

$101.99

$

In Stock, only 1 left!

0

10

$33.99

$

In Stock, only 1 left!

0

11

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 12

0

12

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

13

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$15.99

$

Usually ships in 3-6 days

0

14

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

15

Toro 112674

SHAFT-SPINDLE

$85.99

$

In Stock, Qty 5

0

16

Toro 920257

Washer
(Superseded to 9202574)

$1.99

$

In Stock, Qty 20+

0

17

Toro 121020

SERV ASS'Y-BLADE PKG

$252.99

$

Usually ships in 3-6 days

0

18

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 5

0

19

Toro 110172

Spindle Assembly
(Superseded to 111726)

$266.99

$

In Stock, Qty 5

0

20

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

21

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

22

Toro 115119

Pulley-Idler
(Superseded to 92-7084)

$38.99

$

In Stock, only 1 left!

0

23

Toro 110856

SPACER

$

$

Not available

24

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

25

Toro 116859

PULLEY-FLAT IDLER

$90.99

$

In Stock, only 1 left!

0

26

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

27

Toro 116073

SPACER-SPINDLE

$73.99

$

Usually ships in 3-6 days

0

28

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 105005

RETAINING RING

$

$

Not available

30

Toro 116425

PULLEY-COUNTER SHAFT

$738.99

$

Usually ships in 3-6 days

0

31

Toro 116286

DECAL-BELT INSTALL

$11.99

$

Usually ships in 3-6 days

0

32

Toro 114647

Spindle Wrench

$

$

Not available

33

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

34

Toro 9202154

WASHER-FLAT

$3.49

$

In Stock, Qty 5

0

35

Toro 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0
