78415 - Toro 42" Side-Discharge Mower Deck (SN: 079000001 - 079999999) (1997) PULLEY ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck

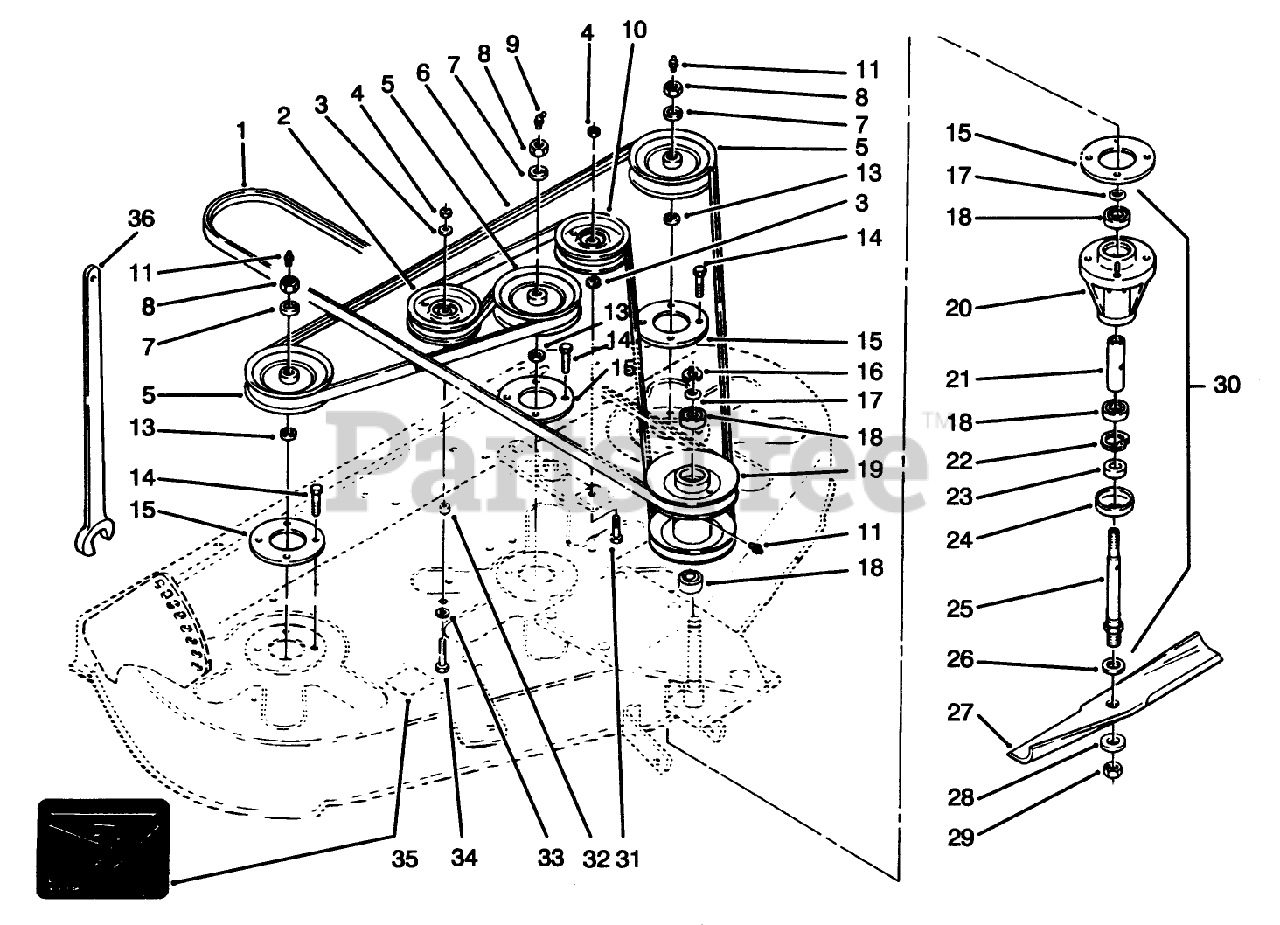

PULLEY ASSEMBLY Parts Diagram

  • Title

1

Toro 116160

V-BELT

$70.99

$

Usually ships in 3-6 days

0

2

Toro 115119

Pulley-Idler
(Superseded to 92-7084)

$38.99

$

In Stock, only 1 left!

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 79-7510

PULLEY-SPINDLE

$92.99

$

In Stock, only 1 left!

0

6

Toro 116507

V-BELT

$109.99

$

Usually ships in 3-6 days

0

7

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

9

Toro 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0

10

Toro 116859

PULLEY-FLAT IDLER

$79.99

$

In Stock, only 1 left!

0

11

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

13

Toro 920215

Washer
(Superseded to 9202154)

$1.99

$

In Stock, Qty 5

0

14

Toro 9080356

Bolt

$

$

Currently unavailable

15

Toro 116073

SPACER-SPINDLE

$73.99

$

Usually ships in 3-6 days

0

16

Toro 105005

RETAINING RING

$

$

Not available

17

Toro 971015

O RING

$1.99

$

In Stock, Qty 6

0

18

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 15

0

19

Toro 116165

PULLEY-COUNTER SHAFT

$

$

Not available

20

Toro 114568

HOUSING-SPINDLE

$99.99

$

In Stock, only 1 left!

0

21

Toro 116085

TUBE

$31.99

$

In Stock, only 1 left!

0

22

Toro 32120-42

RING-RETAINING

$1.49

$

In Stock, Qty 12

0

23

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

24

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$14.99

$

Usually ships in 3-6 days

0

25

Toro 112674

SHAFT-SPINDLE

$84.99

$

In Stock, Qty 5

0

26

Toro 920257

Washer
(Superseded to 9202574)

$1.99

$

In Stock, Qty 20+

0

27

Toro 117192

BLADE KIT

$101.99

$

Usually ships in 3-6 days

0

28

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

29

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 5

0

30

Toro 110172

Spindle Assy. (Incl. Ref. #15, 17, 18 & 20-29)
(Superseded to 111726)

$264.99

$

In Stock, Qty 6

0

31

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 4627

SPACER

$15.99

$

Usually ships in 3-6 days

0

34

Toro 3231-6

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

35

Toro 116286

DECAL-BELT INSTALL

$8.99

$

Usually ships in 3-6 days

0

36

Toro 114647

Spindle Wrench

$

$

Not available
