78415 - Toro 42" Side-Discharge Mower Deck (SN: 069000001 - 069999999) (1996) DECK & DECAL ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck

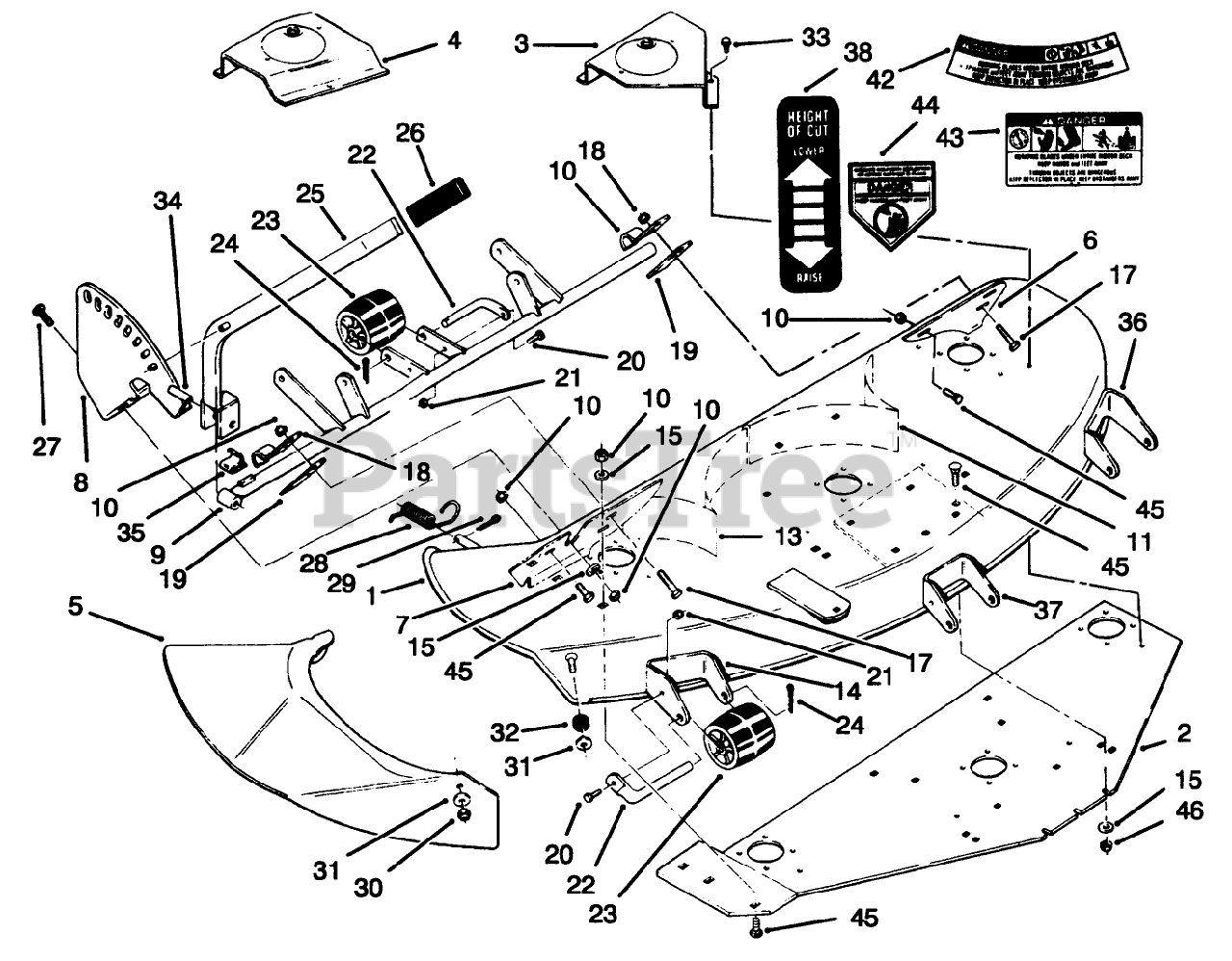

DECK & DECAL ASSEMBLY Parts Diagram

  • Title

1

Toro 92-9802

42" DECK WA W/DECALS

$1965.99

$

Usually ships in 3-6 days

0

2

Toro 79-6160

Plate-Support
(Superseded to 79-6160-01)

$

$

Not available

3

Toro 116204

Belt Cover LH
(Superseded to 116204-01)

$

$

Not available

4

Toro 116236

Belt Cover RH
(Superseded to 116236-01)

$109.99

$

Usually ships in 3-6 days

0

5

Toro 88-2750

Chute Ass-y (Incl. Ref. #44)
(Superseded to 99-3708)

$263.99

$

Usually ships in 3-6 days

0

6

Toro 116871

PLATE-WEAR L.H. R

$

$

Not available

7

Toro 79-2831

Plate-Wear
(Superseded to 79-2831-03)

$

$

Not available

8

Toro 79-2840

Quadrant
(Superseded to 79-2840-01)

$

$

Not available

9

Toro 119100

Support-Lift
(Superseded to 119100-01)

$

$

Not available

10

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 116857

BAFFLE-DECK LH

$

$

Not available

13

Toro 116856

BAFFLE-DECK RH

$

$

Not available

14

Toro 115050

BRKT-ROLLER R

$

$

Not available

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

17

Toro 3231-5

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

18

Toro 110837

Clamp
(Superseded to 110837-03)

$34.99

$

In Stock, Qty 5

0

19

Toro 110838

Bar
(Superseded to 110838-03)

$26.99

$

Usually ships in 3-6 days

0

20

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

22

Toro 110847

ROLLER-SHAFT

$28.99

$

In Stock, only 3 left!

0

23

Toro 108798

Roller
(Superseded to 94-1599)

$12.99

$

In Stock, Qty 16

0

24

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

25

Toro 79-1010

Lever
(Superseded to 79-1010-01)

$149.99

$

Usually ships in 3-6 days

0

26

Toro 103712

GRIP

$9.49

$

In Stock, only 1 left!

0

27

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

28

Toro 116082

Spring
(Superseded to 93-1631)

$29.99

$

Usually ships in 3-6 days

0

29

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

30

Toro 915236

Nut
(Superseded to 9152366)

$3.49

$

In Stock, only 1 left!

0

31

Toro 116083

Washer
(Superseded to 93-1633)

$2.99

$

In Stock, Qty 15

0

32

Toro 116080

BUSHING-PIVOT

$19.99

$

Usually ships in 3-6 days

0

33

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

34

Toro 933245

SPIROL PIN

$

$

Not available

35

Toro 112730

CLIP-SPRING

$47.99

$

Usually ships in 3-6 days

0

36

Toro 115051

BRKT-ROLER R

$33.99

$

Usually ships in 3-6 days

0

37

Toro 115060

BRKT-ROLLER

$

$

Not available

38

Toro 111655

DECAL-HOC

$3.49

$

Usually ships in 3-6 days

0

42

Toro 76-4070

DECAL - DANGER

$19.99

$

Usually ships in 3-6 days

0

43

Toro 66-1340

DECAL-DANGER, THROWN OBJECT

$10.99

$

In Stock, only 1 left!

0

44

Toro 54-9220

DECAL-DANGER
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 12

0

45

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 17

0

46

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0
