78415 - Toro 42" Side-Discharge Mower Deck (SN: 059000001 - 059999999) (1995) DECK ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck

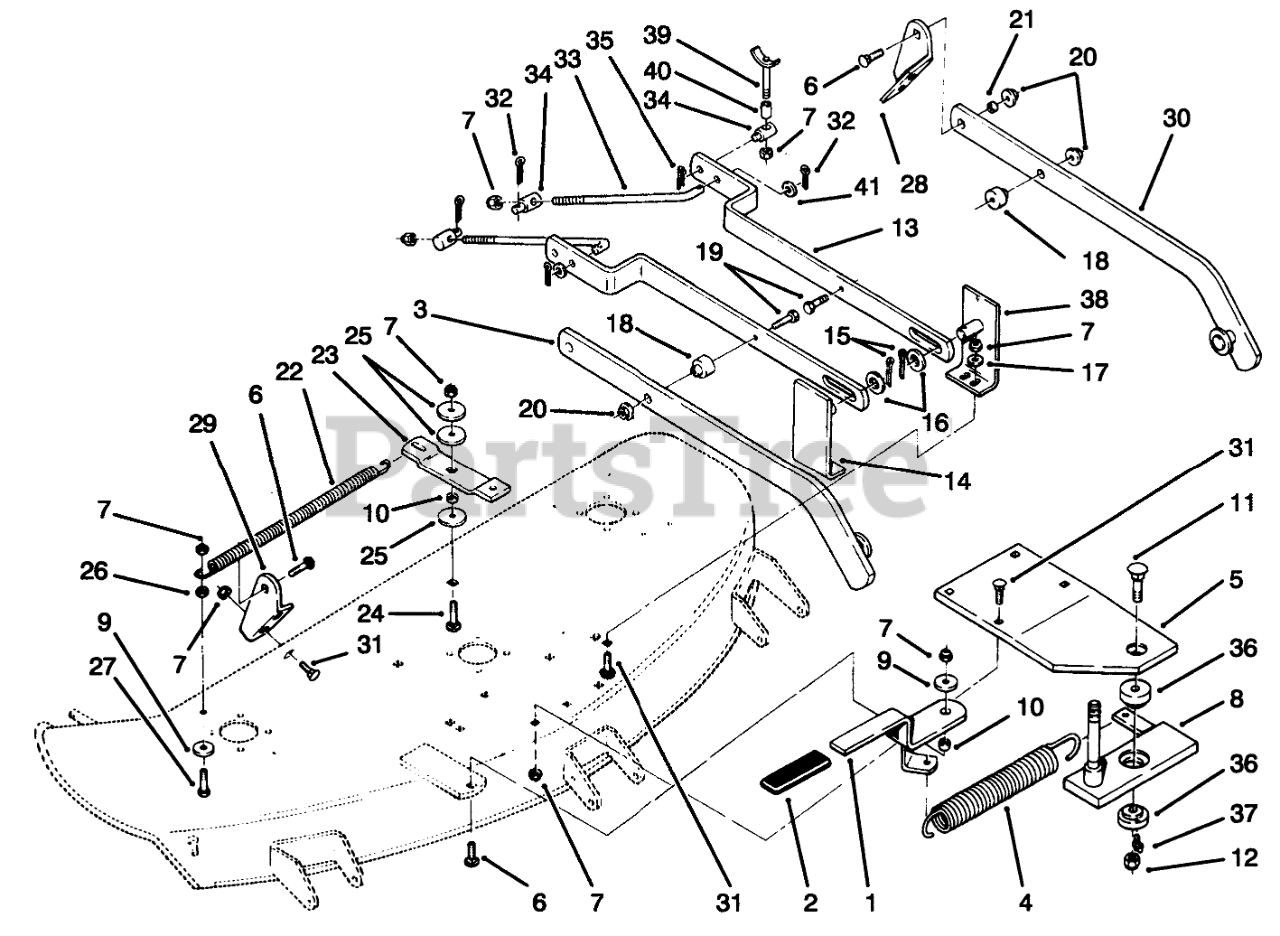

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 116510

Lever
(Superseded to 116510-01)

$

$

Not available

2

Toro 103712

GRIP

$9.49

$

In Stock, only 1 left!

0

3

Toro 117072

Draft Bar RH
(Superseded to 117072-01)

$

$

Not available

4

Toro 116167

Spring
(Superseded to 116167-01)

$

$

Not available

5

Toro 116620

Plate
(Superseded to 116620-01)

$

$

Not available

6

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

7

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

8

Toro 116161

Countershaft
(Superseded to 116161-01)

$400.99

$

In Stock, only 1 left!

0

9

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

10

Toro 4827

Spacer

$

$

Currently unavailable

11

Toro 900271

Bolt
(Superseded to 9002719)

$6.49

$

In Stock, only 1 left!

0

12

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 120070

Bar-Leveler
(Superseded to 120070-01)

$

$

Not available

14

Toro 119090

Bracket L.H.
(Superseded to 119090-01)

$

$

Not available

15

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

16

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 115706

SPACER

$29.99

$

Usually ships in 3-6 days

0

19

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

21

Toro 115705

SPACER

$

$

Not available

22

Toro 116172

SPRING - EXTENSION

$51.99

$

Usually ships in 3-6 days

0

23

Toro 116171

Arm-Idler
(Superseded to 116171-01)

$36.99

$

Usually ships in 3-6 days

0

24

Toro 3231-4

SCREW-CARR

$3.99

$

In Stock, Qty 20+

0

25

Toro 920249

Washer
(Superseded to 9202494)

$5.99

$

In Stock, only 2 left!

0

26

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

27

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

28

Toro 115711

Bracket LH
(Superseded to 115711-01)

$

$

Not available

29

Toro 115710

Bracket RH
(Superseded to 115710-01)

$

$

Not available

30

Toro 117071

Draft Bar LH
(Superseded to 117071-01)

$

$

Not available

31

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

32

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

33

Toro 119060

ROD

$

$

Not available

34

Toro 79-2790

TRUNNION

$43.99

$

Usually ships in 3-6 days

0

35

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

36

Toro 116621

BUSHING

$25.99

$

Usually ships in 3-6 days

0

37

Toro 111420

Fitting-Grease
(Superseded to 302-11)

$1.99

$

In Stock, only 2 left!

0

38

Toro 119080

Bracket R.H.
(Superseded to 119080-01)

$

$

Not available

39

Toro 116816

WLDMT-HANGER ROD

$

$

Not available

40

Toro 979180

SPACER .375 ID X 1.6

$

$

Not available

41

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
