78415 - Toro 42" Side-Discharge Mower Deck (SN: 039000001 - 039999999) (1993) PULLEY ASSEMBLY Parts Diagram

42" Side-Discharge Mower Deck

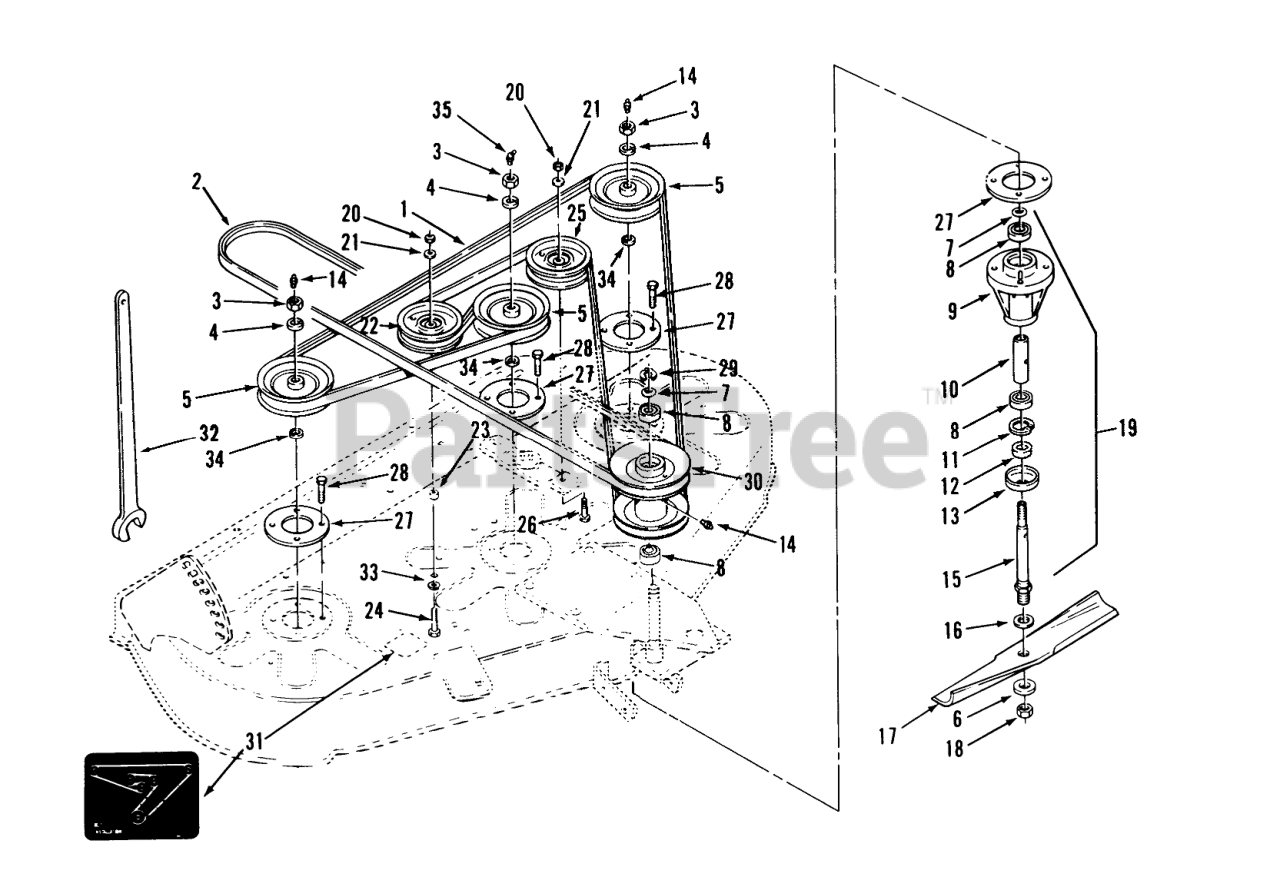

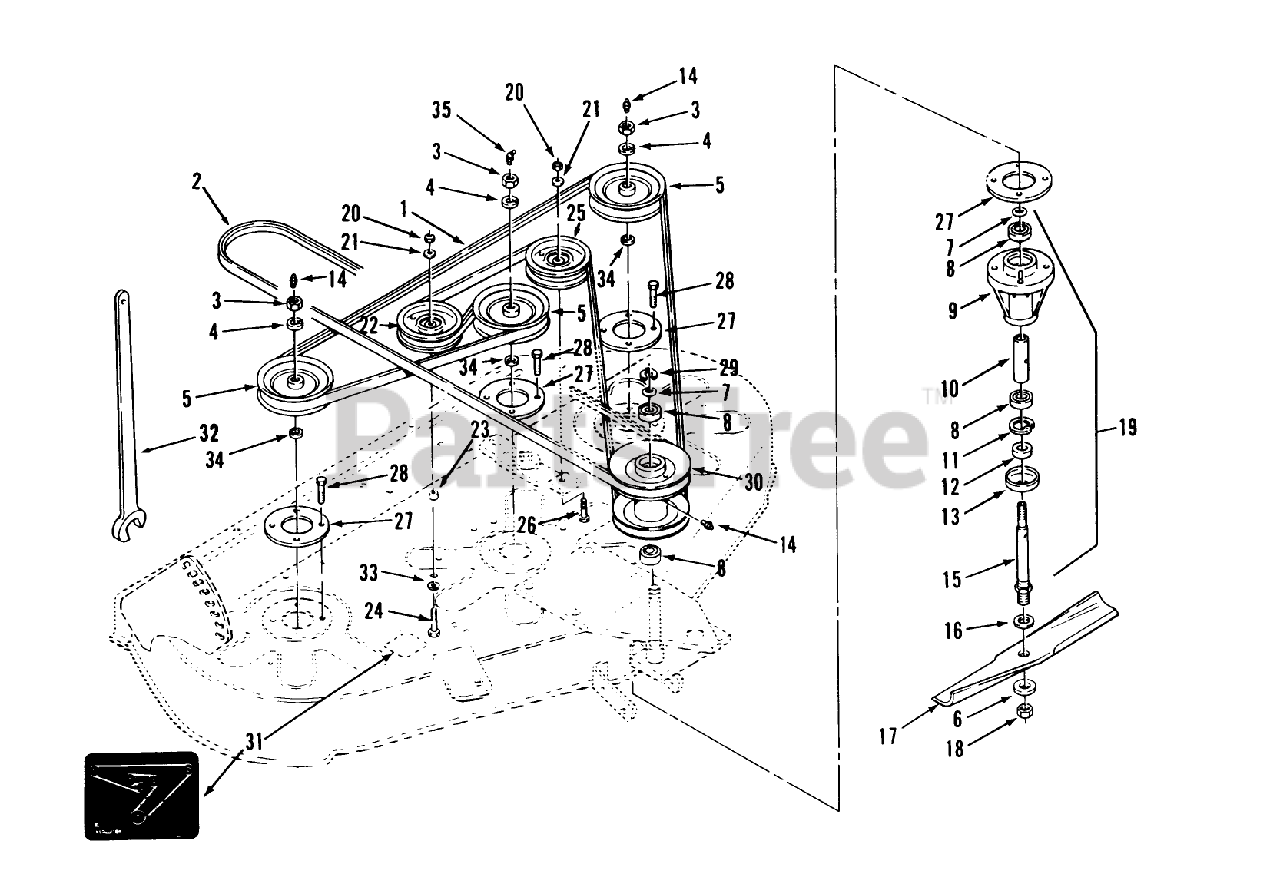

PULLEY ASSEMBLY Parts Diagram

  • Title
1

Toro 116507

V-BELT

$124.99

$

Usually ships in 3-6 days

0

2

Toro 116160

V-BELT

$69.99

$

Usually ships in 3-6 days

0

3

Toro 3220-6

NUT-JAM

$1.49

$

In Stock, Qty 12

0

4

Toro 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

5

Toro 79-7510

PULLEY-SPINDLE

$104.99

$

In Stock, only 1 left!

0

6

Toro 3256-28

WASHER-FLAT

$3.99

$

In Stock, Qty 20+

0

7

Toro 971015

O RING

$2.49

$

In Stock, Qty 20+

0

8

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

9

Toro 114568

HOUSING-SPINDLE

$101.99

$

In Stock, only 1 left!

0

10

$33.99

$

In Stock, only 1 left!

0

11

Toro 936028

Ring-Snap
(Superseded to 32120-42)

$1.49

$

In Stock, Qty 12

0

12

Toro 106068

SPACER-BLADE

$7.99

$

In Stock, Qty 13

0

13

Toro 106067

CUP-SPINDLE
(Superseded to 106067-03)

$15.99

$

Usually ships in 3-6 days

0

14

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

15

Toro 112674

SHAFT-SPINDLE

$85.99

$

In Stock, Qty 6

0

16

Toro 920257

Washer
(Superseded to 9202574)

$1.99

$

In Stock, Qty 20+

0

17

Toro 117192

BLADE KIT

$144.99

$

Usually ships in 3-6 days

0

18

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 13

0

19

Toro 110172

Spindle Assembly (Incl. ref. #7-15)
(Superseded to 111726)

$266.99

$

In Stock, Qty 5

0

20

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Toro 115119

Pulley-Idler
(Superseded to 92-7084)

$38.99

$

In Stock, only 2 left!

0

23

Toro 4627

SPACER

$

$

Not available

24

Toro 3231-6

SCREW-CARR

$2.99

$

In Stock, Qty 19

0

25

Toro 116859

PULLEY-FLAT IDLER

$90.99

$

In Stock, only 1 left!

0

26

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 116073

SPACER-SPINDLE

$73.99

$

Usually ships in 3-6 days

0

28

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

29

Toro 105005

RETAINING RING

$

$

Not available

30

Toro 116165

PULLEY-COUNTER SHAFT

$

$

Not available

31

Toro 116286

DECAL-BELT INSTALL

$11.99

$

Usually ships in 3-6 days

0

32

Toro 114647

Spindle Wrench

$

$

Not available

34

Toro 920215

Washer
(Superseded to 9202154)

$3.49

$

In Stock, Qty 15

0

35

Toro 1481

FITTING-GREASE

$6.49

$

In Stock, Qty 10

0
