78410 - Toro 38" Recycler Mower Deck (SN: 059000001 - 059999999) (1995) SPINDLE ASSEMBLY Parts Diagram

38" Recycler Mower Deck

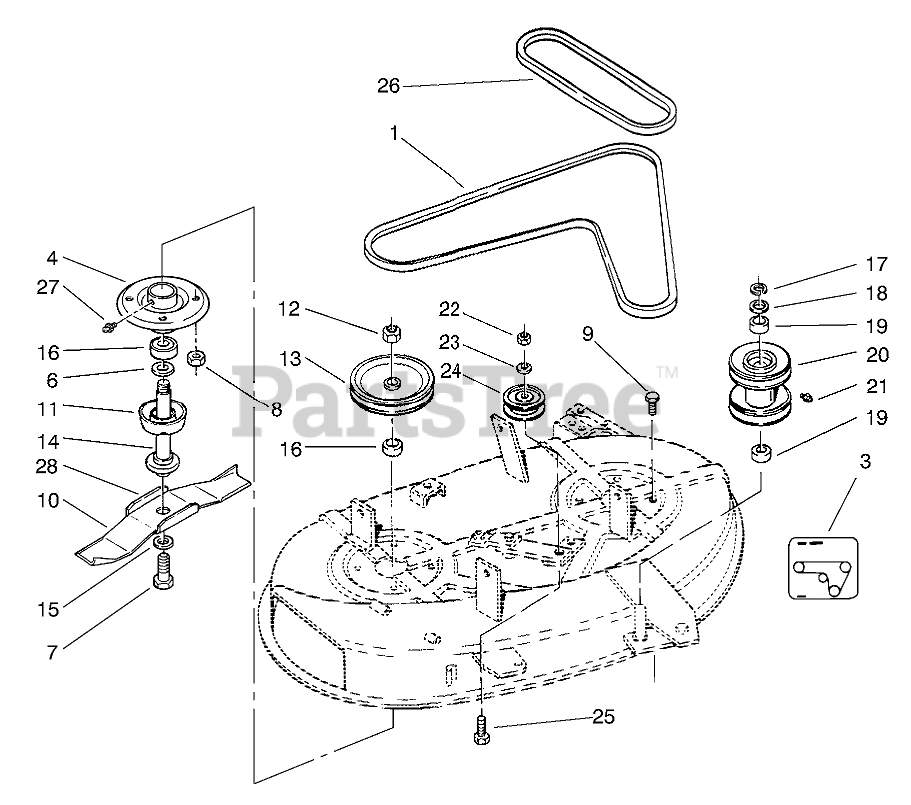

SPINDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 116667

V-BELT

$72.99

$

Usually ships in 3-6 days

0

3

Toro 117137

Decal-Routing
(Superseded to 117-0033)

$8.49

$

Usually ships in 3-6 days

0

4

Toro 79-1050

Housing-Spindle
(Superseded to 79-1050-03)

$267.99

$

Usually ships in 3-6 days

0

5

Toro 79-2780

SPACER

$23.99

$

In Stock, only 1 left!

0

6

Toro 80-4390

SPACER-HARDNED

$4.49

$

Usually ships in 3-6 days

0

7

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

10

Toro 79-3061

Blade
(Superseded to 14-7799)

$71.99

$

In Stock, only 3 left!

0

11

Toro 80-4370

SHIELD-BEARING

$18.99

$

In Stock, only 1 left!

0

12

Toro 3219-7

NUT-HEX

$1.99

$

In Stock, Qty 9

0

13

Toro 79-3800

PULLEY

$130.99

$

Usually ships in 3-6 days

0

14

Toro 80-4352

SHAFT-SPINDLE

$315.99

$

Usually ships in 3-6 days

0

15

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

16

Toro 79-1090

BEARING-BALL
(Superseded to 251-318)

$17.99

$

In Stock, only 3 left!

0

17

Toro 105005

RETAINING RING

$

$

Not available

18

Toro 971015

O RING

$2.49

$

In Stock, Qty 6

0

19

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 12

0

20

Toro 116165

PULLEY-COUNTER SHAFT

$

$

Not available

21

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

24

Toro 93-1622

PULLEY-IDLER

$42.99

$

In Stock, only 3 left!

0

25

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 116666

V-BELT

$

$

Not available

27

Toro 302-16

ZERK FITTING

$

$

Not available

28

Toro 80-0510

Stiffener
(Superseded to 80-0510-03)

$19.99

$

In Stock, Qty 7

0
