78410 - Toro 38" Recycler Mower Deck (SN: 059000001 - 059999999) (1995) DECK ASSEMBLY Parts Diagram

38" Recycler Mower Deck

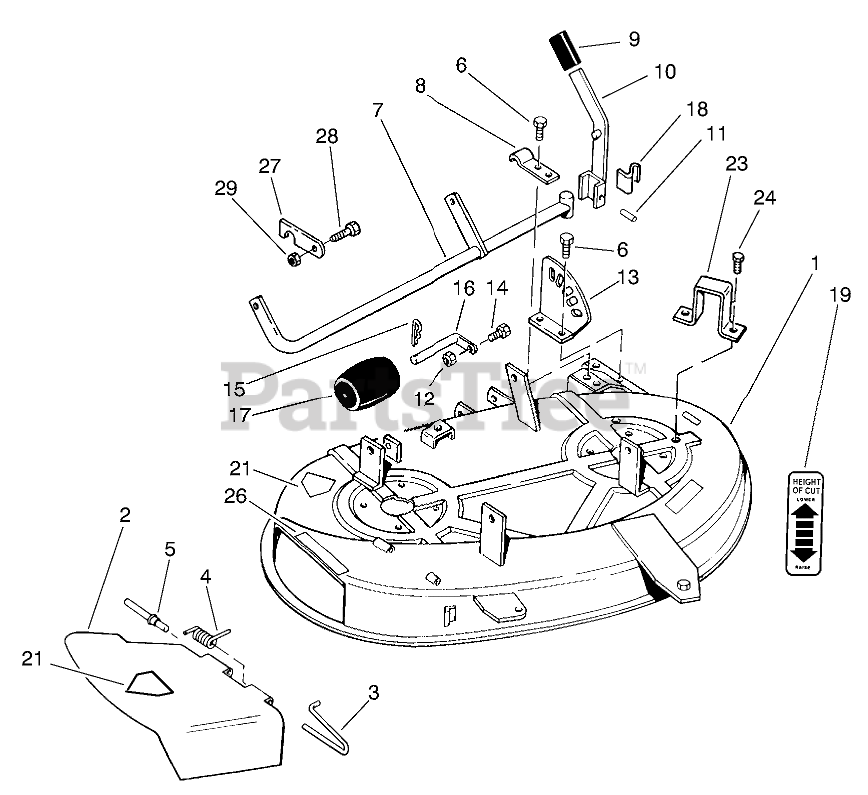

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 92-5786

Deck-Mower (Incl. Ref.# 13, 21 & 26)

$

$

Not available

2

Toro 92-5788

Chute-Discharge (Incl. Ref.# 25)

$

$

Not available

3

Toro 119730

ROD-HINGE FRONT

$

$

Not available

4

Toro 119691

SPRING-TORSION

$

$

Not available

5

Toro 119720

ROD-HINGE REAR

$122.99

$

Usually ships in 3-6 days

0

6

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

7

Toro 120700

Shaft-Lift
(Superseded to 120700-01)

$

$

Not available

8

Toro 110846

Bracket-Pivot
(Superseded to 110846-03)

$

$

Not available

9

Toro 103712

GRIP

$9.49

$

In Stock, only 1 left!

0

10

Toro 79-1030

Lever
(Superseded to 79-1030-01)

$

$

Not available

11

Toro 933244

SPIROL PIN 3/8X1 1/2

$

$

Not available

12

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

13

Toro 120691

Quadrant
(Superseded to 120691-01)

$

$

Not available

14

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

16

Toro 118960

SHAFT-ROLLER
(Superseded to 118960-03)

$43.99

$

In Stock, only 3 left!

0

17

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

18

Toro 112730

CLIP-SPRING

$

$

Not available

19

Toro 111655

DECAL-HOC

$4.49

$

Usually ships in 3-6 days

0

21

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

23

Toro 78-0290

STOP-DECK R

$

$

Not available

24

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

26

Toro 66-6380

DECAL-DANGER

$8.99

$

Usually ships in 3-6 days

0

27

Toro 118730

Lock-Shaft
(Superseded to 118730-01)

$11.99

$

Usually ships in 3-6 days

0

28

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

29

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0
