78410 - Toro 38" Recycler Mower Deck (SN: 059000001 - 059999999) (1995) BAFFLE ASSEMBLY Parts Diagram

38" Recycler Mower Deck

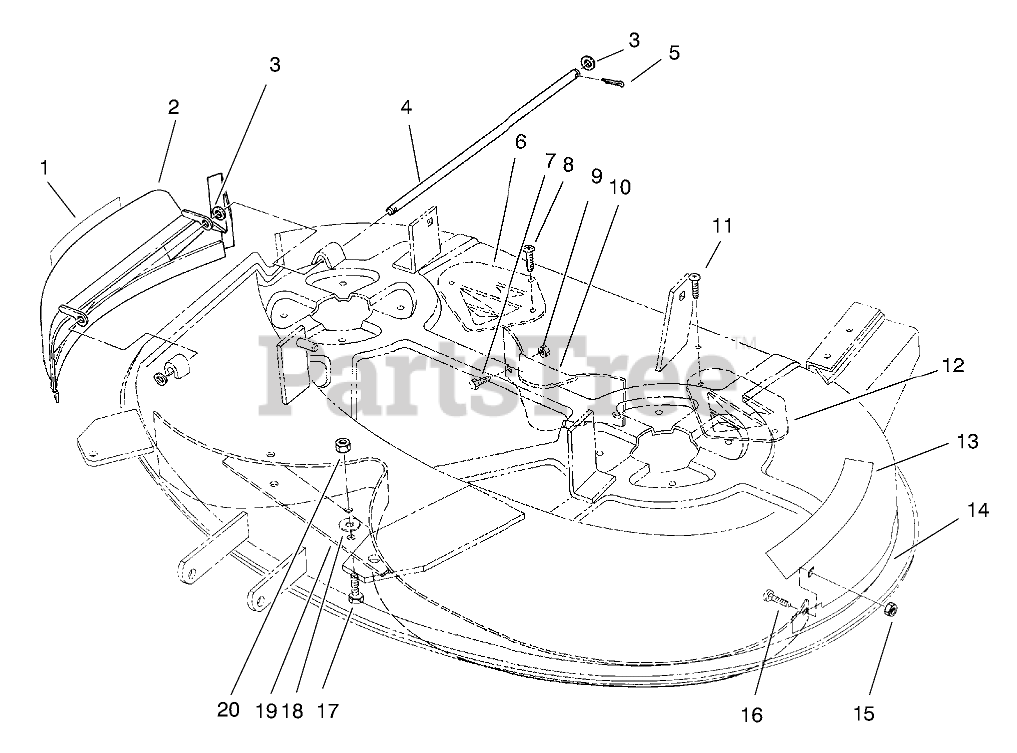

BAFFLE ASSEMBLY Parts Diagram

  • Title

1

Toro 93-7108

Decal-Danger

$

$

Currently unavailable

2

Toro 92-5787

Recycler Chute Assembly (Incl. Ref.# 1)

$

$

Not available

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 78-0820

ROD

$

$

Not available

5

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

6

Toro 80-4510

KICKER

$19.99

$

Usually ships in 3-6 days

0

7

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 11

0

9

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

10

Toro 79-1640

Baffle-Rear
(Superseded to 79-1640-03)

$69.99

$

Usually ships in 3-6 days

0

11

Toro 32104-130

#8 X .625" PHILPS PAN H

$1.99

$

Usually ships in 3-6 days

0

12

Toro 76-2160

PLATE-KICKER

$15.99

$

In Stock, Qty 5

0

13

Toro 79-3140

DECAL-DANGER

$19.99

$

Usually ships in 3-6 days

0

14

Toro 79-1311

DECAL-38" RECYCLER
(Superseded to 92-9520)

$49.99

$

Usually ships in 3-6 days

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

17

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

18

Toro 2844

WASHER

$2.99

$

In Stock, Qty 17

0

19

Toro 79-1600

Baffle-38"
(Superseded to 79-1600-03)

$109.99

$

Usually ships in 3-6 days

0

20

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0
