78410 - Toro 38" Recycler Mower Deck (SN: 049000001 - 049999999) (1994) SUSPENSION ASSEMBLY Parts Diagram

38" Recycler Mower Deck

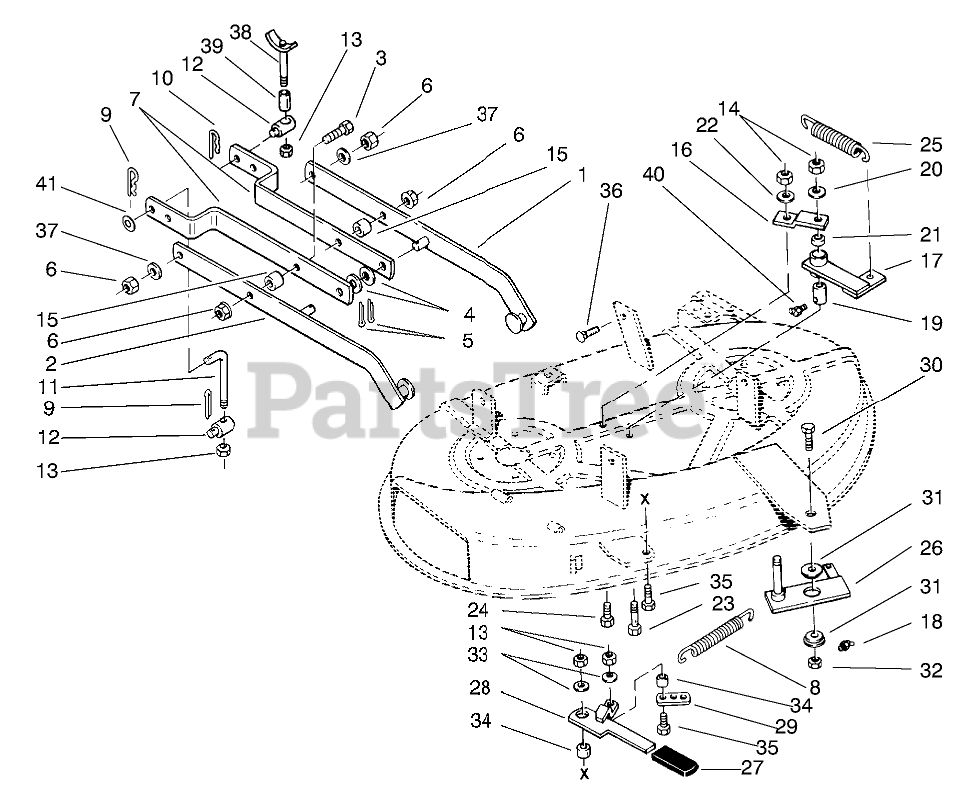

SUSPENSION ASSEMBLY Parts Diagram

  • Title
1

Toro 117071

Draft Bar LH
(Superseded to 117071-01)

$

$

Not available

2

Toro 117072

Draft Bar RH
(Superseded to 117072-01)

$

$

Not available

3

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

5

Toro 3272-22

PIN-COTTER

$0.99

$

In Stock, only 4 left!

0

6

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

7

Toro 120070

Bar-Leveler
(Superseded to 120070-01)

$

$

Not available

8

Toro 116167

Spring
(Superseded to 116167-01)

$

$

Not available

9

Toro 3272-6

PIN-COTTER

$0.99

$

In Stock, Qty 20+

0

10

Toro 9335044

PIN-HAIR

$1.49

$

In Stock, Qty 13

0

11

Toro 121010

ROD-LIFT

$25.99

$

Usually ships in 3-6 days

0

12

Toro 79-2790

TRUNNION

$43.99

$

Usually ships in 3-6 days

0

13

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

15

Toro 115706

SPACER

$29.99

$

Usually ships in 3-6 days

0

16

Toro 117086

Strap
(Superseded to 117086-01)

$

$

Not available

17

Toro 117083

Arm-Idler
(Superseded to 117083-01)

$

$

Not available

18

Toro 94-6852

FITTING GREASE

$

$

Not available

19

Toro 114512

SPACER-2.0 LG R

$

$

Not available

21

Toro 109859

BUSHING

$18.99

$

Usually ships in 3-6 days

0

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

24

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Toro 120580

SPRING

$

$

Not available

26

Toro 116368

Countershaft
(Superseded to 116368-01)

$

$

Not available

27

$9.49

$

In Stock, only 1 left!

0

28

Toro 117088

Lever
(Superseded to 117088-01)

$

$

Not available

29

Toro 117090

Link
(Superseded to 117090-01)

$

$

Not available

30

Toro 9002719

SCREW-CARR

$6.49

$

In Stock, only 1 left!

0

31

Toro 116621

BUSHING

$25.99

$

Usually ships in 3-6 days

0

32

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

33

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

34

Toro 4627

SPACER

$

$

Not available

35

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

36

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

37

Toro 115705

SPACER

$

$

Not available

38

Toro 116816

WLDMT-HANGER ROD

$

$

Not available

39

Toro 9791804

Spacer

$

$

Currently unavailable

40

Toro 302-26

FITTING-GREASE

$7.49

$

In Stock, only 1 left!

0

41

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
