78402 - Toro 52" Blower & Drive Kit, Titan HD 1500 or 2000 Mower (SN: 400000000 - 410142485) Blower Assembly No. 135-4482 Parts Diagram

52" Blower & Drive Kit, Titan HD 1500 or 2000 Mower

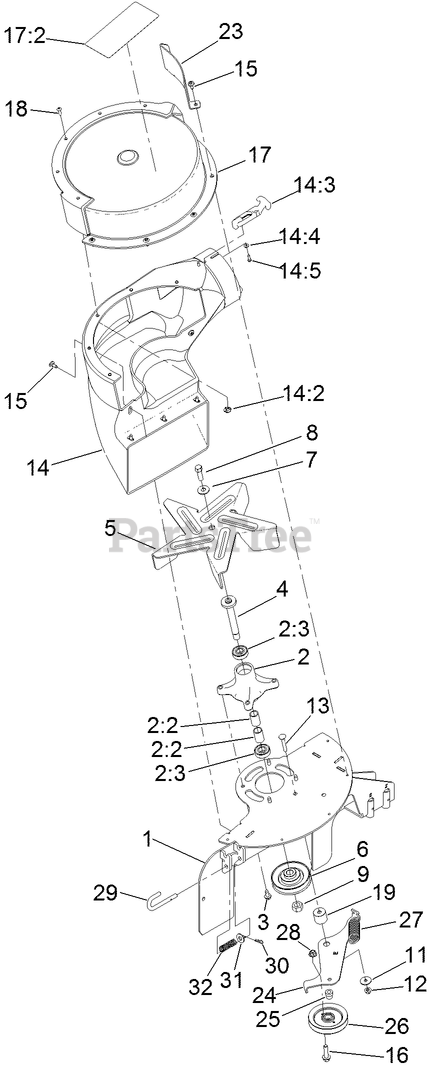

Blower Assembly No. 135-4482 Parts Diagram

  • Title
1

Toro 135-4483-03

SUPPORT-BLOWER

$317.99

$

Usually ships in 3-6 days

0

2

Toro 121-0751

SPINDLE ASM
(Superseded to 139-3214)

$78.99

$

In Stock, Qty 20+

0

2:2

Toro 120-7935

SPACER

$2.49

$

In Stock, Qty 20+

0

2:3

Toro 136-5441

BEARING-BALL

$7.99

$

In Stock, Qty 20+

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 137-7009

SHAFT - SPINDLE

$25.99

$

Usually ships in 3-6 days

0

5

Toro 133-4336

FAN-BLOWER

$

$

Currently unavailable

6

Toro 135-3436

SHEAVE-OFFSET

$53.99

$

Usually ships in 3-6 days

0

7

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

8

Toro 108-8823

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

9

Toro 3219-16

NUT-HEX

$7.49

$

Usually ships in 3-6 days

0

11

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

12

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 127-6841

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

0

14

Toro 135-5461

BLOWER CHUTE ASM

$290.99

$

Usually ships in 3-6 days

0

14:2

Toro 136-9187

INSERT-T-NUT

$1.99

$

Usually ships in 3-6 days

0

14:3

Toro 103-4080

LATCH-RUBBER

Note: Kit No. 103-4188 - Contains catch, rubber latch, and mounting hardware

$33.99

$

In Stock, Qty 5

0

14:4

Toro 9202704

WASHER-FLAT

$1.49

$

In Stock, Qty 8

0

14:5

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

15

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

16

Toro 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

17

Toro 137-5003

BLOWER COVER ASM

$210.99

$

Usually ships in 3-6 days

0

17:2

Toro 136-4164

DECAL-DANGER

$19.99

$

Usually ships in 3-6 days

0

18

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

19

Toro 135-4488

SPACER-STEPPED

$24.99

$

Usually ships in 3-6 days

0

23

Toro 136-9213-03

GUARD-BLOWER

$20.99

$

Usually ships in 3-6 days

0

24

Toro 135-4486

ARM-IDLER

$61.99

$

Usually ships in 3-6 days

0

25

Toro 1-653367

SPACER-HUB

$23.99

$

Usually ships in 3-6 days

0

26

Toro 103-0483

Flat-Idler

$53.99

$

In Stock, only 4 left!

0

27

Toro 1-653331

SPRING-IDLER

$12.99

$

In Stock, only 3 left!

0

28

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

29

Toro 116-4356

PIN-LATCH

$17.99

$

Usually ships in 3-6 days

0

30

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

31

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

32

Toro 121-3249

SPRING-COMPRESSION

$17.99

$

Usually ships in 3-6 days

0
