78400 - Toro 38" Side-Discharge Mower Deck (SN: 059000001 - 059999999) (1995) SPINDLE ASSEMBLY, IDLER PULLEYS & BELTS Parts Diagram

38" Side-Discharge Mower Deck

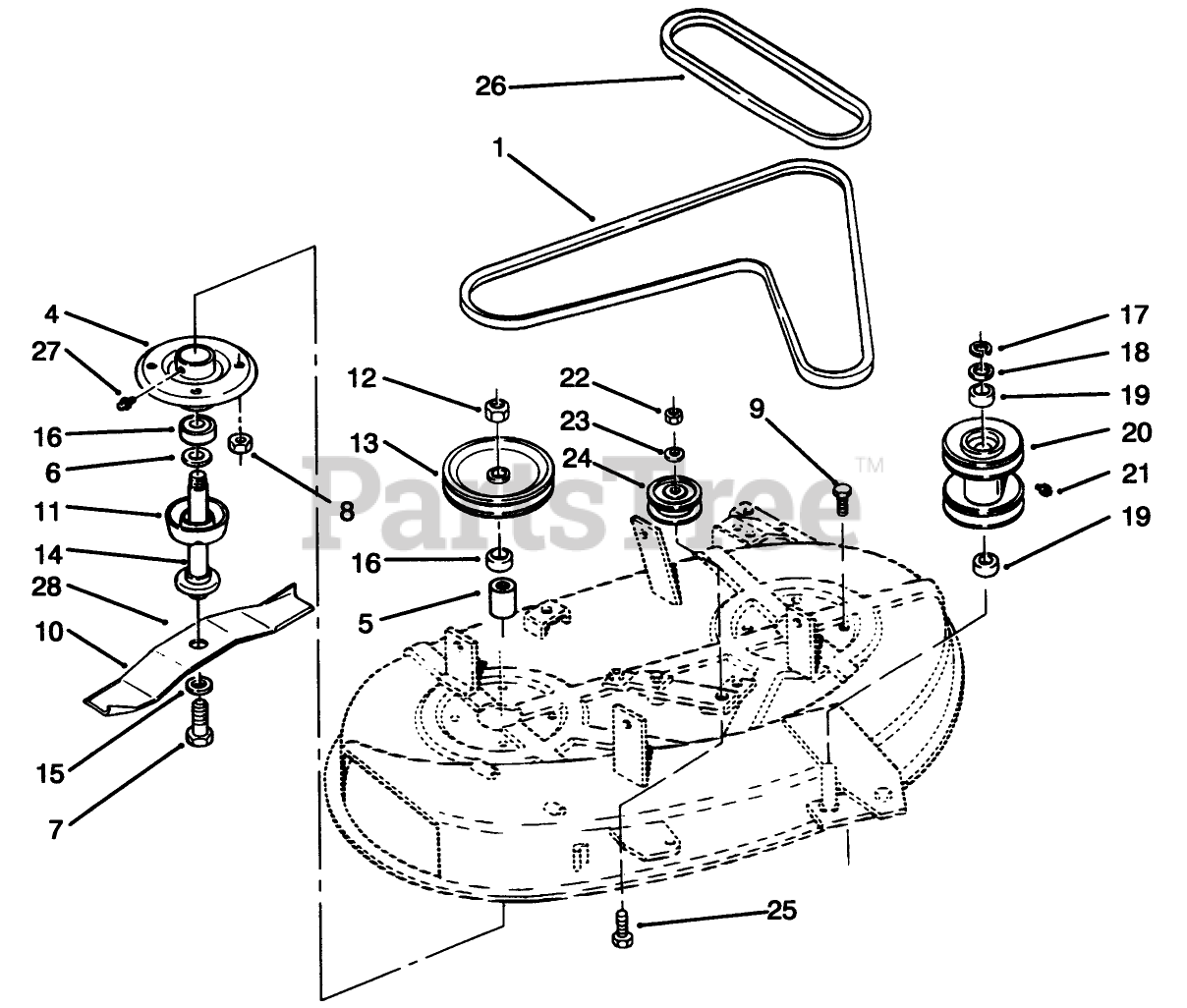

SPINDLE ASSEMBLY, IDLER PULLEYS & BELTS Parts Diagram

  • Title

1

Toro 116667

V-BELT

$63.99

$

Usually ships in 3-6 days

0

4

Toro 79-1050

Housing-Spindle
(Superseded to 79-1050-03)

$230.99

$

Usually ships in 3-6 days

0

5

Toro 79-2780

SPACER

$19.99

$

In Stock, only 1 left!

0

6

Toro 80-4390

SPACER-HARDNED

$3.99

$

Usually ships in 3-6 days

0

7

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 57-4700

Blade
(Superseded to 57-4700-03)

$37.99

$

In Stock, only 2 left!

0

11

Toro 80-4370

SHIELD-BEARING

$14.99

$

In Stock, only 1 left!

0

12

Toro 3219-7

NUT-HEX

$1.99

$

In Stock, Qty 10

0

13

Toro 79-3800

PULLEY

$114.99

$

Usually ships in 3-6 days

0

14

Toro 80-4352

SHAFT-SPINDLE

$278.99

$

Usually ships in 3-6 days

0

15

Toro 112843

WASHER

$3.49

$

In Stock, Qty 12

0

16

Toro 79-1090

BEARING-BALL
(Superseded to 251-318)

$17.99

$

In Stock, only 3 left!

0

17

Toro 105005

RETAINING RING

$

$

Not available

18

Toro 971015

O RING

$1.99

$

In Stock, Qty 6

0

19

Toro 109966

BEARING-BALL

$14.99

$

In Stock, Qty 15

0

20

Toro 116165

PULLEY-COUNTER SHAFT

$

$

Not available

21

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 112895

Pulley
(Superseded to 93-1622)

$42.99

$

In Stock, only 2 left!

0

25

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

26

Toro 116666

V-BELT

$

$

Not available

27

Toro 302-16

ZERK FITTING

$8.49

$

Usually ships in 3-6 days

0
