78390 - Toro 60" Side-Discharge Mower Deck (SN: 069000001 - 069999999) (1996) REAR GAGE WHEEL Parts Diagram

60" Side-Discharge Mower Deck

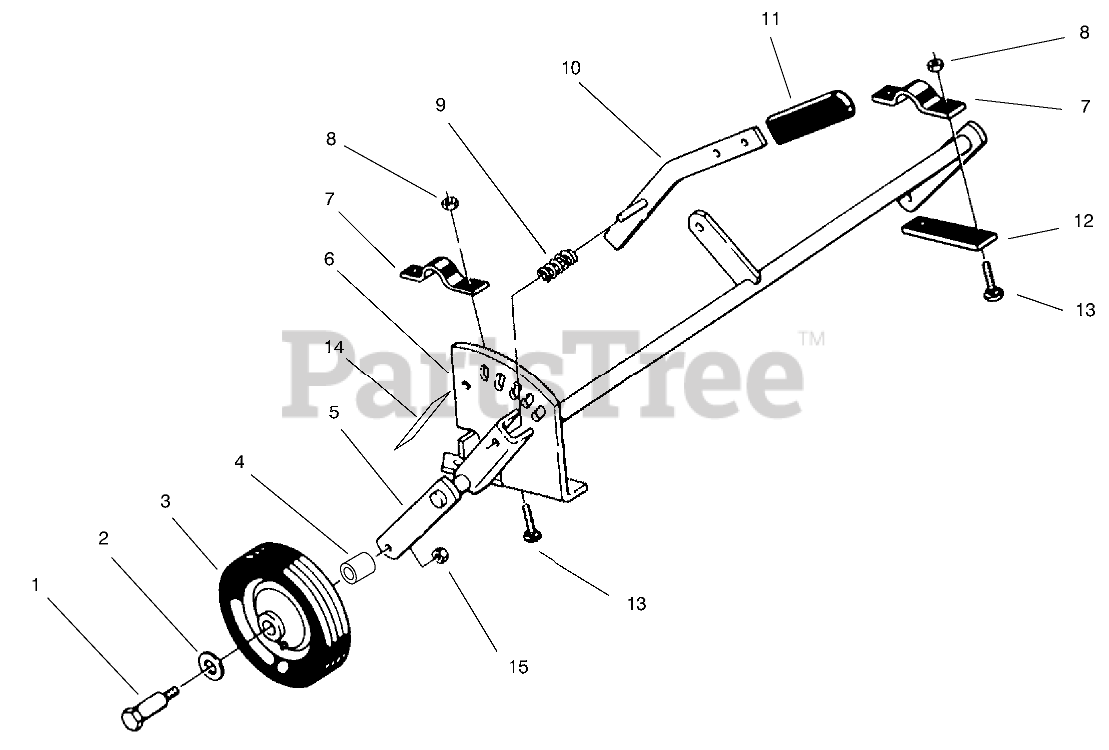

REAR GAGE WHEEL Parts Diagram

  • Title

1

Toro 323-15

SCREW-HH

$1.99

$

In Stock, only 4 left!

0

2

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

3

Toro 114275

ASSY-GAUGE WHEEL

$

$

Not available

4

Toro 109901

SPACER

$28.99

$

Usually ships in 3-6 days

0

5

Toro 113058

Gage Wheel Support
(Superseded to 113058-01)

$566.99

$

Usually ships in 3-6 days

0

6

Toro 121190

Quadrant
(Superseded to 121190-01)

$

$

Not available

7

Toro 113057

Clamp
(Superseded to 113057-03)

$

$

Not available

8

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

9

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

10

Toro 102431

Lever
(Superseded to 102431-01)

$

$

Not available

11

Toro 102597

GRIP

$2.49

$

Usually ships in 3-6 days

0

12

Toro 113056

BAR

$

$

Not available

13

Toro 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 14

0

14

Toro 111655

DECAL-HOC

$4.49

$

Usually ships in 3-6 days

0

15

Toro 32146-2

NUT-HEX
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0
